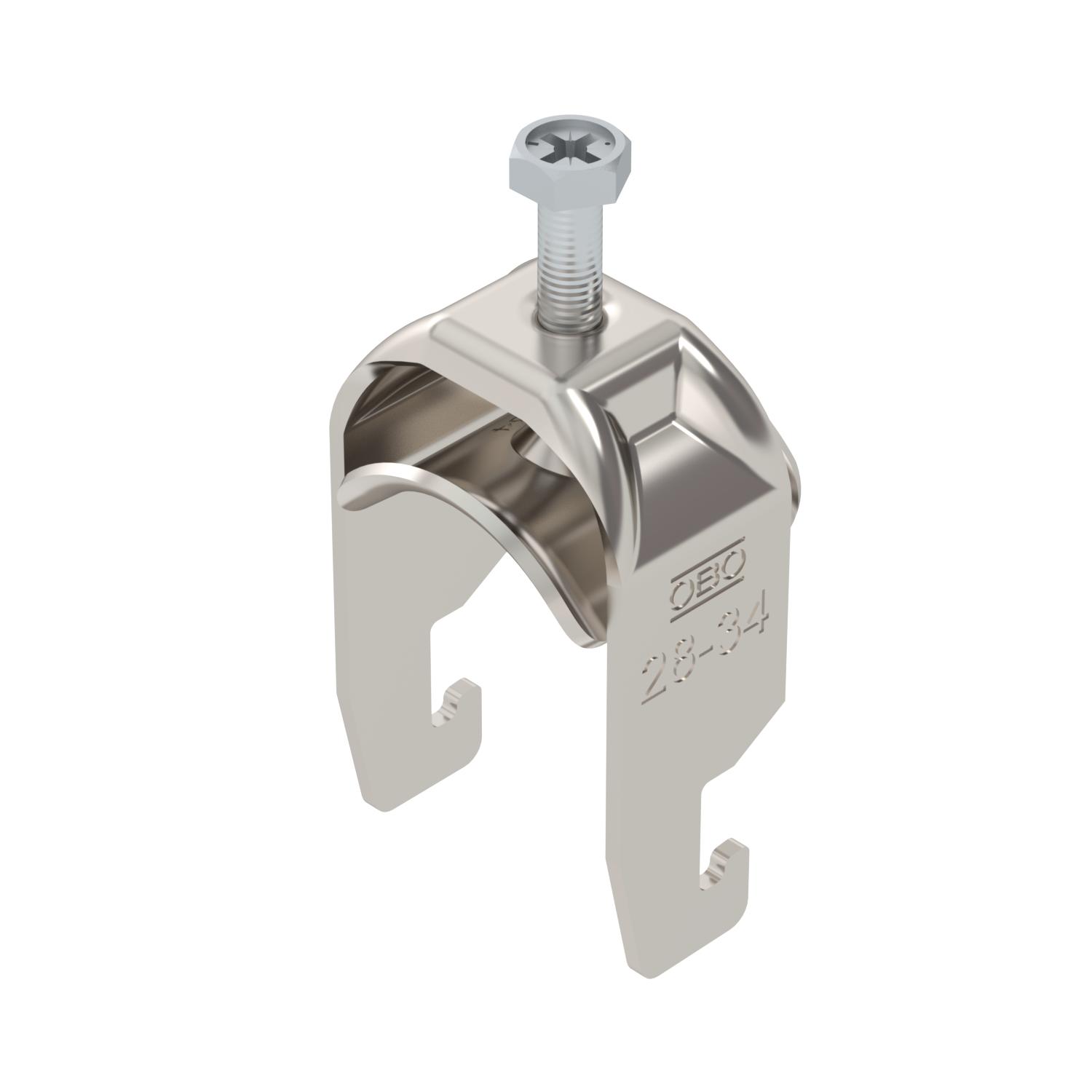

Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, A4
Item no. 1186629 | EAN 4012196850433
- Product description
-
Product descriptionClamp clip with U-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.
-
- Technical data
-
Technical data

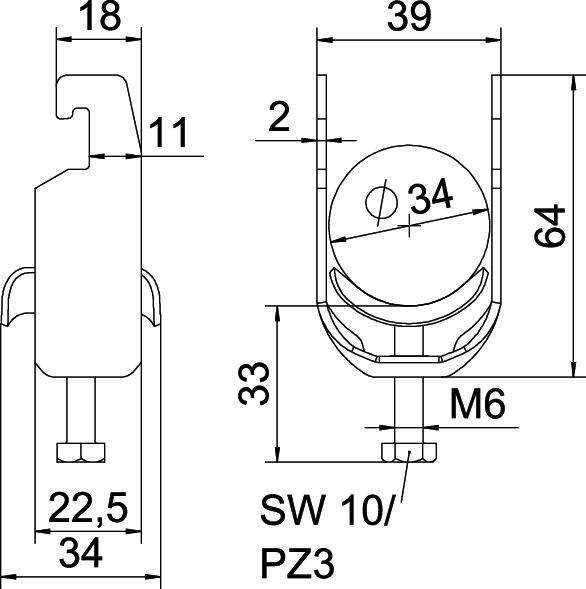

Clamping range D, max. 34 mm Clamping range D, min. 28 mm CO2 Footprint (GWP) Cradle-to-Gate 0,4113 kg CO₂e / 1 Piece Dimension 28-34mm Dimension A 22,5 mm Dimension B 39 mm Dimension C 34 mm Dimension G (mm) M6 Dimension H 64 mm Dimension L 34 mm Dimension t 2 mm For pipe diameter, max. 34 mm For pipe diameter, min. 28 mm for rail with slot width (with interval), max. 22 mm for rail with slot width (with interval), min. 18 mm Halogen-free yes Height 64 mm Length 22,5 mm Length of external dimensions 34 mm Material Stainless steel Material addition Rustproof steel Material of trough Rustproof steel Max. Tightening torque 3 Nm Mounting type Profile rail Number of cables/pipes 1 Plate thickness 2 mm Slot width 10 mm Surface Bright, treated Surface addition Untreated Thread M6 Width 39 mm With counter-trough no With metal trough yes - All types
-
All types
- Downloads
-
Data sheet BS-U1-M-34 A4 / 1186629 , 0.20MB , pdfEU declaration of conformity BS-U1-M-34 A4 / 1186629 , 0.10MB , pdfUK Declaration of Conformity BS-U1-M-34 A4 / 1186629 , 0.09MB , pdfREACH Declaration of conformity BS-U1-M-34 A4 / 1186629 , 0.12MB , pdfRoHS Declaration of conformity BS-U1-M-34 A4 / 1186629 , 0.12MB , pdfMounting instructions Clamp clip U foot, metal , 2.86MB , pdf
