Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, A4 52 | 58 | 5

Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, A4

Item no. 1186656 | EAN 4012196850600

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

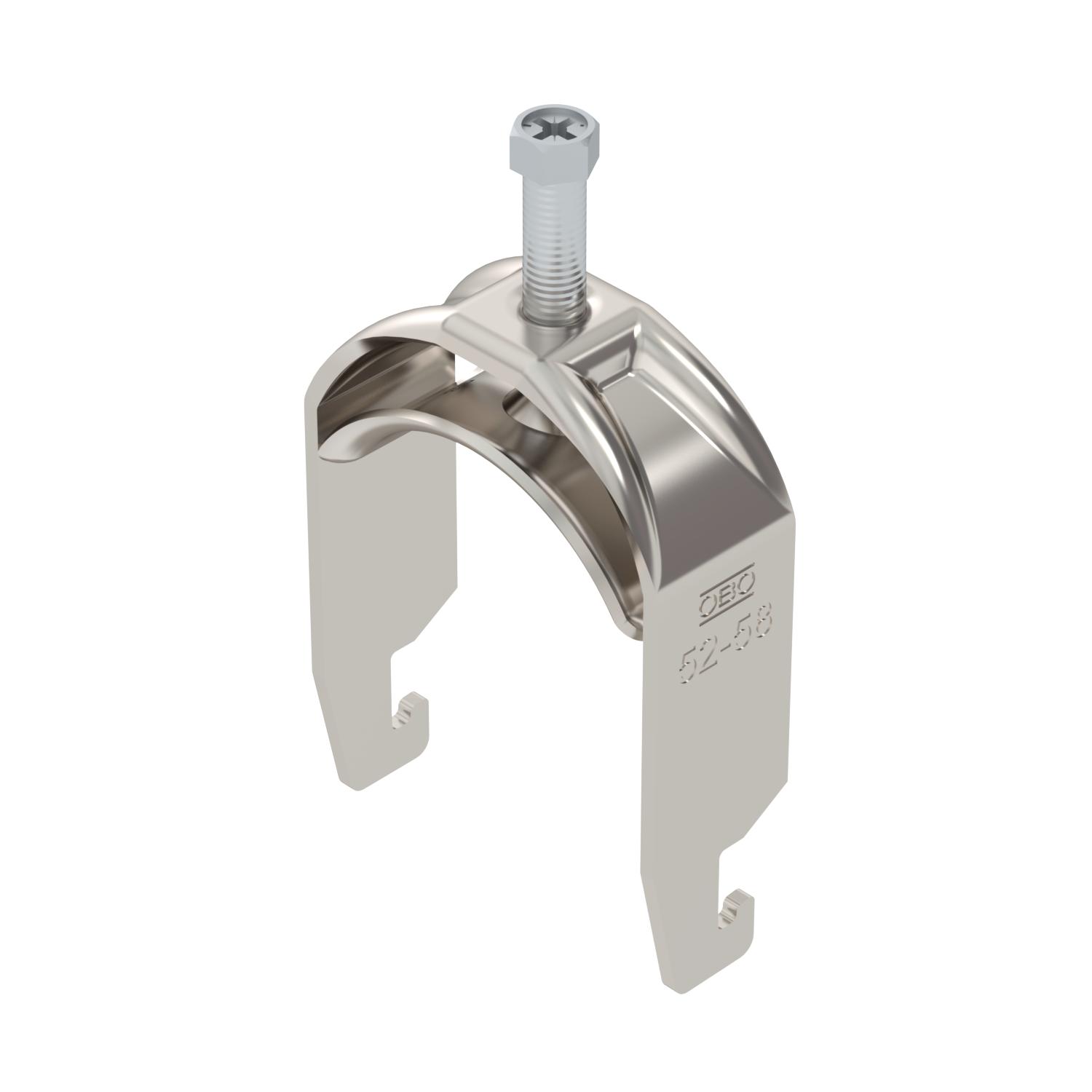

Clamp clip with U-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	58 mm
Clamping range D, min.	52 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,7243 kg CO₂e / 1 Piece
Dimension	52-58mm

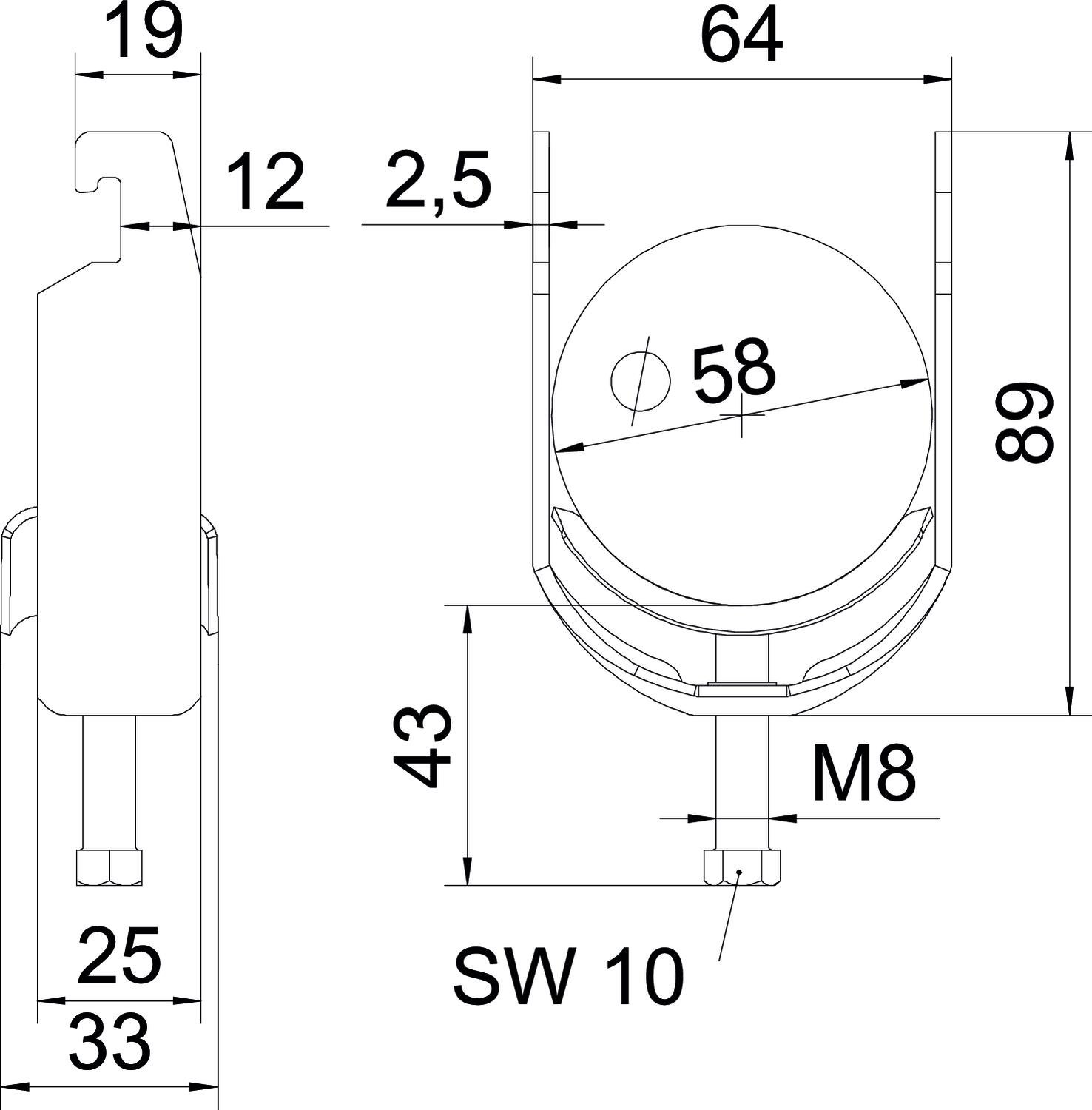

Dimension A	25 mm
Dimension B	64 mm
Dimension C	33 mm
Dimension G (mm)	M8
Dimension H	89 mm
Dimension L	43 mm
Dimension t	2,5 mm
For pipe diameter, max.	58 mm
For pipe diameter, min.	52 mm
for rail with slot width (with interval), max.	22 mm
for rail with slot width (with interval), min.	18 mm
Halogen-free	yes
Height	89 mm

Length	25 mm
Length of external dimensions	33 mm
Material	Stainless steel
Material addition	Rustproof steel
Material of trough	Rustproof steel
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	2,5 mm
Slot width	10 mm
Surface	Bright, treated
Surface addition	Untreated
Thread	M8
Width	64 mm
With counter-trough	no
With metal trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-U1-M-12 A4	8 mm	12 mm	3 Nm	1186602	piece	1 piece
BS-U1-M-16 A4	12 mm	16 mm	3 Nm	1186609	piece	1 piece
BS-U1-M-22 A4	16 mm	22 mm	3 Nm	1186616	piece	1 piece
BS-U1-M-28 A4	22 mm	28 mm	3 Nm	1186622	piece	1 piece
BS-U1-M-34 A4	28 mm	34 mm	3 Nm	1186629	piece	1 piece
BS-U1-M-40 A4	34 mm	40 mm	3 Nm	1186636	piece	1 piece
BS-U1-M-46 A4	40 mm	46 mm	5 Nm	1186642	piece	1 piece
BS-U1-M-52 A4	46 mm	52 mm	5 Nm	1186649	piece	1 piece
BS-U1-M-58 A4	52 mm	58 mm	5 Nm	1186656	piece	1 piece
BS-U1-M-64 A4	58 mm	64 mm	5 Nm	1186662	piece	1 piece
BS-U1-M-70 A4	64 mm	70 mm	5 Nm	1186669	piece	1 piece
BS-U1-M-76 A4	70 mm	76 mm	5 Nm	1186676	piece	1 piece
