Mesh cable tray GR-Magic® 55 A4

Item no. 6001088 | EAN 4012195166016

3000 mm
55 mm
Product description

Product description

Mesh cable tray with shaped connector of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • RINA 1861, Ship Classification, Certification and Services
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Function maintenance class E30
  • Function maintenance class E60
  • Function maintenance class E90
Technical data

Technical data

Connector version Integrated connector

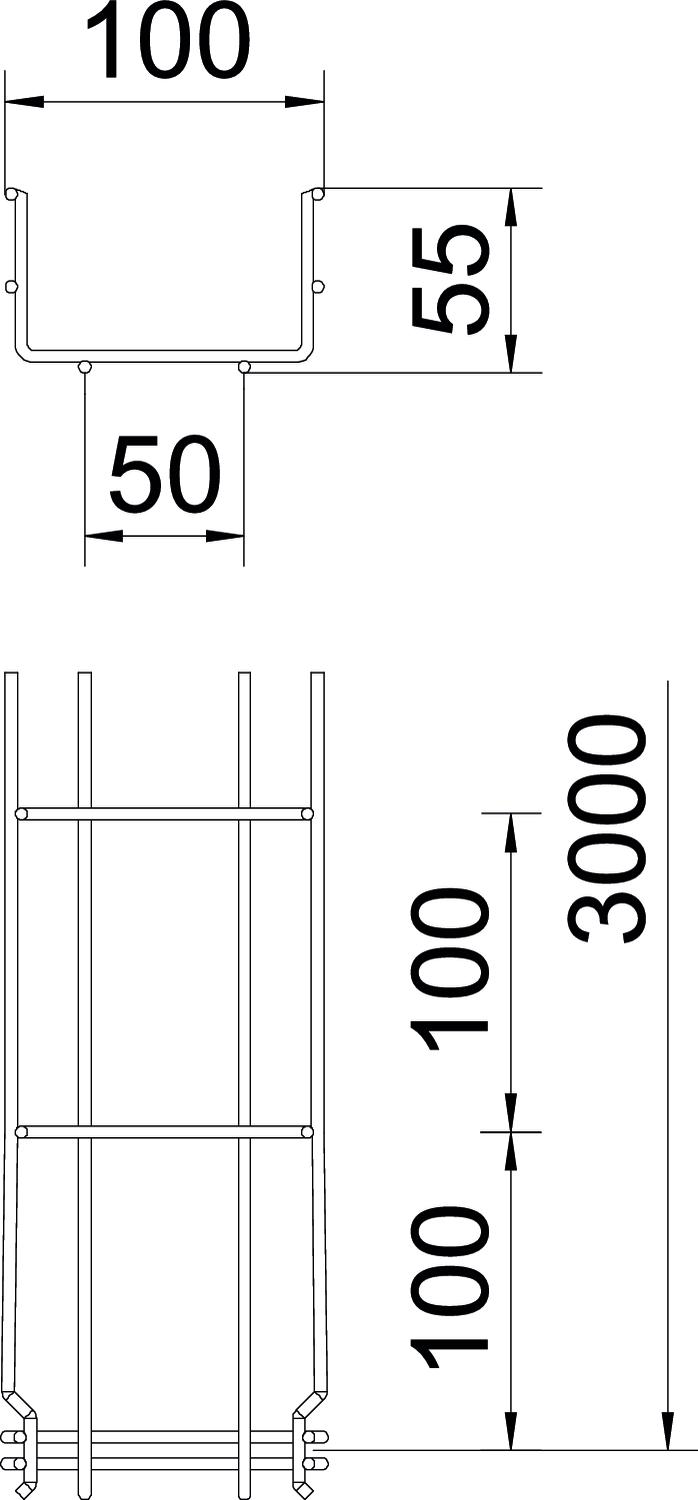

Dimension 55x100x3000
Fire protection Maintenance of electrical function of cable-specific support structure
Integrated partition Without
Load test type according to IEC 61537 Type II
Maintain electrical functions yes
Material Stainless steel
Profile shape U-shaped
Rustproof steel, pickled yes
Screwless connector yes
Surface Bright, treated
Type of connector, cable support system Click fastening
Usable cross-section 4000 mm²
Usable cross-section 40 cm²
Wide-span version no
Wire diameter 3,9 mm

Dimensions

Dimension B 100 mm
Dimension H 58 mm
Height 55 mm
Height 2,17 in
Length 3000 mm
Width 3,94 in
Width 100 mm

Loads

Support spacing 1.0 m 0,35 kN/m
Support spacing 1.5 m 0,2 kN/m
Support spacing 2.0 m 0,1 kN/m
Support spacing 2.5 m 0,1 kN/m

Technical data

Load diagram, mesh cable tray, type GRM 55 VA

Load diagram, mesh cable tray, type GRM 55 VA
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Height Wire diameter Usable cross-section Maintain electrical functions Item no. Quantity SSU
GRM 55 50 A4 3000 mm 50 mm 55 mm 3.9 mm 16 cm² yes 6001087
3 m
GRM 55 100 A4 3000 mm 100 mm 55 mm 3.9 mm 40 cm² yes 6001088
3 m
GRM 55 150 A4 3000 mm 150 mm 55 mm 3.9 mm 63 cm² yes 6001090
3 m
GRM 55 200 A4 3000 mm 200 mm 55 mm 3.9 mm 87 cm² yes 6001091
3 m
GRM 55 300 A4 3000 mm 300 mm 55 mm 4.8 mm 129 cm² yes 6001093
3 m
GRM 55 400 A4 3000 mm 400 mm 55 mm 4.8 mm 175 cm² yes 6001095
3 m
GRM 55 500 A4 3000 mm 500 mm 55 mm 4.8 mm 220 cm² no 6001097
3 m
GRM 55 600 A4 3000 mm 600 mm 55 mm 4.8 mm 265 cm² no 6001099
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Corner connector A4 Corner connector A4 GEV 36 A4 6016764
10 piece
Unperforated cover A4 Unperforated cover A4 DRLU 100 A4 6052991
3 m

Mounting accessories

Products Types Item no. Quantity SSU
Separating retainer 45 A4 Separating retainer 45 A4 TSG 45 A4 6062028
3 m
