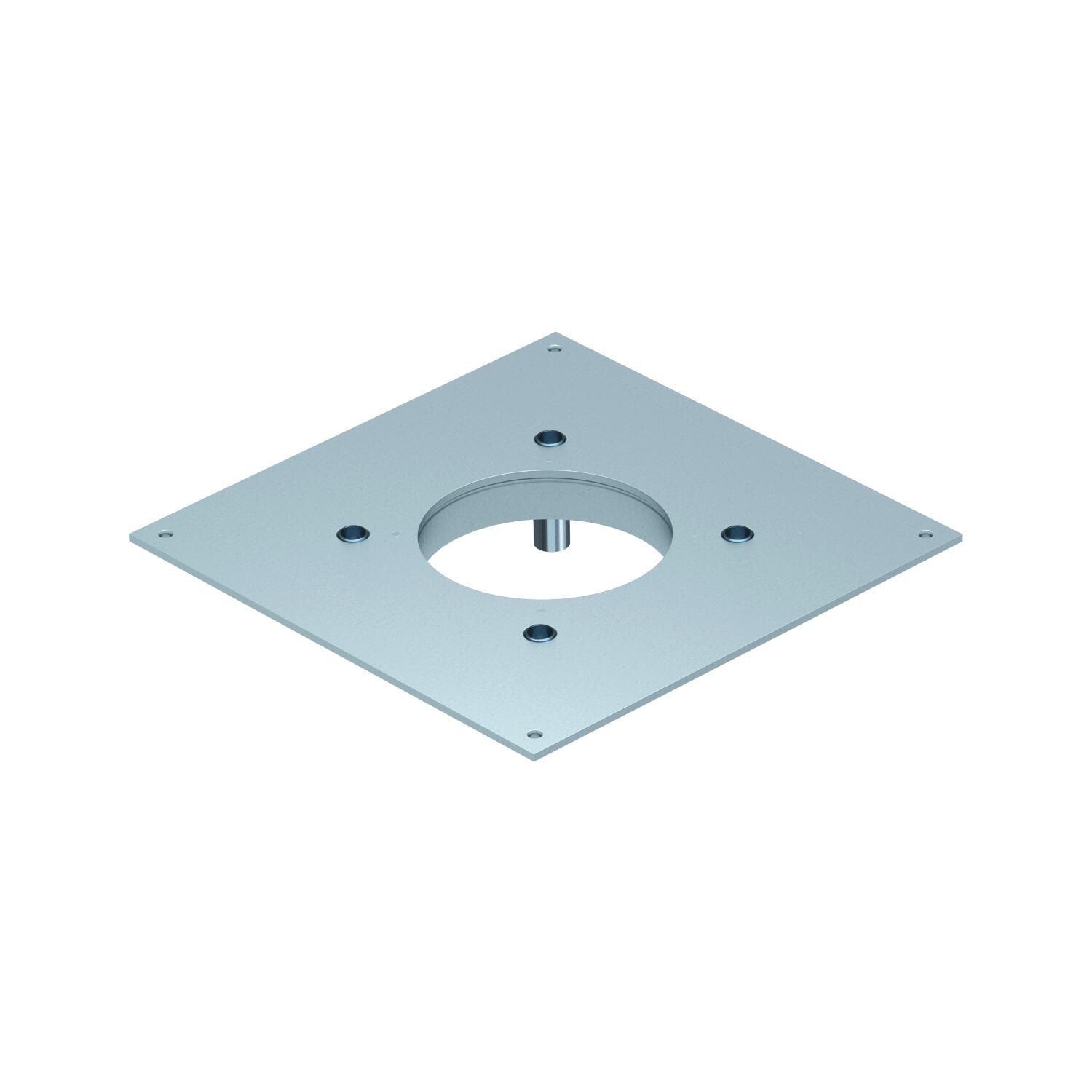

Heavy-duty mounting lid for UZD 250, nominal size GES R2
Item no. 7410002 | EAN 4012197400989
- Product description
-
Product descriptionThe heavy-duty mounting lid for the UZD250 underfloor box is suitable for the installation of a floor socket GES R2. The installation opening is recessed by 3 mm and can be closed subsequently by a lid blanking plate.
-
- Technical data
-
Technical data

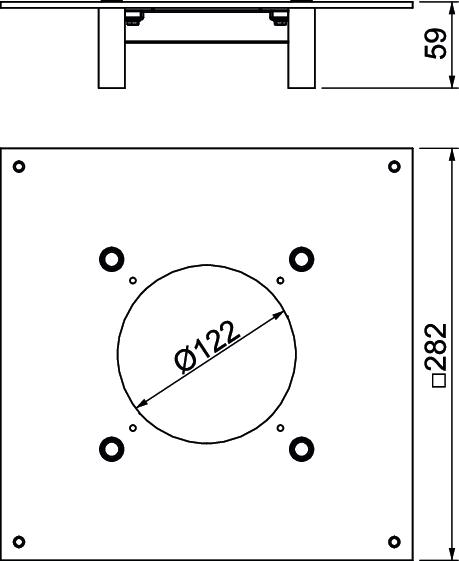

CO2 Footprint (GWP) Cradle-to-Gate 7,9547 kg CO2e / 1 Piece Dimension 282x282x59 Dimension A 282 mm Dimension d Ø 215 mm Floor care Dry Heavy-duty version yes Installation opening for on-floor tank no Length 282 mm Material Steel Material thickness 4 mm Mounting opening Round Mounting opening cover no Nominal size 250 mm Nominal size for device installation units R4 Seal installation option no Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Surface Strip galvanized Width 282 mm - All types
- Downloads
-
Data sheet DUG 250-3 R2SL / 7410002 , 0.15MB , pdfEU declaration of conformity DUG 250-3 R2SL / 7410002 , 0.11MB , pdfNo invitation to tender text is available for this product.
