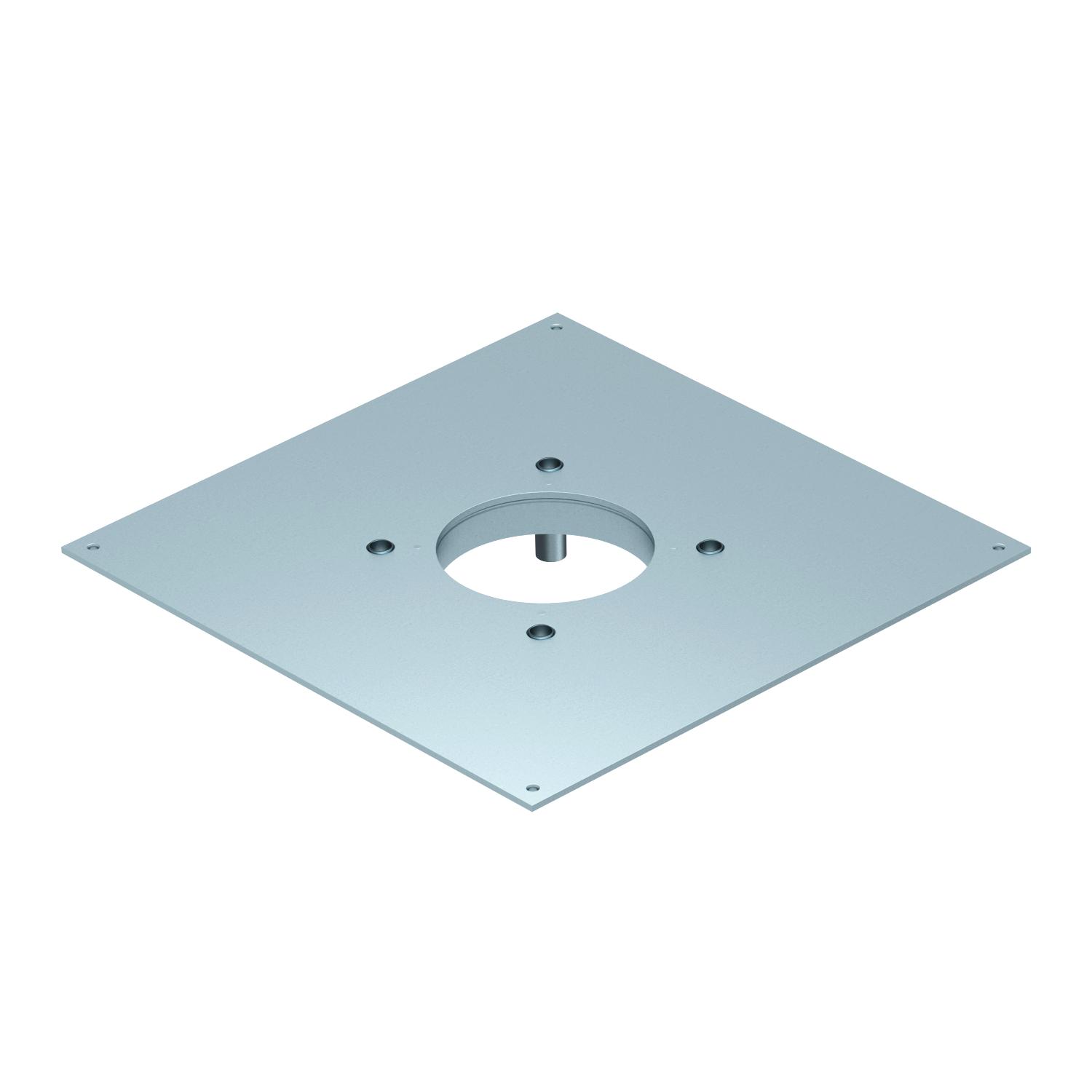

Heavy-duty mounting lid for 350, nominal size GES R2 Round

Heavy-duty mounting lid for 350, nominal size GES R2

Item no. 7410004 | EAN 4012197401009

Item no. / Types

Mounting opening	Round

Product description

Product description

The heavy-duty mounting lid for the UZD350 underfloor box is suitable for the installation of a floor socket GES R2. The installation opening is recessed by 3 mm and can be closed subsequently by a lid blanking plate.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	16,8656 kg CO2e / 1 Piece

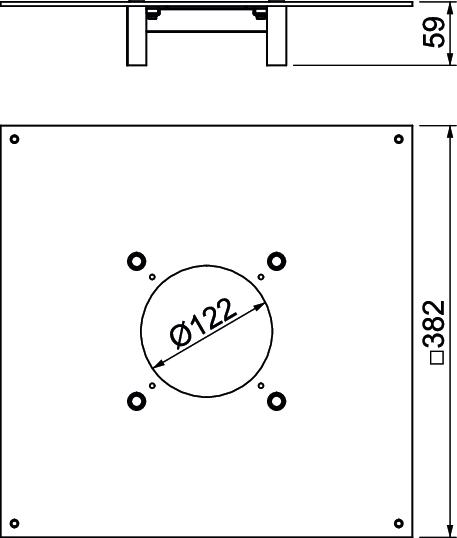

Dimension	383x383x59
Dimension A	383 mm
Dimension d Ø	215 mm
Floor care	Dry
Heavy-duty version	yes
Installation opening for on-floor tank	no
Length	383 mm
Material	Steel
Material thickness	4 mm

Mounting opening	Round
Mounting opening cover	no
Nominal size	350 mm
Nominal size for device installation units	R4
Seal installation option	no
Suitable for screed-covered underfloor ducts	yes
Suitable for screed-flush closed underfloor ducts	no
Surface	Strip galvanized
Width	383 mm
