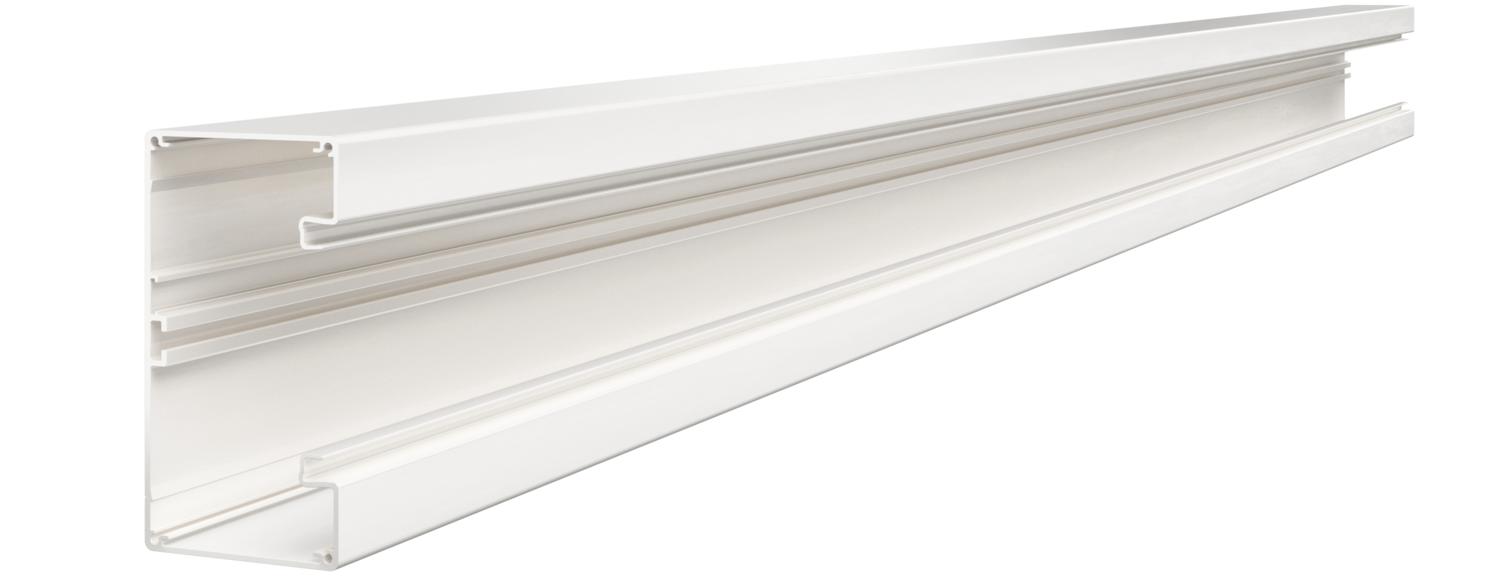

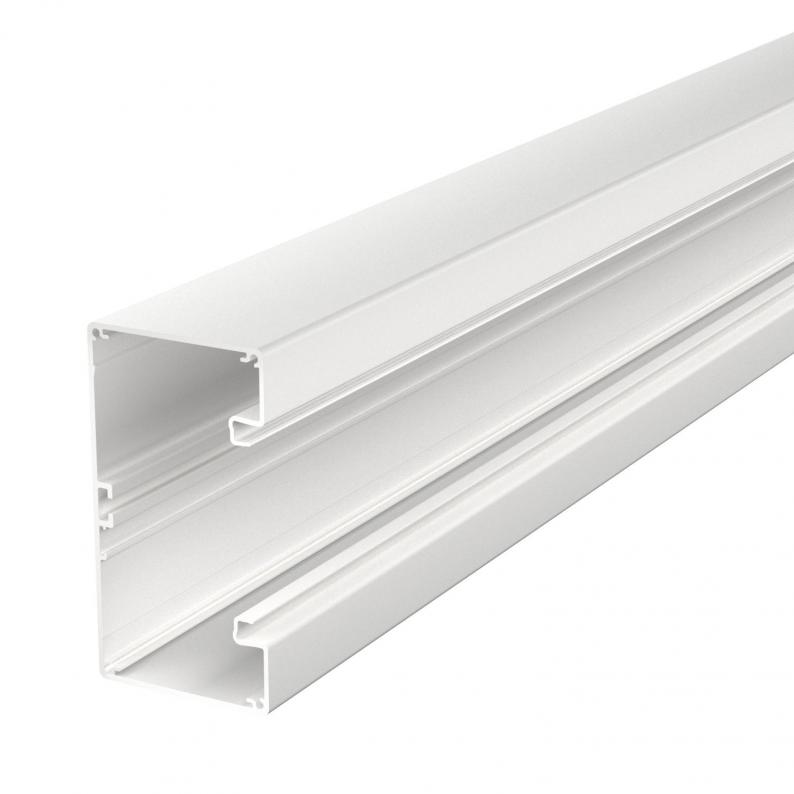

Device installation trunking Rapid 80, trunking width 130, trunking height 70, symmetrical

Type GA-S70130RW

Item no. 6279300

EAN 4012195768364

Data sheet (PDF)

Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

Length

Smallest selling unit: 2 m

Description Technical data Downloads Accessories Variants

Description

Device installation trunking Without base perforation suitable for direct wall mounting or mounting on panels. Over-lengths up to 6,000 mm for trunking bases and covers as well as other RAL colours can be provided on request. The visible surfaces of the device installation trunking are laminated.
Note:
For anodised device installation trunking and fittings made from aluminium, light colour differences caused by tolerance based on the material and process conditions, cannot be avoided (according to DIN 17 611). Alternatively, we recommend powder coating in the colour RAL 9006 (white aluminium).

The cover must be ordered separately. We recommend the use of the duct clamp.

Technical data

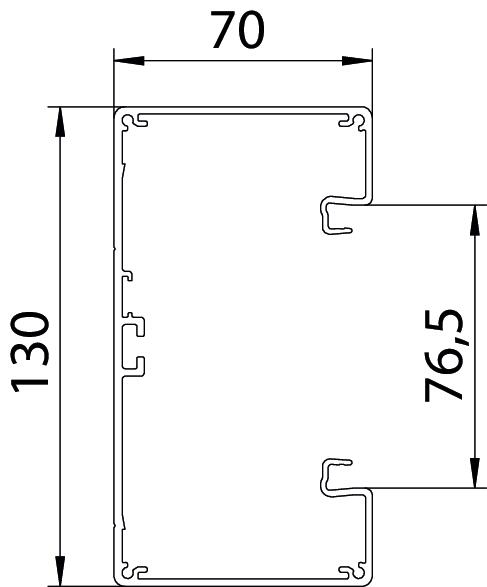

Dimensions

Length	2000 mm
Width	130 mm
Height	70 mm

Technical data

Mounting perforation in base	no
Usable cross-section	6480 mm²
Halogen-free	yes
Number of insertable partitions	1
Cable retaining clip	no
Protective film	yes
Duct connector	no
Protection rating	IP30
Symmetrical	yes
Rectangular shape	yes
Number of covers	1
Rear panel version (inner side)	Continuous C profile
Cover mounting type	Internal
Protection rating IK code	IK10
Cover supplied	no
Base perforation	Without base perforation
Cover width	76,5 mm
Permitted temperature range, min.	-25 °C
Permitted temperature range, max.	60 °C
Dimension	70x130x2000
Material	Aluminium
Colour	Pure white; RAL 9010
Antibacterial treatment	no
CO2 Footprint (GWP) Cradle-to-Gate	28,2818 kg CO2e / 1 Meter
