Coupling GA-KUP70
Type GA-KUP70
|Item no. 6279701
|EAN 4012195769989
Item no. / Type
6279701 / GA-KUP70
Smallest selling unit: 1 PU
1PU
PU
Description
Joint connector for connecting the bases of Rapid 80 GA aluminium device installation trunking.

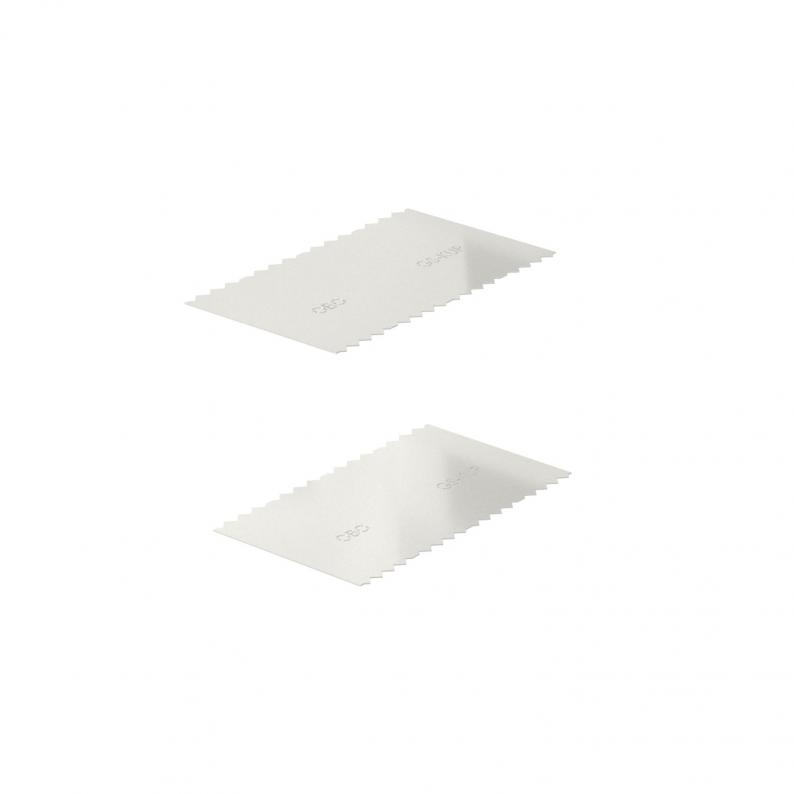

The scope of delivery of a coupling includes 2 connection plates.
The scope of delivery of a coupling includes 2 connection plates.
Technical data
Dimensions
| Length | 120 mm |
|---|---|
| Width | 64 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protection rating | IP30 |
| With equipotential bonding | yes |
| Protection rating IK code | IK10 |
| Version for | Universal |
| Type | coupling |
| Trunking depth | 70 mm |
| Permitted temperature range, min. | -25 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 64x120 |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3147 kg CO2e / 2 Piece |
