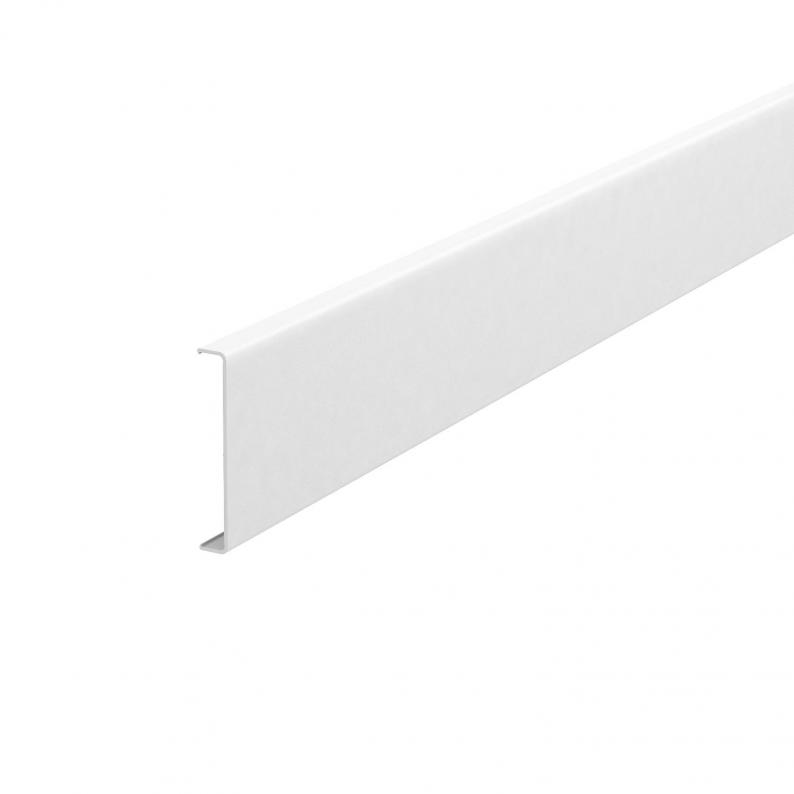

Aluminium trunking cover
Type GA-OTRW
|Item no. 6279720
|EAN 4012195770084
Item no. / Type
Length
Colour
Smallest selling unit: 2 m
2m
m
Description
Aluminium cover, for closing Rapid GA device installation trunking and ISS service poles with a 76.5 mm system opening. The firm position of the cover and electrical contact to the lower part of the trunking and service pole is guaranteed thanks to type RKV3V locking brackets. There are 6 pre-mounted locking brackets included per delivery length (2,000 mm).
Technical data

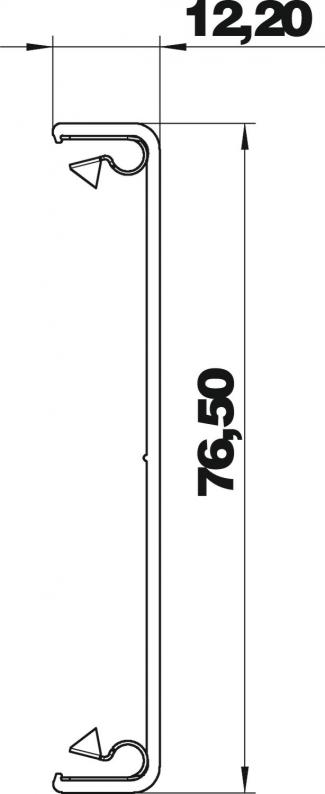

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 76,5 mm |
| Height | 12 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protective film | yes |
| Protection rating | IP30 |
| Cover mounting type | Internal |
| Protection rating IK code | IK10 |
| Version for | Smooth |
| Permitted temperature range, min. | -25 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 12x76,5x2000 |
| Material | Aluminium |
| Colour | Pure white; RAL 9010 |
| Antibacterial treatment | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,9227 kg CO2e / 1 Meter |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Length
Colour
Item no.
GA-OTRW
2000
Pure white; RAL 9010
6279720
GA-OTEL
2000
aluminium
6279723
Colour
GA-OTRW
Item no.
6279720
Length
2000
Colour
Pure white; RAL 9010
GA-OTEL
Item no.
6279723
Length
2000
Colour
aluminium
