7ZE strain relief
Type 7ZE
|Item no. 6288790
|EAN 4012195149460
Item no. / Type
6288790 / 7ZE
Smallest selling unit: 50 piece
50piece
piece
Description
Strain relief with locking clips, suitable for the accessory mounting boxes 7GD... and 71GD... .
Cable clamping range to 14 mm.
Cable clamping range to 14 mm.
Technical data

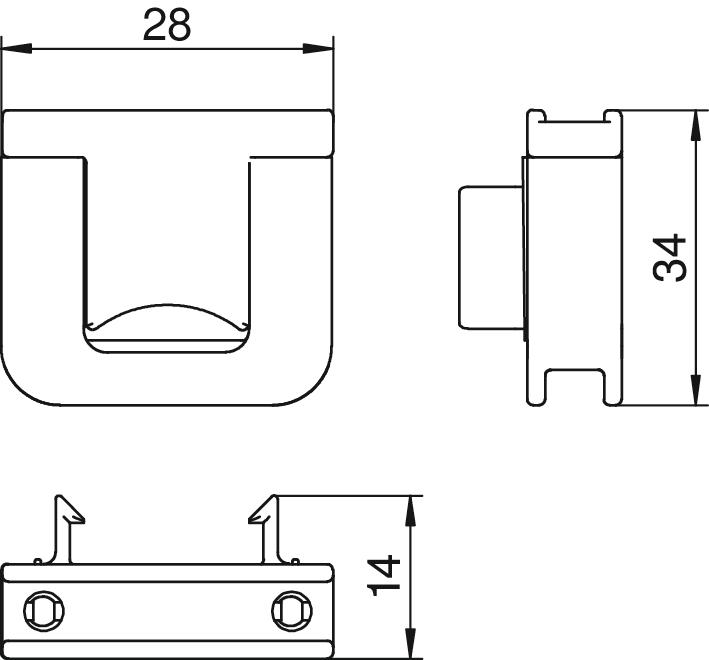

Dimensions
| Length | 34 mm |
|---|---|
| Width | 28 mm |
| Height | 14 mm |
Technical data
| Strain relief option | yes |
|---|---|
| Fastening type | Screw-on |
| Suitable for | Mounting box |
| Dimension | 28x34x14 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
| Accessories | yes |
| Spare part | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,036 kg CO2e / 1 Piece |
