Note: This article is discontinued.

Clamp clip, single, metal pressure trough, round profiles/pipes 58 | 64 | 5

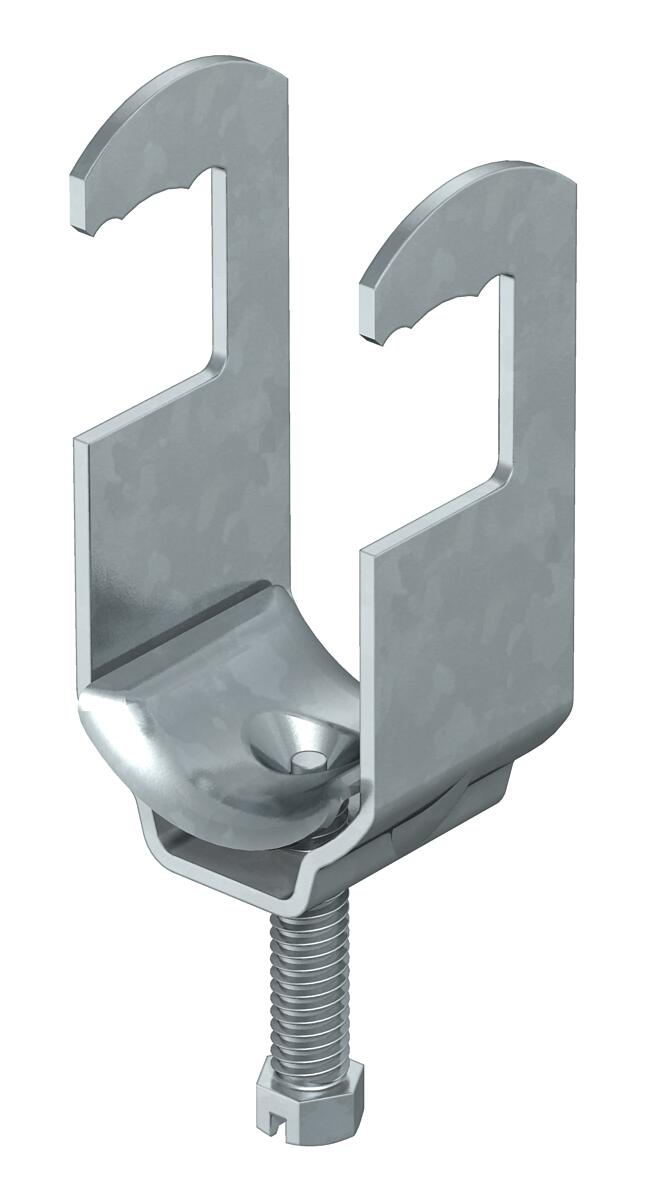

Clamp clip, single, metal pressure trough, round profiles/pipes

Item no. 1158337 | EAN 4012195358534

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Suitable for all round profile irons or pipes of diameters to 22 mm; clip, pressure trough and bolt made of steel, hot-dip galvanised;
the metal troughs have strongly rounded edges on all sides, so that no damage to the cables need be feared.

Technical data

Technical data

Clamping range D, max.	64 mm
Clamping range D, min.	58 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,3759 kg CO₂e / 1 Piece

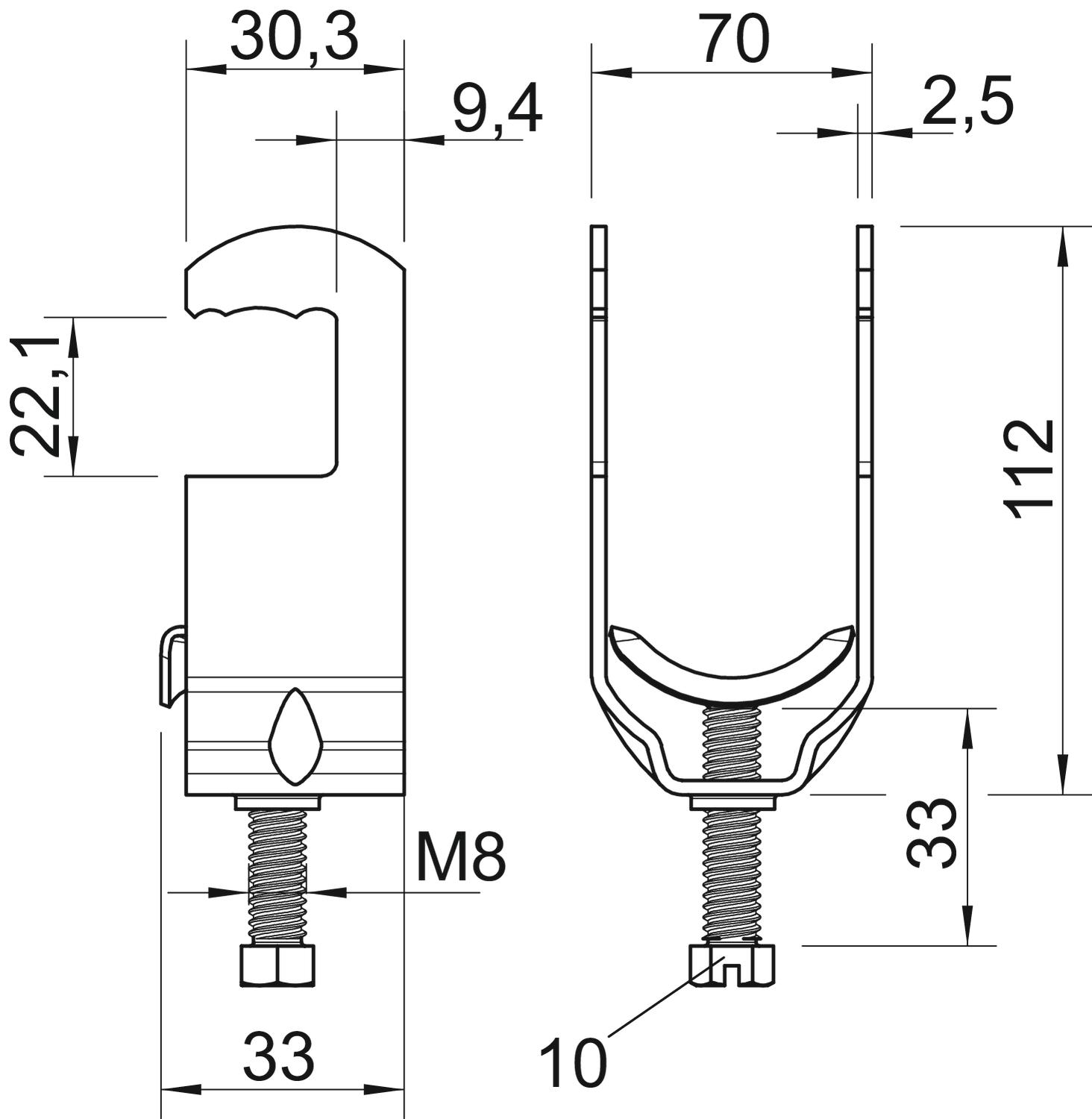

Dimension	58-64mm
Dimension B	70 mm
Dimension C	33 mm
Dimension G (mm)	M8
Dimension H	112 mm
Dimension L	33 mm
Dimension t	2,5 mm
For pipe diameter, max.	63 mm
For pipe diameter, min.	63 mm
Halogen-free	no

Impact-resistant	no
Material	Steel
Material addition	Steel
Material of trough	Steel
Max. Tightening torque	5 Nm
Mounting type	Round profile
Number of cables/pipes	1
Surface	Hot-dip galvanised
Surface addition	hot galvanised
With counter-trough	no
With metal trough	yes
With plastic trough	no

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
2056RS M 16 FT	12 mm	16 mm	3 Nm	1158305	piece	100 piece
2056RS M 22 FT	16 mm	22 mm	3 Nm	1158309	piece	100 piece
2056RS M 34 FT	28 mm	34 mm	5 Nm	1158317	piece	100 piece
2056RS M 52 FT	46 mm	52 mm	5 Nm	1158329	piece	100 piece
2056RS M 58 FT	52 mm	58 mm	5 Nm	1158333	piece	100 piece
2056RS M 64 FT	58 mm	64 mm	5 Nm	1158337	piece	100 piece
