Note: This article is discontinued.
Clamp clip, single, metal pressure trough, round profiles/pipes
Item no. 1158329 | EAN 4012195358497
- Product description
-
Product descriptionSuitable for all round profile irons or pipes of diameters to 22 mm; clip, pressure trough and bolt made of steel, hot-dip galvanised;
the metal troughs have strongly rounded edges on all sides, so that no damage to the cables need be feared.
-
- Technical data
-
Technical data

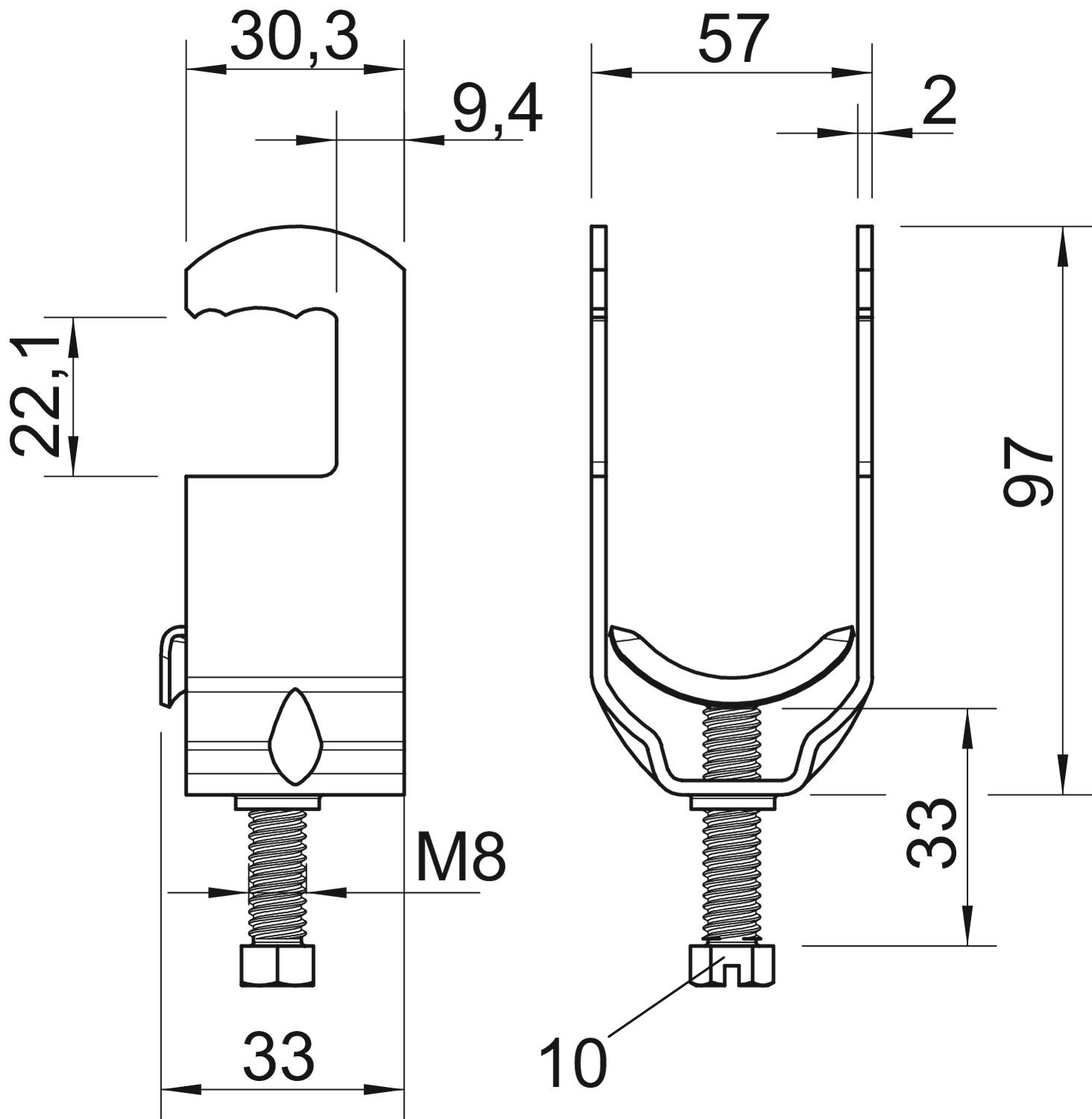

Clamping range D, max. 52 mm Clamping range D, min. 46 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,2645 kg CO₂e / 1 Piece Dimension 46-52mm Dimension B 57 mm Dimension C 33 mm Dimension G (mm) M8 Dimension H 97 mm Dimension L 33 mm Dimension t 2 mm For pipe diameter, max. 50 mm For pipe diameter, min. 50 mm Halogen-free no Impact-resistant no Material Steel Material addition Steel Material of trough Steel Max. Tightening torque 5 Nm Mounting type Round profile Number of cables/pipes 1 Surface Hot-dip galvanised Surface addition hot galvanised With counter-trough no With metal trough yes With plastic trough no - All types
-
All types
- Downloads
-
Catalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 2056RS M 52 FT / 1158329 , 0.10MB , pdfREACH Declaration of conformity 2056RS M 52 FT / 1158329 , 0.12MB , pdfRoHS Declaration of conformity 2056RS M 52 FT / 1158329 , 0.12MB , pdf
