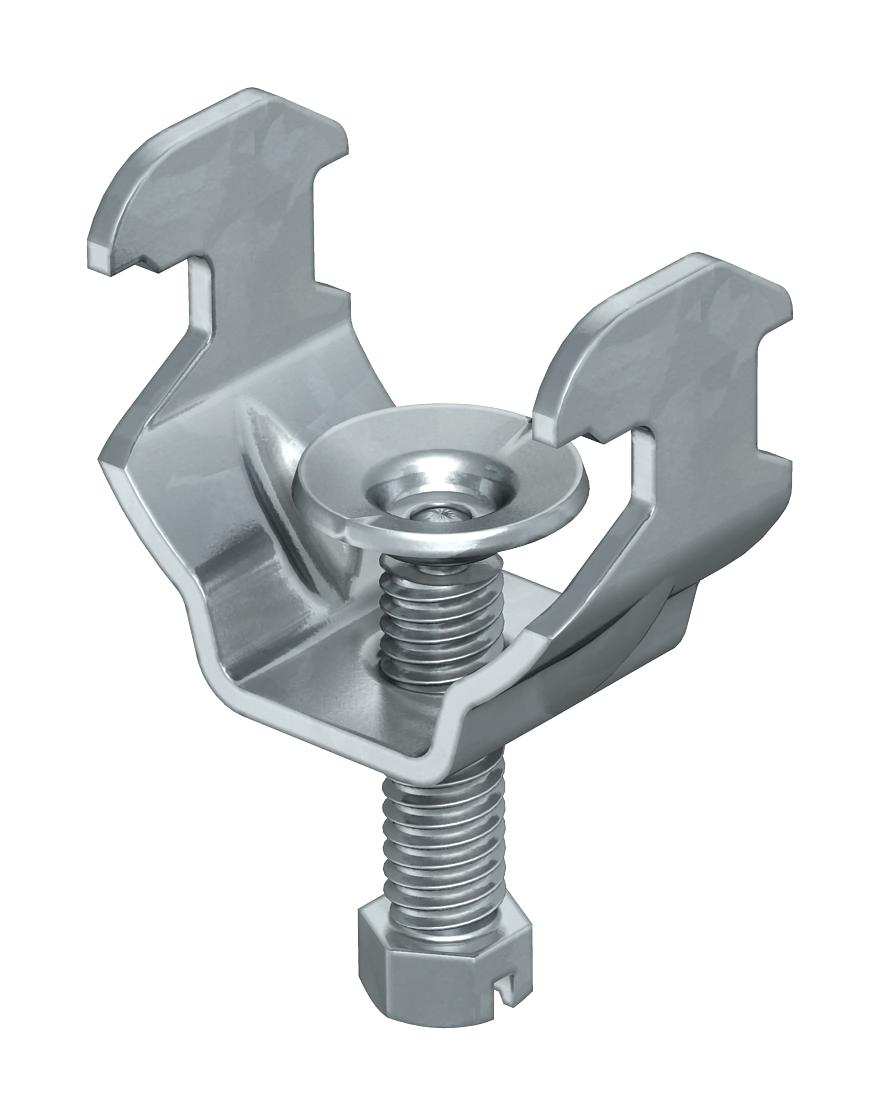

Clamp clip, fastening earthing strips
Item no. 1174053 | EAN 4012195072492
- Product description
-
Product descriptionTo fasten earthing strips with widths of up to 30 mm to profile rails, suitable for all
C profile rails with 16–17 mm slot width.
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 0,1457 kg CO₂e / 1 Piece Dimension 30mm for rail with slot width (with interval), max. 17 mm for rail with slot width (with interval), min. 16 mm Halogen-free no Impact-resistant no Material Steel Material addition Steel Max. Tightening torque 5 Nm Mounting type Profile rail Surface Hot-dip galvanised Surface addition hot galvanised With counter-trough no With metal trough no With plastic trough no - All types
- Downloads
-
Data sheet 2056 BE FT / 1174053 , 0.16MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 2056 BE FT / 1174053 , 0.10MB , pdfREACH Declaration of conformity 2056 BE FT / 1174053 , 0.12MB , pdfRoHS Declaration of conformity 2056 BE FT / 1174053 , 0.13MB , pdf
