Clamp clip 2056 U-foot, 3-fold, plastic pressure sleeve, AI
Item no. 1186904 | EAN 4012196851799
- Product description
-

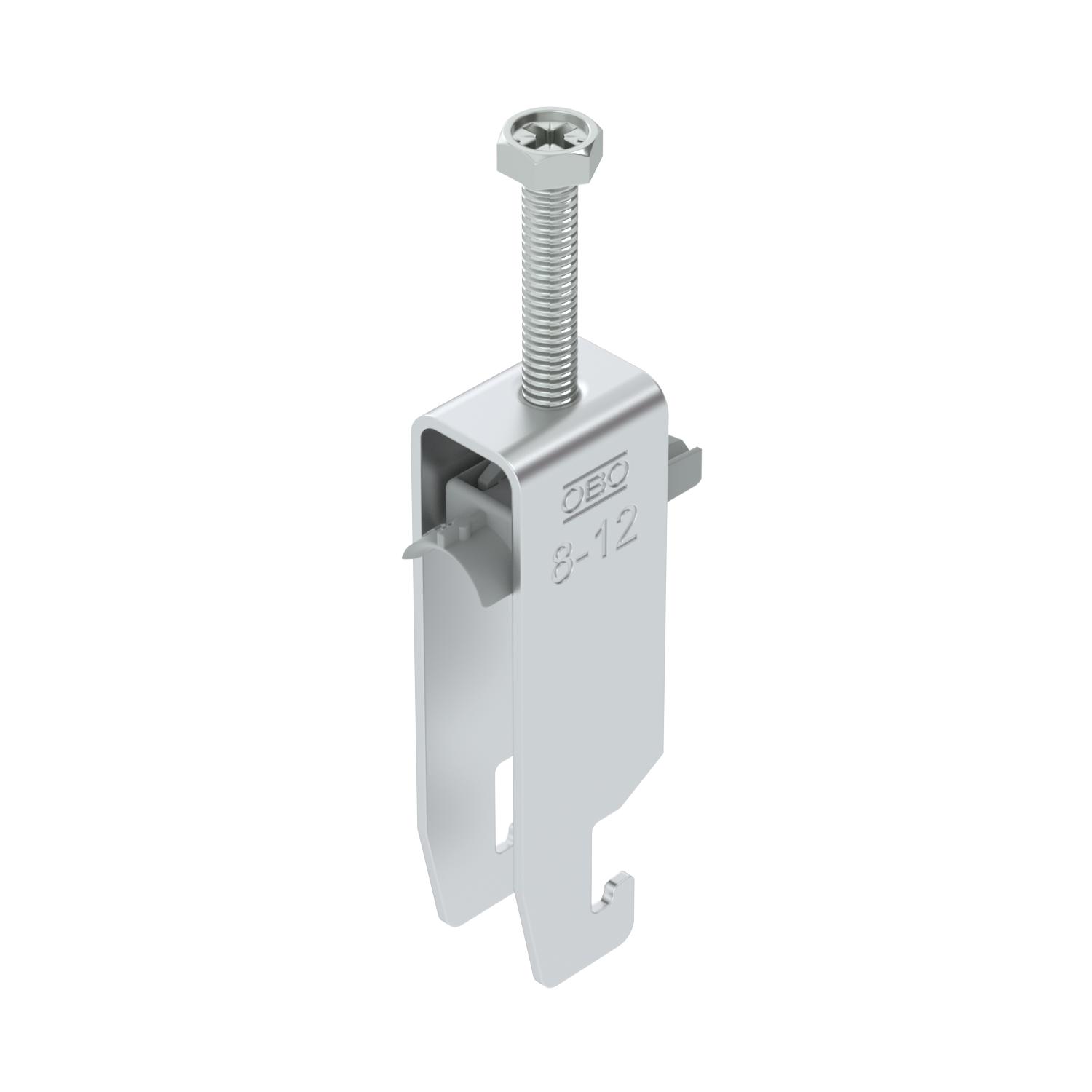

Product descriptionClamp clip with U-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 3 single cables on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.
-
- Technical data
-
Technical data

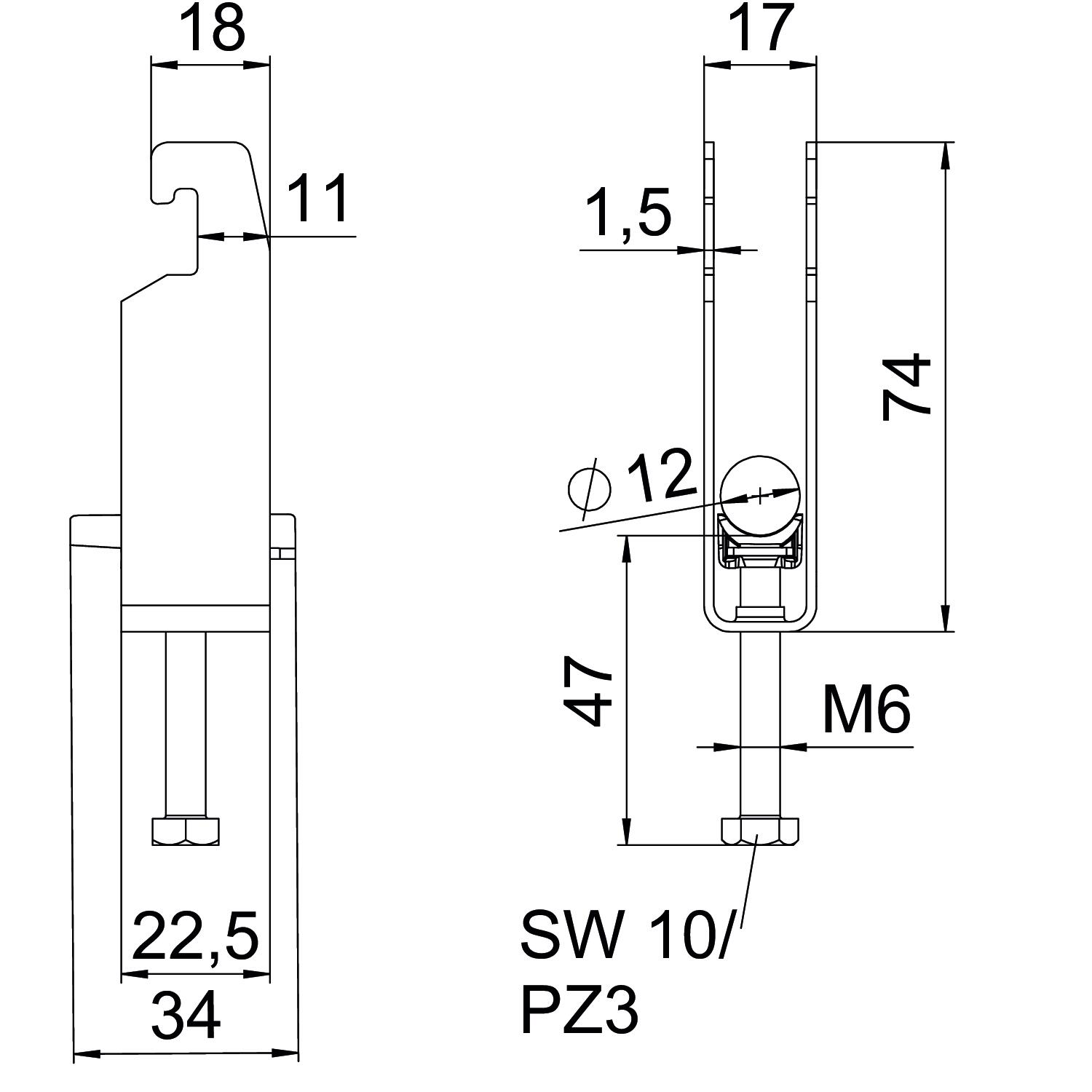

Clamping range D, max. 12 mm Clamping range D, min. 8 mm CO2 Footprint (GWP) Cradle-to-Gate 0,2539 kg CO₂e / 1 Piece Dimension 08-12mm Dimension A 22,5 mm Dimension B 17 mm Dimension C 34 mm Dimension G (mm) M6 Dimension H 74 mm Dimension L 47 mm Dimension t 1,5 mm For pipe diameter, max. 12 mm For pipe diameter, min. 8 mm for rail with slot width (with interval), max. 22 mm for rail with slot width (with interval), min. 18 mm Halogen-free yes Height 74 mm Length 22,5 mm Length of external dimensions 34 mm Material Aluminium Material addition Aluminium Material of trough Plastic Material quality of trough Polypropylene Max. Tightening torque 3 Nm Mounting type Profile rail Number of cables/pipes 3 Plate thickness 1,5 mm Slot width 10 mm Surface addition Untreated Thread M6 Width 17 mm With counter-trough no With metal trough no With plastic trough yes - All types
- Downloads
-
Data sheet BS-U3-K-12 ALU / 1186904 , 0.19MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity BS-U3-K-12 ALU / 1186904 , 0.10MB , pdfUK Declaration of Conformity BS-U3-K-12 ALU / 1186904 , 0.09MB , pdfMounting instructions Clamp clip U foot, plastic , 3.09MB , pdf
