- Product description
-
Product description

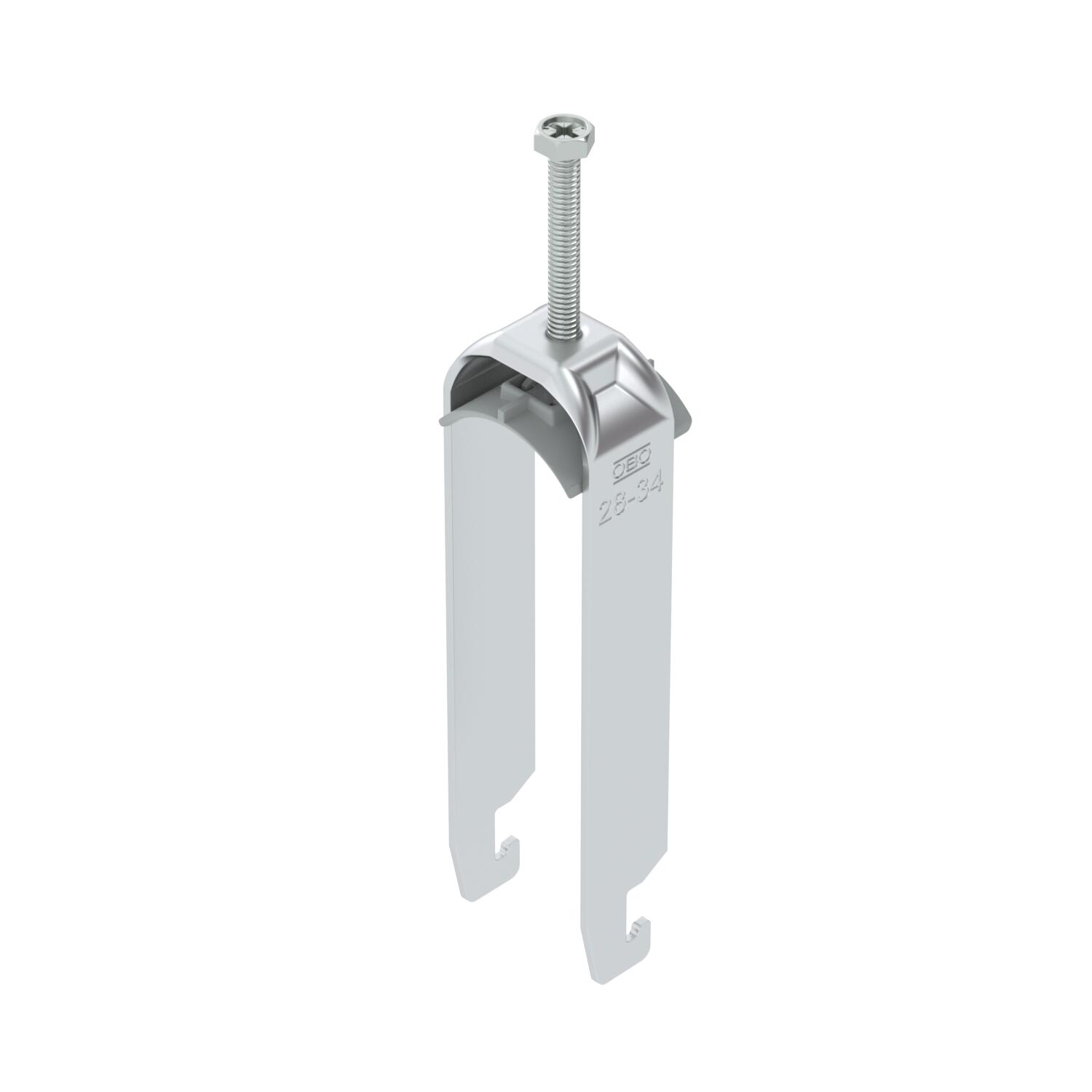

Clamp clip with U-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 3 single cables on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.
- Technical data
-
Technical data
Clamping range D, max. 34 mm Clamping range D, min. 28 mm Dimension 28-34mm For pipe diameter, max. 34 mm For pipe diameter, min. 28 mm for rail with slot width (with interval), max. 22 mm for rail with slot width (with interval), min. 18 mm Halogen-free yes Length of external dimensions 34 mm Material Aluminium Material addition Aluminium Material of trough Plastic Material quality of trough Polypropylene Max. Tightening torque 3 Nm Mounting type Profile rail Number of cables/pipes 3 Plate thickness 2 mm Slot width 10 mm Surface addition Untreated Thread M6 With counter-trough no With metal trough no With plastic trough yes Dimensions

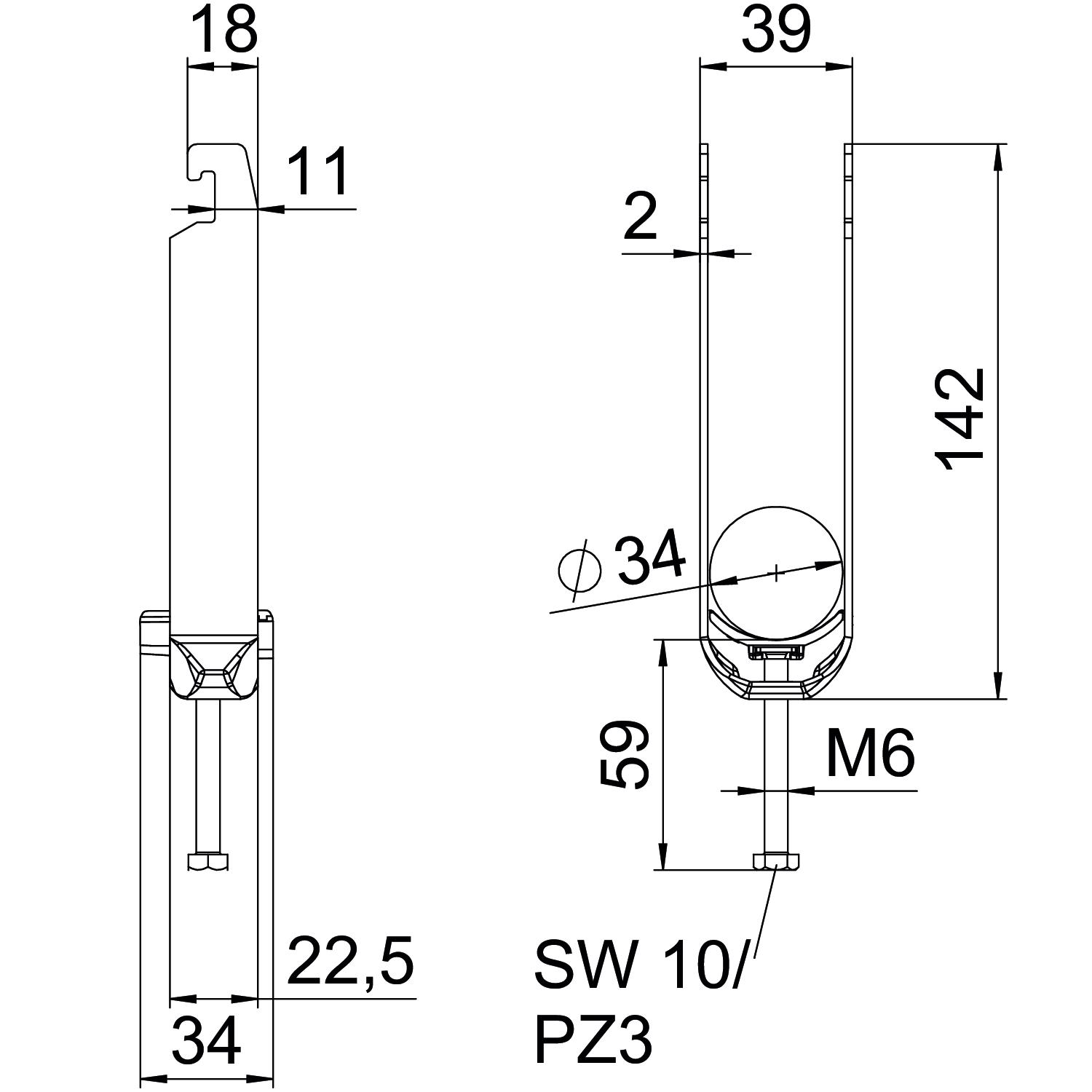

Dimension A 22,5 mm Dimension B 39 mm Dimension C 34 mm Dimension G (mm) M6 Dimension H 142 mm Dimension L 59 mm Dimension t 2 mm Height 142 mm Length 22,5 mm Width 39 mm - All types
- Downloads
-
Data sheet BS-U3-K-34 ALU / 1186931 , 0.27MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity BS-U3-K-34 ALU / 1186931 , 0.15MB , pdf
