UZD350-4 R junction and branch box 80 | 160 | | | Universal | Square | 350 |

UZD350-4 R junction and branch box

Item no. 7410025 | EAN 4012197375386

Item no. / Types

Screed height, min.	80 mm

Screed height, max.	160 mm

Duct height, min.

Trunking height, max.

Cover version	Universal

Installation opening for flush-mount unit	Square

Nominal size

Product description

Product description

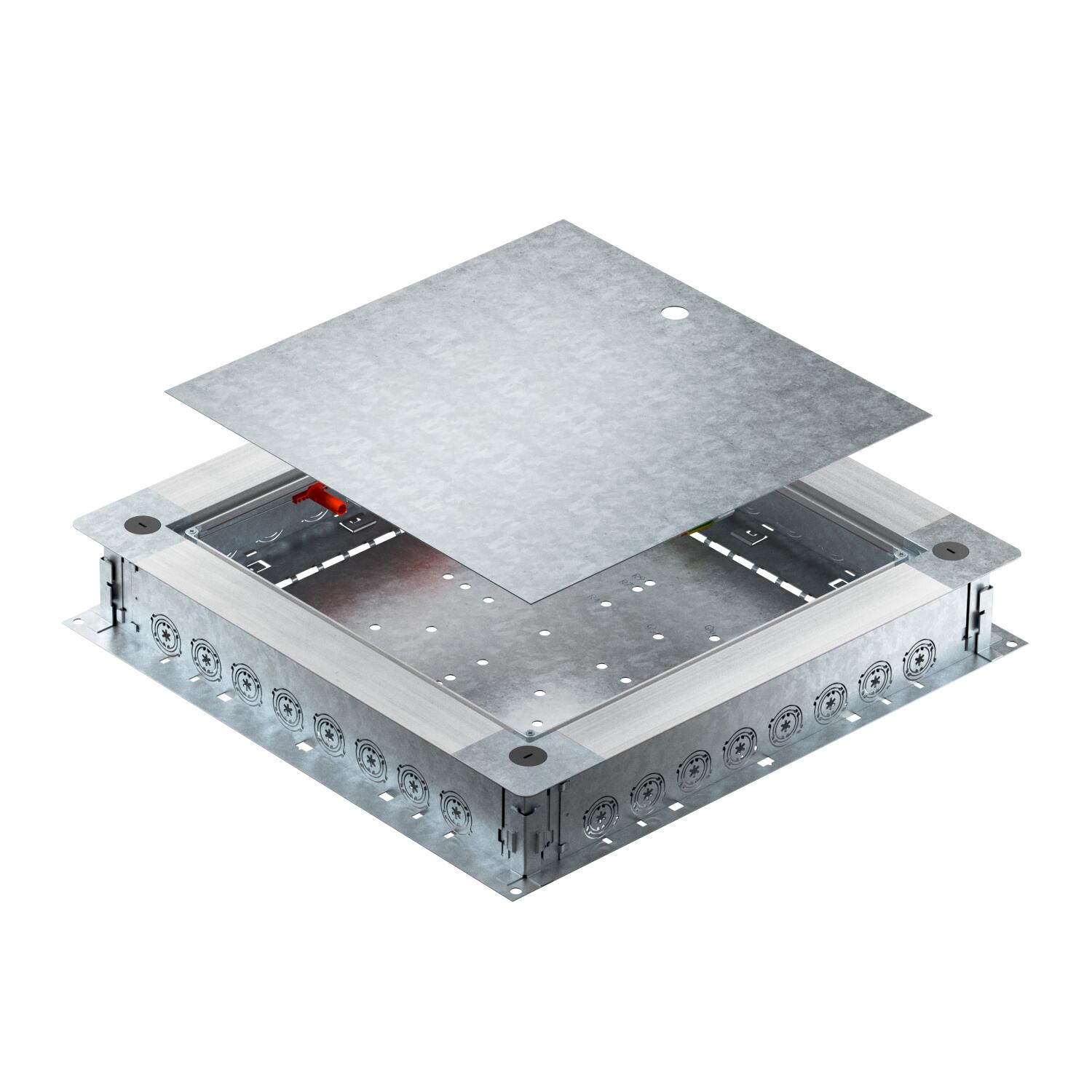

Junction and branch box UZD350-4 R with side walls made of sheet steel. For mounting of installation units in the mounting lid (to be ordered separately). Can be infinitely adjusted to a nominal screed height of 80–160 mm using the quick height-adjustment unit. The screed can be worked up to be flush with the screed edge. With an acoustic decoupling option after screed laying, and with system accessories, it can be used for heavy-duty applications. Insertion of cables through the pipe entries. Pipe entry per side suitable for 8 installation pipes each of the diameters M20, M25 and M32

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	29,833 kg CO2e / 1 Piece
Cover version	Universal
Decouplable	yes

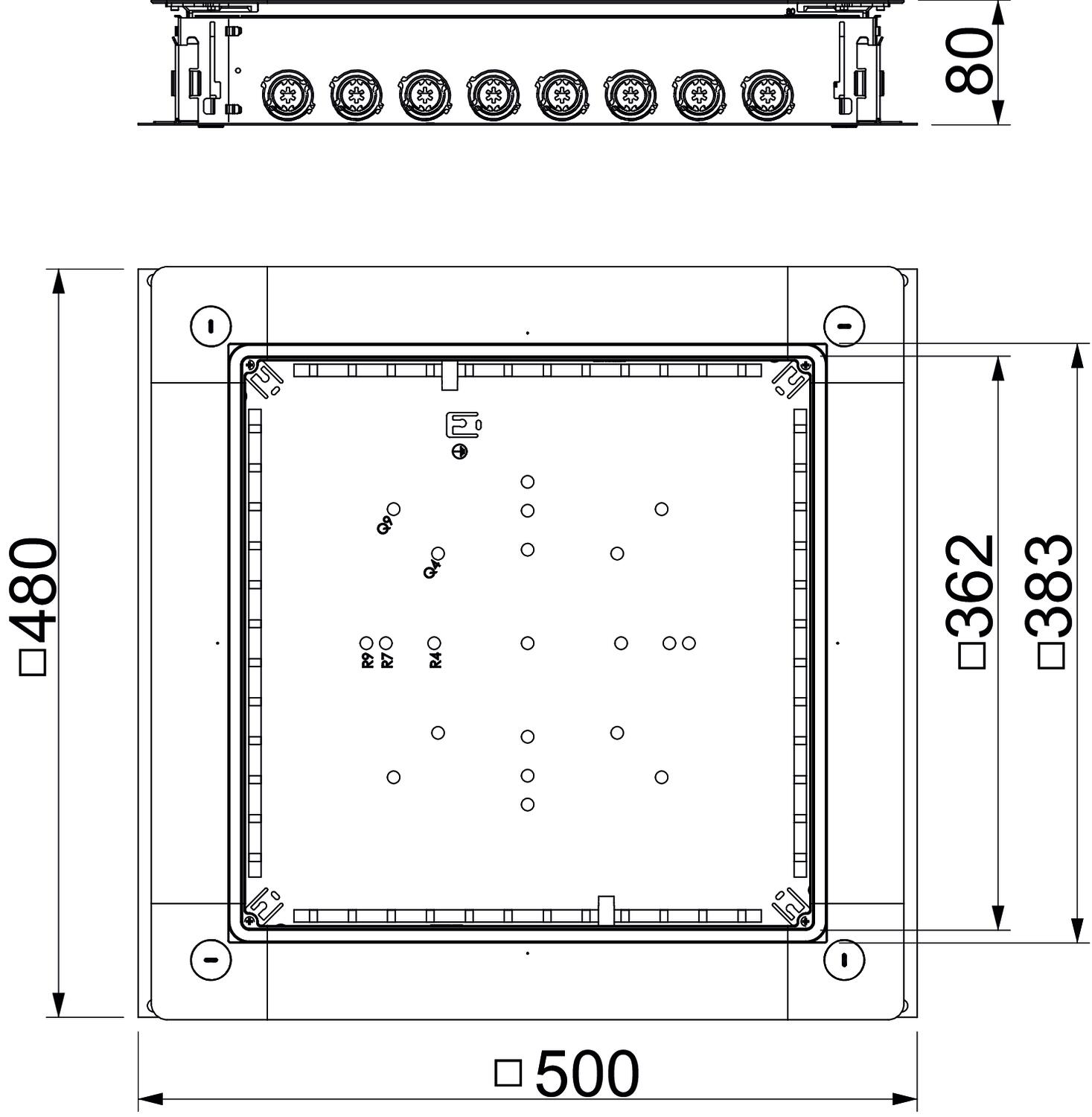

Dimension	500x480x80
Dimension A	480 mm
Dimension a	362 mm
Dimension B	500 mm
Dimension b	383 mm
Floor plate	yes
For pipe connection	yes
Height-adjustment range, max.	160 mm
Height-adjustment range, min.	80 mm
Installation opening for flush-mount unit	Square

Installation opening for on-floor tank	no
Material	Steel
Minimum screed height	80
Nominal size	350 mm
Number of installable devices	1
Protection rating (IP) when used	IP20
Screed height, max.	160 mm
Screed height, min.	80 mm
Seal installation option	yes
Suitable for screed-covered underfloor ducts	no
Suitable for screed-flush closed underfloor ducts	no
Suitable for underfloor ducts	no
Surface	Strip galvanized

All types

All types

Types	Screed height, min.	Screed height, max.	Duct height, min.	Trunking height, max.	Cover version	Installation opening for flush-mount unit	Nominal size	Item no.	Quantity	SSU
UZD250-4	80 mm	160 mm	28 mm	58 mm	Universal	Square	250 mm	7410022	piece	1 piece
UZD350-4	80 mm	160 mm	28 mm	58 mm	Universal	Square	350 mm	7410023	piece	1 piece
UZD350-4 R	80 mm	160 mm	-	-	Universal	Square	350 mm	7410025	piece	1 piece
UZD250-4 R	80 mm	160 mm	-	-	Universal	Square	250 mm	7410026	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Blanking lid for UZD350	DU 350-2	7400577	piece	1 piece
Blanking lid, moisture-protected, for UZD350	DUF 350-2	7400597	piece	1 piece
Mounting cover 350, nominal size 4	DUG 350-3 4	7400505	piece	1 piece
Mounting lid 350, nominal size 6	DUG 350-3 6	7400509	piece	1 piece
Mounting lid 350, nominal size 9	DUG 350-3 9	7400513	piece	1 piece
Mounting lid 350, nominal size R4	DUG 350-3 R4	7400517	piece	1 piece
Mounting lid 350, nominal size R7	DUG 350-3 R7	7400533	piece	1 piece
Mounting lid 350, nominal size R9	DUG 350-3 R9	7400549	piece	1 piece
Protective conductor connection bracket	8AWR	6288704	piece	10 piece
