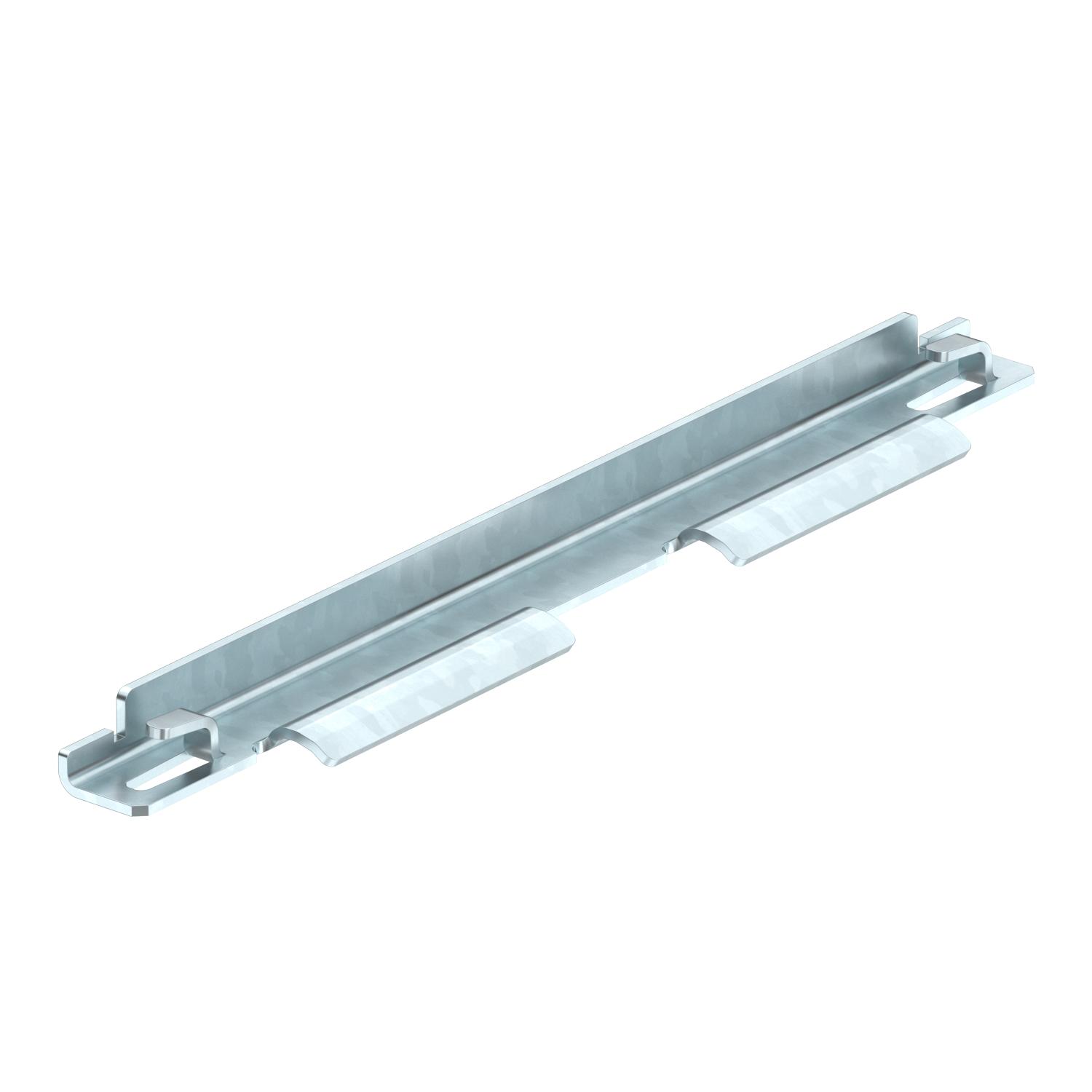

Mesh cable tray connector, long DD
Item no. 6016684 | EAN 4012196054251
- Product description
-
Product descriptionLong mesh cable tray connection for screwless straight connection of mesh cable trays.
-
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no CO2 Footprint (GWP) Cradle-to-Gate 0,4137 kg CO2e / 1 Piece Colour zinc Connection type Screwless connector Dimension 245 x 30 Dimension L245mm Height 0,55 in Height 14 mm Length 245 mm Maintain electrical functions no Material Steel Plate thickness 2 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Surface Strip galvanised zinc/aluminium, Double Dip Version for Straight connector Width 30 mm Width 1,18 in - All types
- Downloads
-
Data sheet GRV 245 DD / 6016684 , 0.19MB , pdfEU declaration of conformity GRV 245 DD / 6016684 , 0.10MB , pdfREACH Declaration of conformity GRV 245 DD / 6016684 , 0.12MB , pdfRoHS Declaration of conformity GRV 245 DD / 6016684 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
