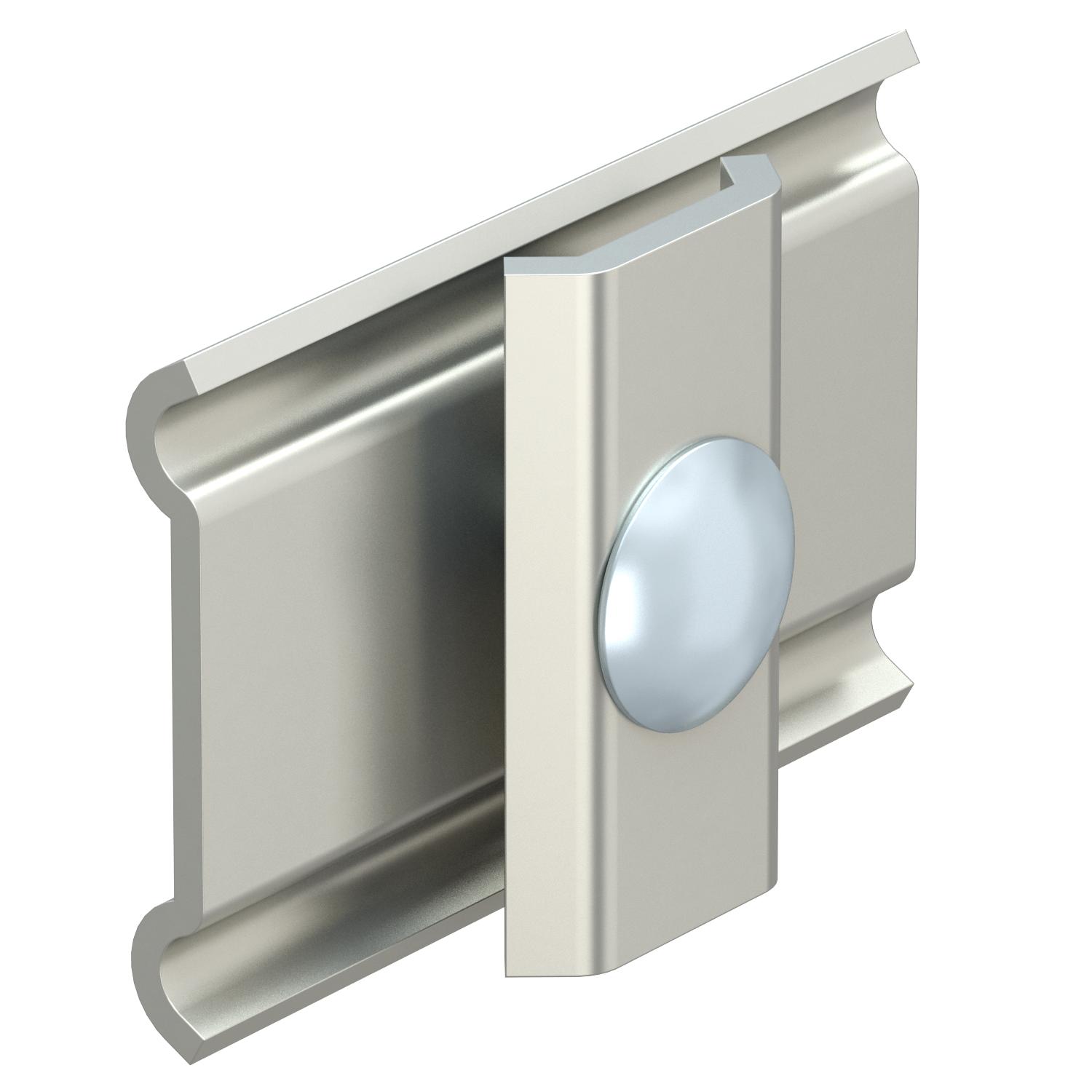

Mesh cable tray connector A2
Item no. 6016367 | EAN 4012196359899
- Product description
-
Product descriptionScrewed version of joint connector for mesh cable trays.
-
- Technical data
-
Technical data

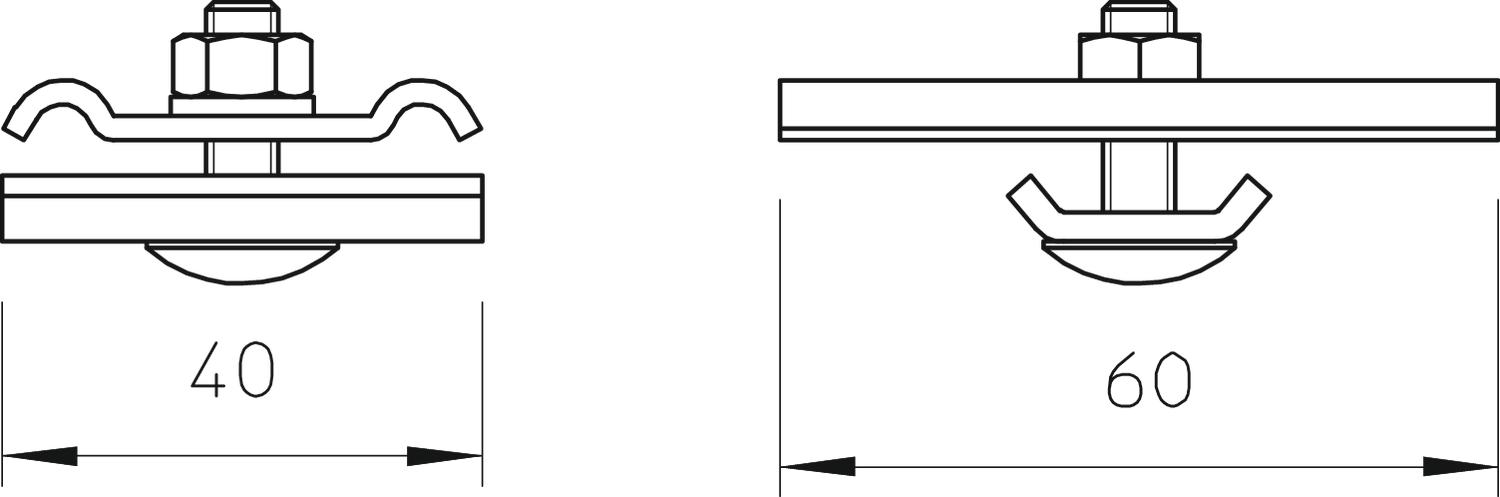

Adjustable connector, horizontal no Articulated connector, vertical no Colour stainless steel Connection type Screw connector Dimension 60x40 Dimension 60 x 40 Height 24 mm Height 0,94 in Length 60 mm Maintain electrical functions no Material Stainless steel Rustproof steel, pickled yes Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Suitable for mesh cable tray wire, max. 4,9 mm Suitable for mesh cable tray wire, min. 3,9 mm Surface Bright, treated Version for Straight connector Width 40 mm Width 1,57 in - All types
- Downloads
-
Data sheet K 11 262 A2 / 6016367 , 0.19MB , pdfEU declaration of conformity K 11 262 A2 / 6016367 , 0.10MB , pdfREACH Declaration of conformity K 11 262 A2 / 6016367 , 0.12MB , pdfRoHS Declaration of conformity K 11 262 A2 / 6016367 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdfNo invitation to tender text is available for this product.
