GES9/10 service trunking for OKA-T, 3-compartment
Item no. 7402290 | EAN 4012195436423
- Product description
-

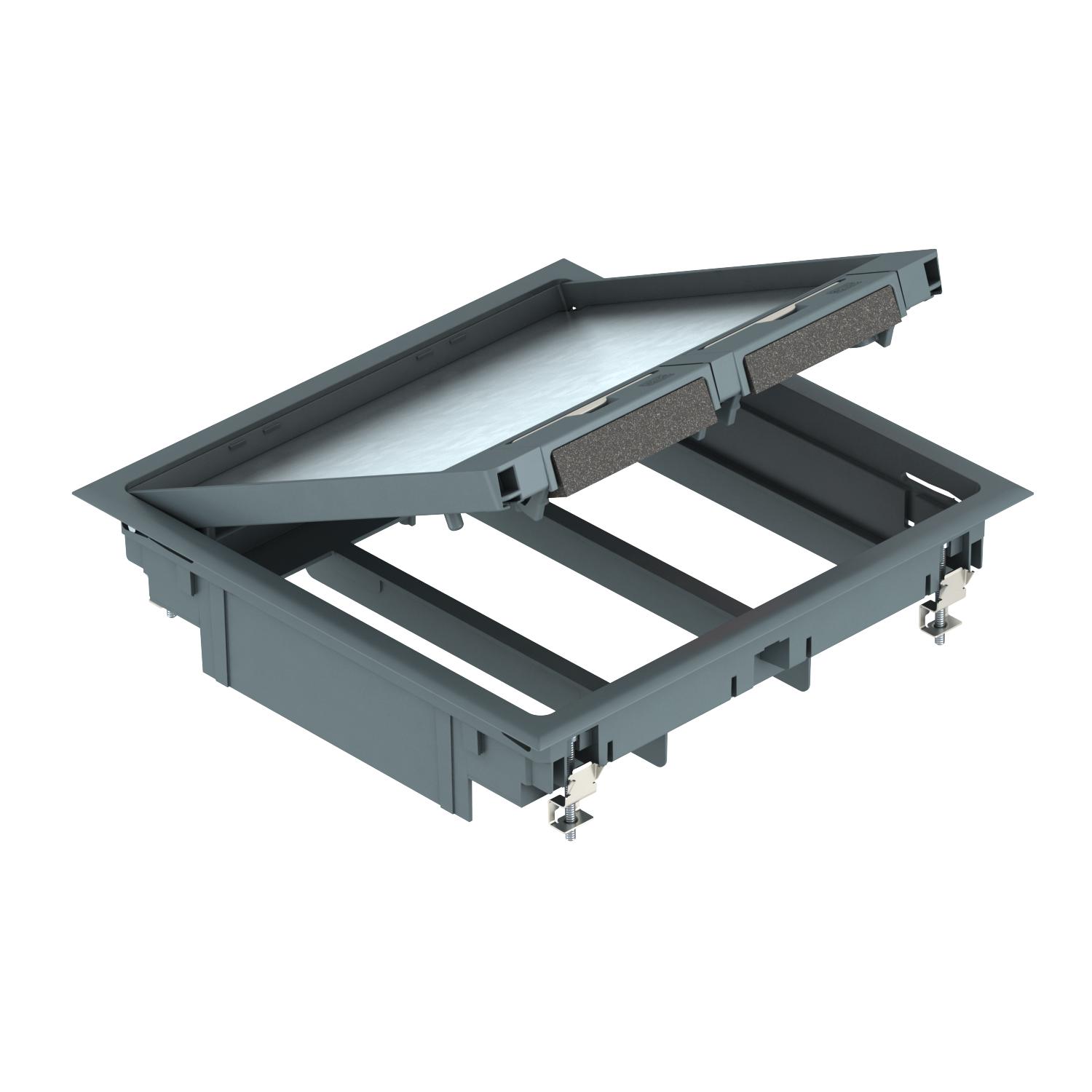

Product descriptionSquare flushfloor installation unit for mounting in an OKA-T trunking system. With mounting support to accept up to three APMT5 cover plates.
Service outlet with handle clamp for mounting in a OKA-T trunking system. With mounting support for receiving up to three APMT5 cover plates.
-
- Technical data
-
Technical data

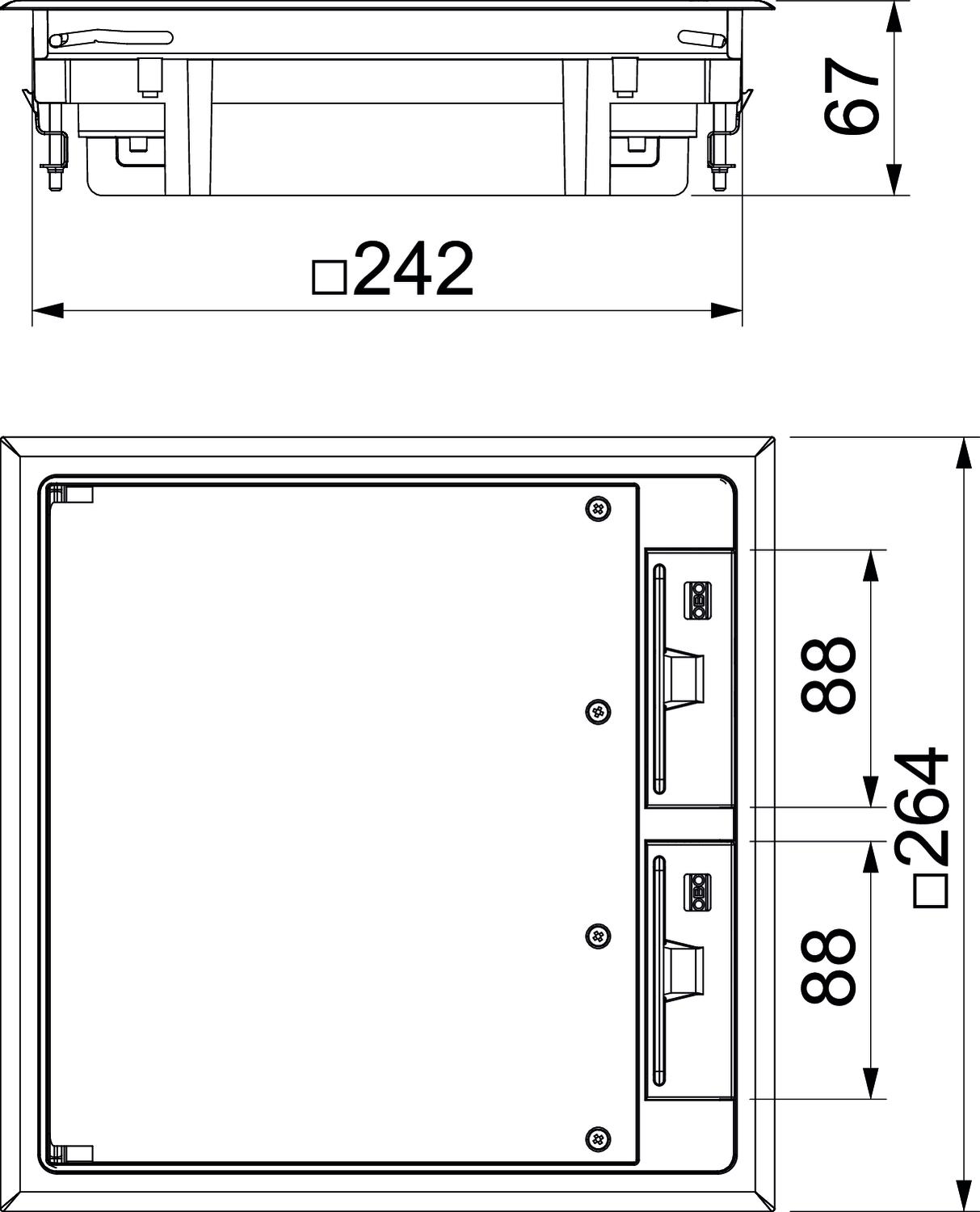

Cable outlet version Swivellable cord outlet Colour Iron grey; RAL 7011 Dimension 264x264x67 Floor covering thickness 10 mm Material Polyamide Opening mechanism Handle Seal installation option no Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-flush closed underfloor ducts no Suitable for wet care no - All types
- Downloads
-
Data sheet GES9 10OK U 7011 / 7402290 , 0.23MB , pdfCatalogue Underfloor systems , 2.10MB , pdfEU declaration of conformity GES9 10OK U 7011 / 7402290 , 0.10MB , pdfUK Declaration of Conformity GES9 10OK U 7011 / 7402290 , 0.09MB , pdfREACH Declaration of conformity GES9 10OK U 7011 / 7402290 , 0.12MB , pdfRoHS Declaration of conformity GES9 10OK U 7011 / 7402290 , 0.13MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfNo invitation to tender text is available for this product.
