Technical data
Approvals
VDE
Cable outlet version
Swivellable cord outlet
Colour
Graphite black; RAL 9011
Device support to accept mounting boxes
yes

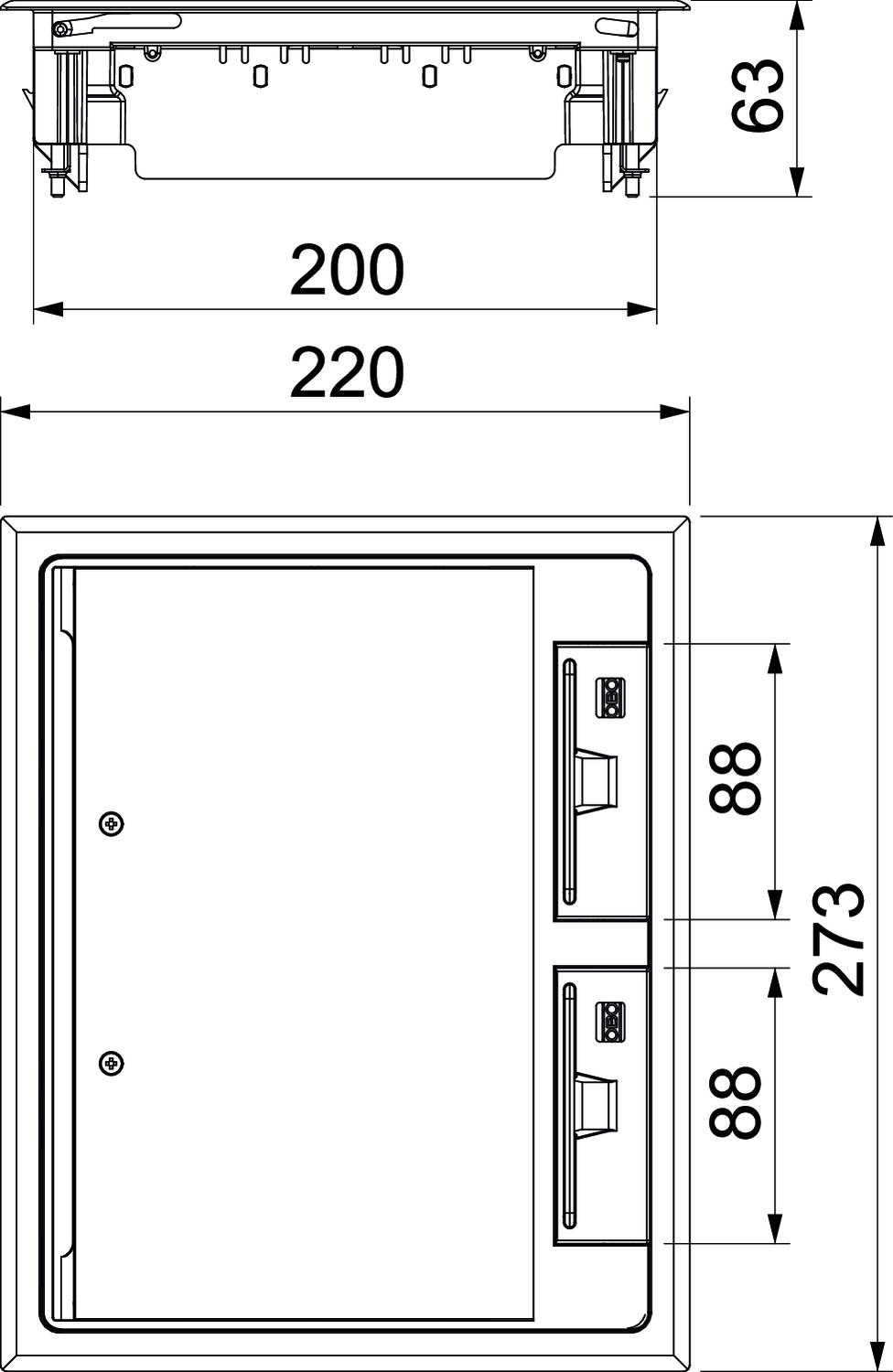

Dimension
273x220x61
Floor care
Dry
Floor covering protection frame
yes
Floor covering thickness
5
mm
Floor height, min.
73
mm

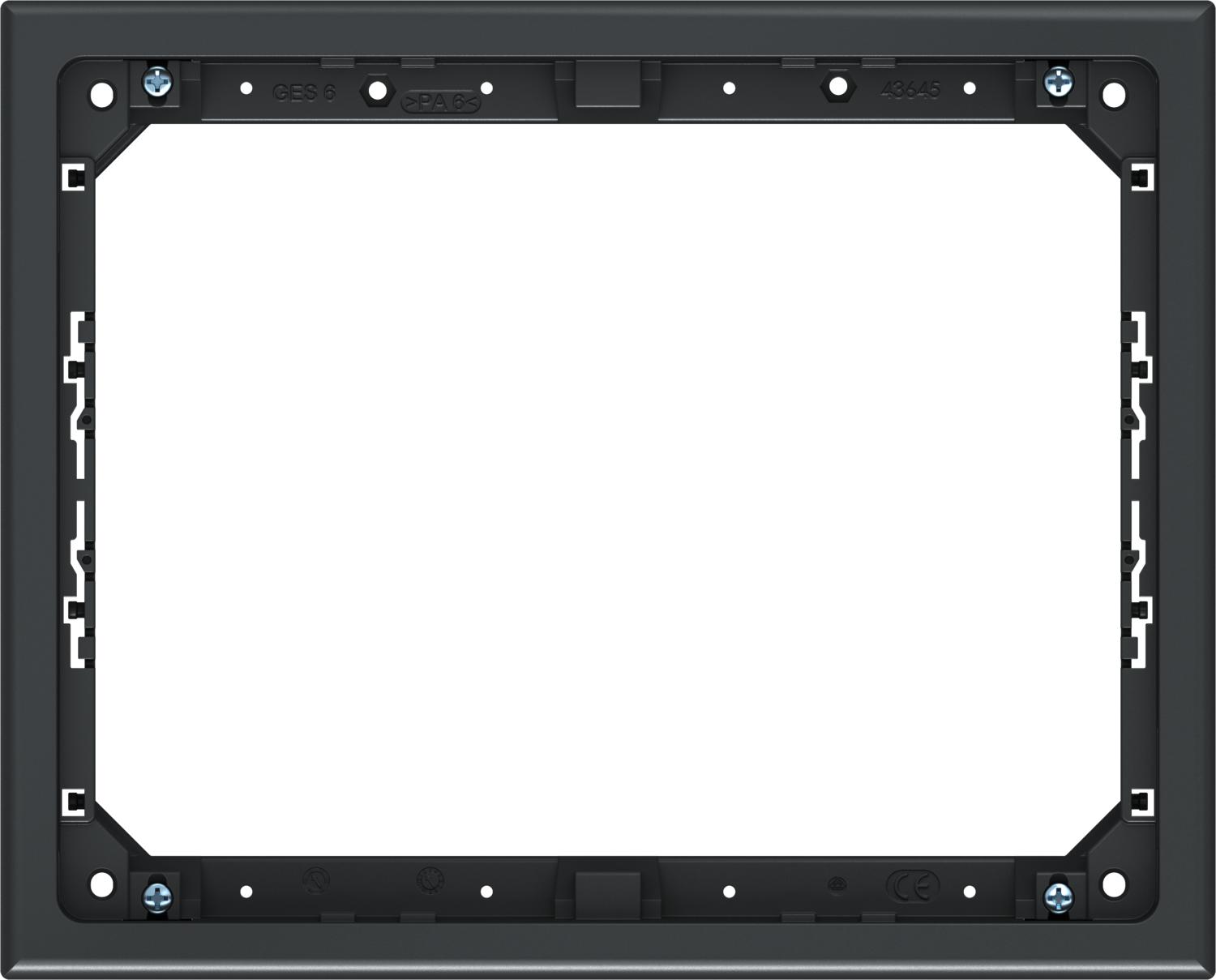

Frame version
Carpet protection frame
Heavy-duty version
no
Installation depth
73
mm
Installation system type
MT3 / GB2
Length of external dimensions
220
mm
Length of installation dimensions
199
mm
Material
Polyamide
Nominal size for device installation units
6
Number of installable devices
9
Number of mounting boxes
3
Opening mechanism
Handle
Protection rating (IP) when unused
IP40
Protection rating (IP) when used
IP20
Protection rating IK code
IK08
Seal installation option
no
Suitable for cavity floor installation
yes
Suitable for raised floor installation
yes
Suitable for screed-covered underfloor ducts
yes
Suitable for screed-flush closed underfloor ducts
no
Suitable for underfloor ducts
yes
Suitable for wet care
no
Version for
Rectangular
Vertical load, large area
to 3,000 N
Vertical load, small area
to 2,500 N
Wide external dimensions
273
mm
Wide installation dimensions
252
mm
With floor covering recess
yes
