Clamp clip 2056 U-foot, 2-fold, plastic pressure sleeve, AI 46 | 52 | 5

Clamp clip 2056 U-foot, 2-fold, plastic pressure sleeve, AI

Item no. 1186950 | EAN 4012196852093

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

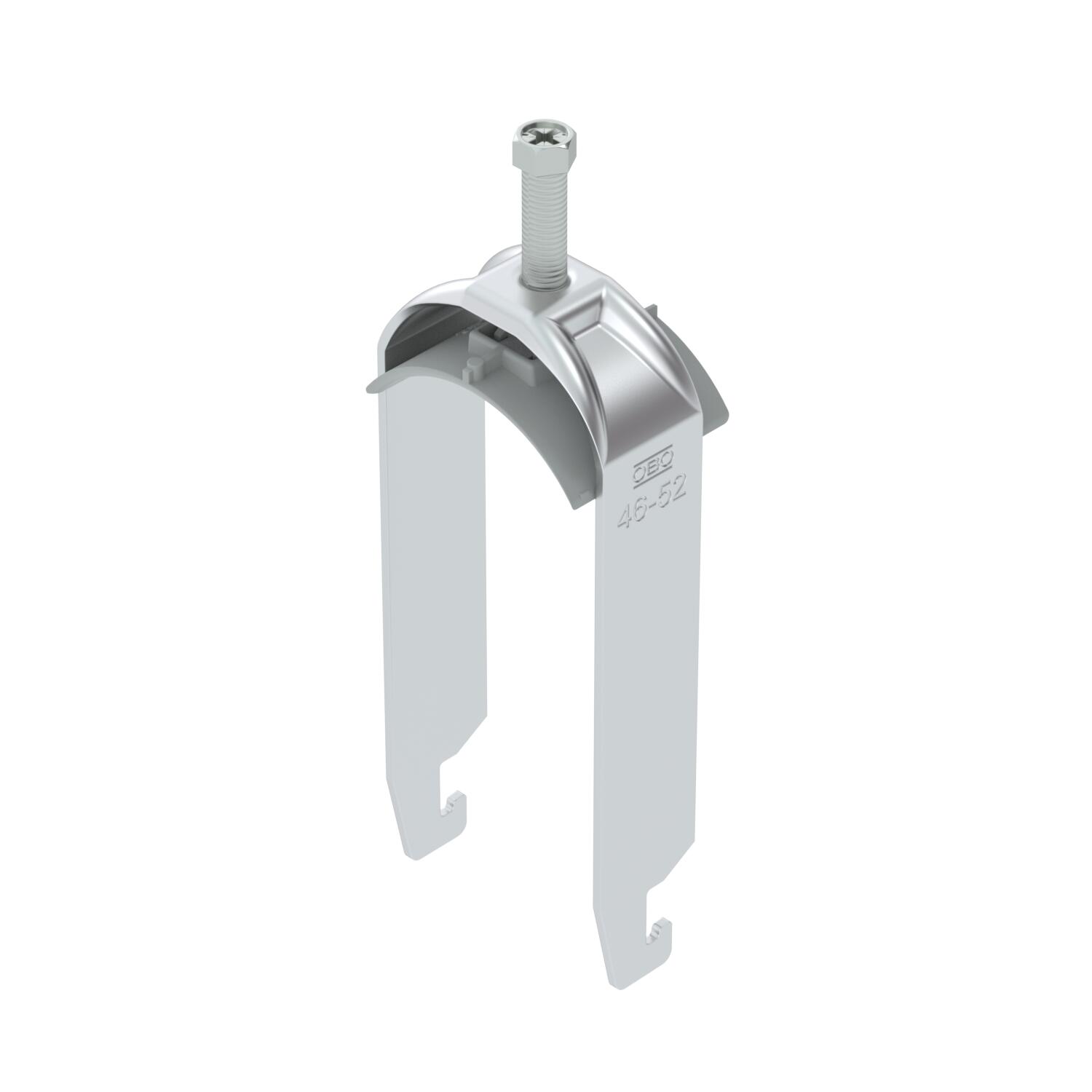

Clamp clip with U-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 2 single cables on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	52 mm
Clamping range D, min.	46 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,6116 kg CO₂e / 1 Piece

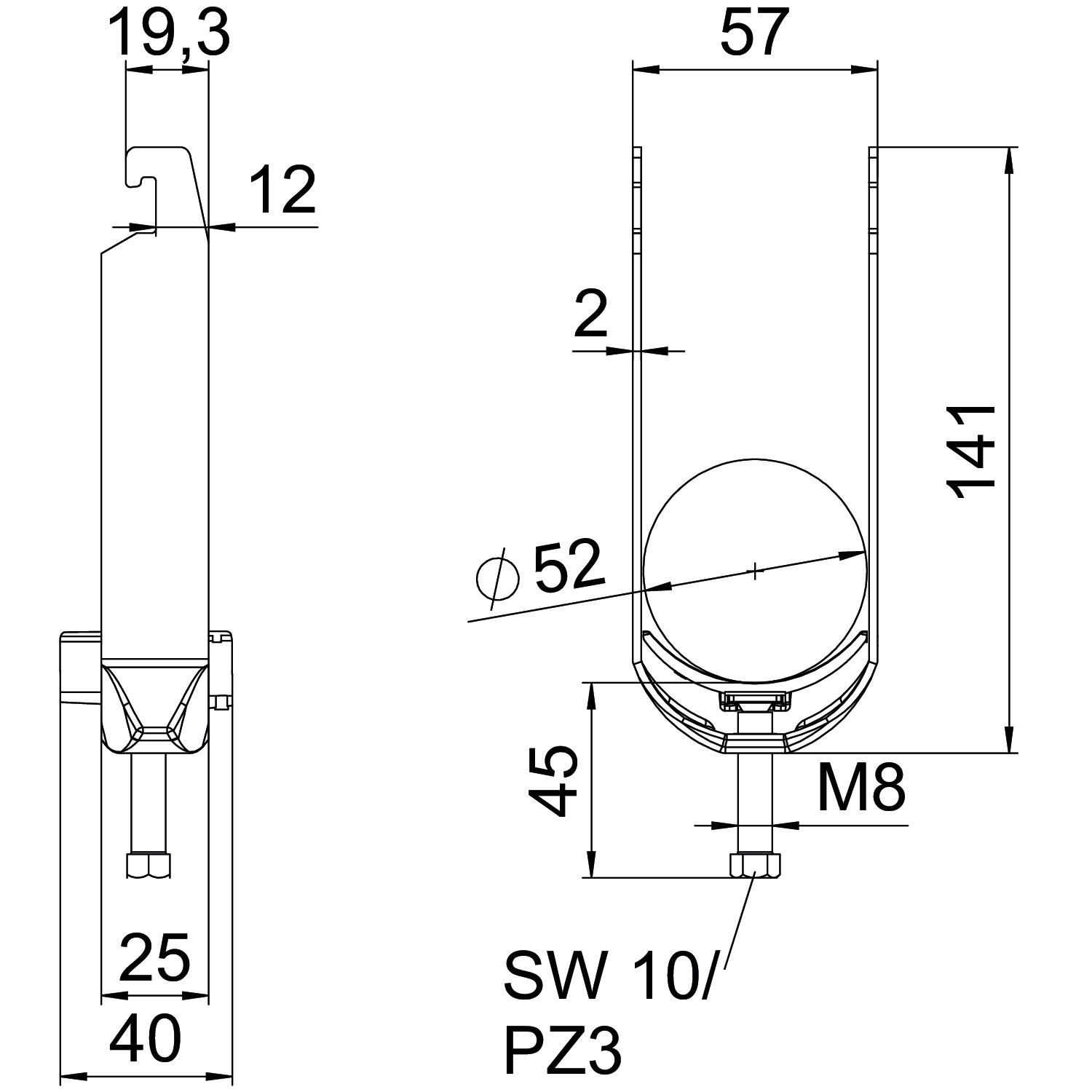

Dimension	46-52mm
Dimension A	25 mm
Dimension B	57 mm
Dimension C	40 mm
Dimension G (mm)	M8
Dimension H	141 mm
Dimension L	45 mm
Dimension t	2 mm
For pipe diameter, max.	52 mm
For pipe diameter, min.	46 mm
for rail with slot width (with interval), max.	22 mm
for rail with slot width (with interval), min.	18 mm
Halogen-free	yes
Height	141 mm

Length	25 mm
Length of external dimensions	40 mm
Material	Aluminium
Material addition	Aluminium
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	2
Plate thickness	2 mm
Slot width	10 mm
Surface addition	Untreated
Thread	M8
Width	57 mm
With counter-trough	no
With metal trough	no
With plastic trough	yes
