Clamp clip 2056 U-foot, 2-fold, metal pressure sleeve, FT 40 | 46 | 5

Clamp clip 2056 U-foot, 2-fold, metal pressure sleeve, FT

Item no. 1186543 | EAN 4012196850068

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

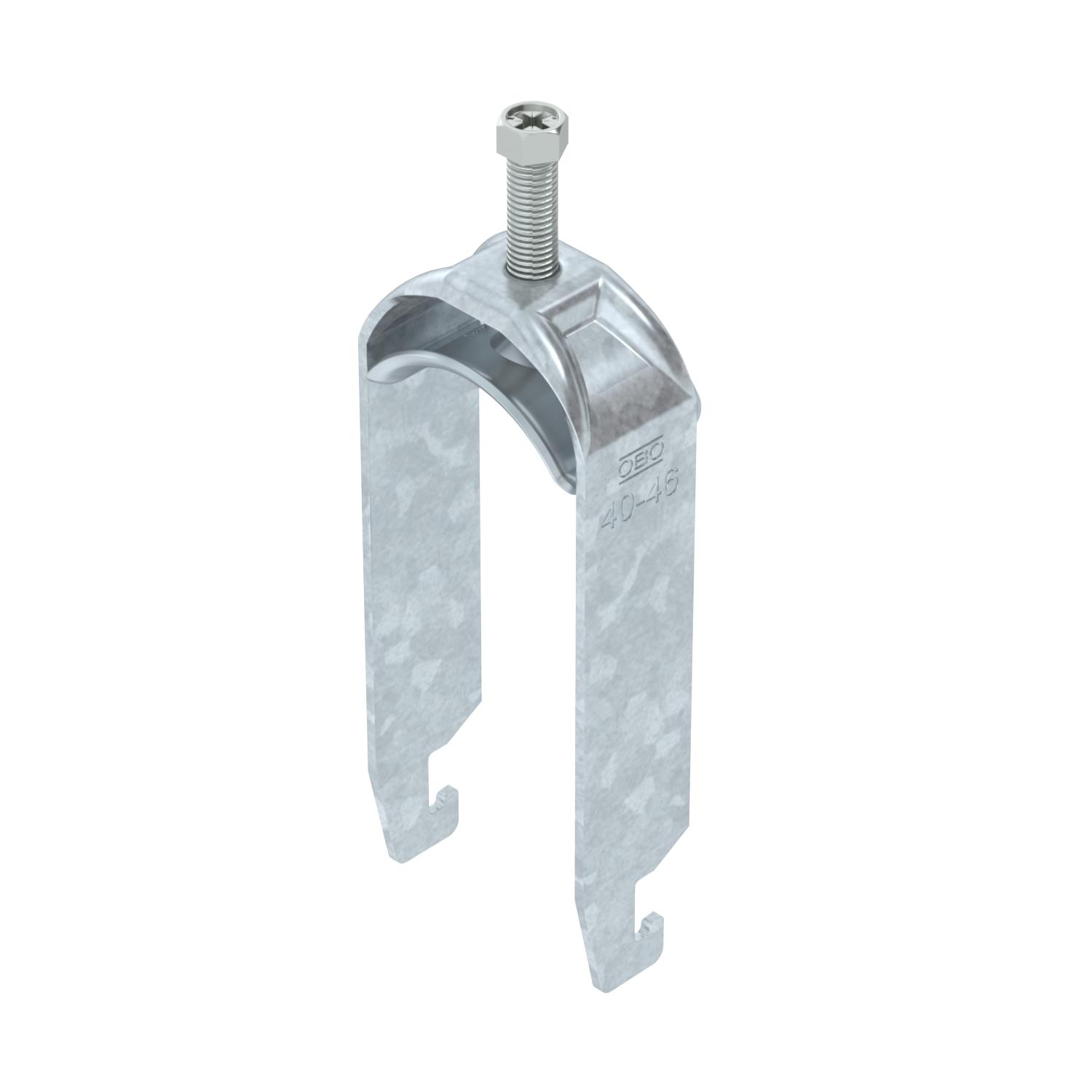

Clamp clip with U-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 2 single cables on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	46 mm
Clamping range D, min.	40 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,3205 kg CO₂e / 1 Piece
Dimension	40-46mm

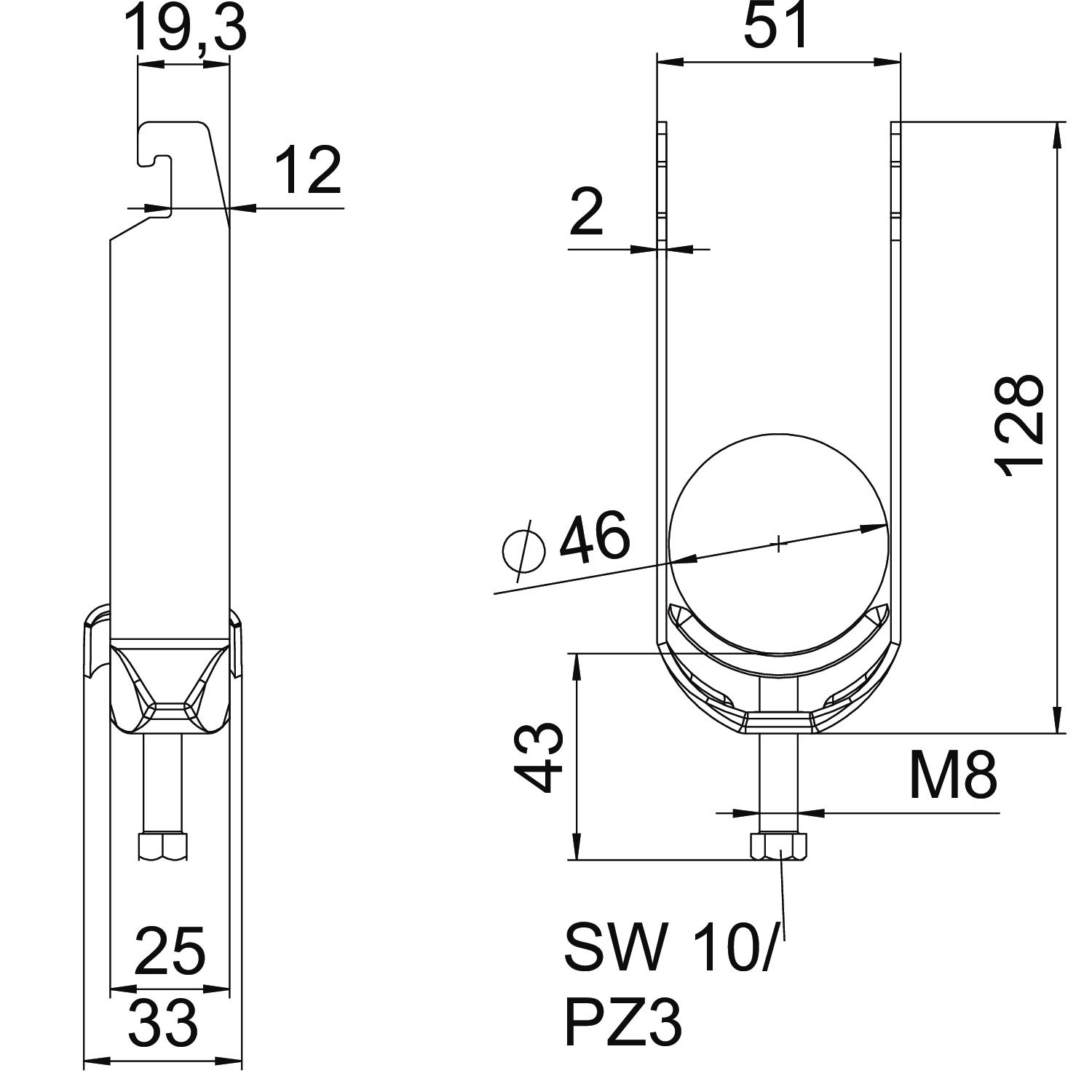

Dimension A	25 mm
Dimension B	51 mm
Dimension C	33 mm
Dimension G (mm)	M8
Dimension H	128 mm
Dimension L	43 mm
Dimension t	2 mm
For pipe diameter, max.	46 mm
For pipe diameter, min.	40 mm
for rail with slot width (with interval), max.	22 mm
for rail with slot width (with interval), min.	18 mm
Halogen-free	yes
Height	128 mm
Length	25 mm

Length of external dimensions	33 mm
Maintain electrical functions	yes
Material	Steel
Material addition	Steel
Material of trough	Steel
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	2
Plate thickness	2 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M8
Width	51 mm
With counter-trough	no
With metal trough	yes
With plastic trough	no

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-U2-M-12 FT	8 mm	12 mm	3 Nm	1186503	piece	50 piece
BS-U2-M-16 FT	12 mm	16 mm	3 Nm	1186510	piece	50 piece
BS-U2-M-22 FT	16 mm	22 mm	3 Nm	1186517	piece	50 piece
BS-U2-M-28 FT	22 mm	28 mm	3 Nm	1186523	piece	50 piece
BS-U2-M-34 FT	28 mm	34 mm	3 Nm	1186530	piece	50 piece
BS-U2-M-40 FT	34 mm	40 mm	3 Nm	1186537	piece	50 piece
BS-U2-M-46 FT	40 mm	46 mm	5 Nm	1186543	piece	50 piece
BS-U2-M-52 FT	46 mm	52 mm	5 Nm	1186550	piece	50 piece
BS-U2-M-58 FT	52 mm	58 mm	5 Nm	1186557	piece	50 piece
BS-U2-M-64 FT	58 mm	64 mm	5 Nm	1186563	piece	50 piece
