Clamp clip 2056 N-foot, 2-fold, plastic pressure sleeve, FT
Item no. 1187209 | EAN 4012196852840
- Product description
-
Product descriptionClamp clip with N-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 2 single cables on a C-profile rail. For slot width 11‒12 mm With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.
-
- Technical data
-
Technical data

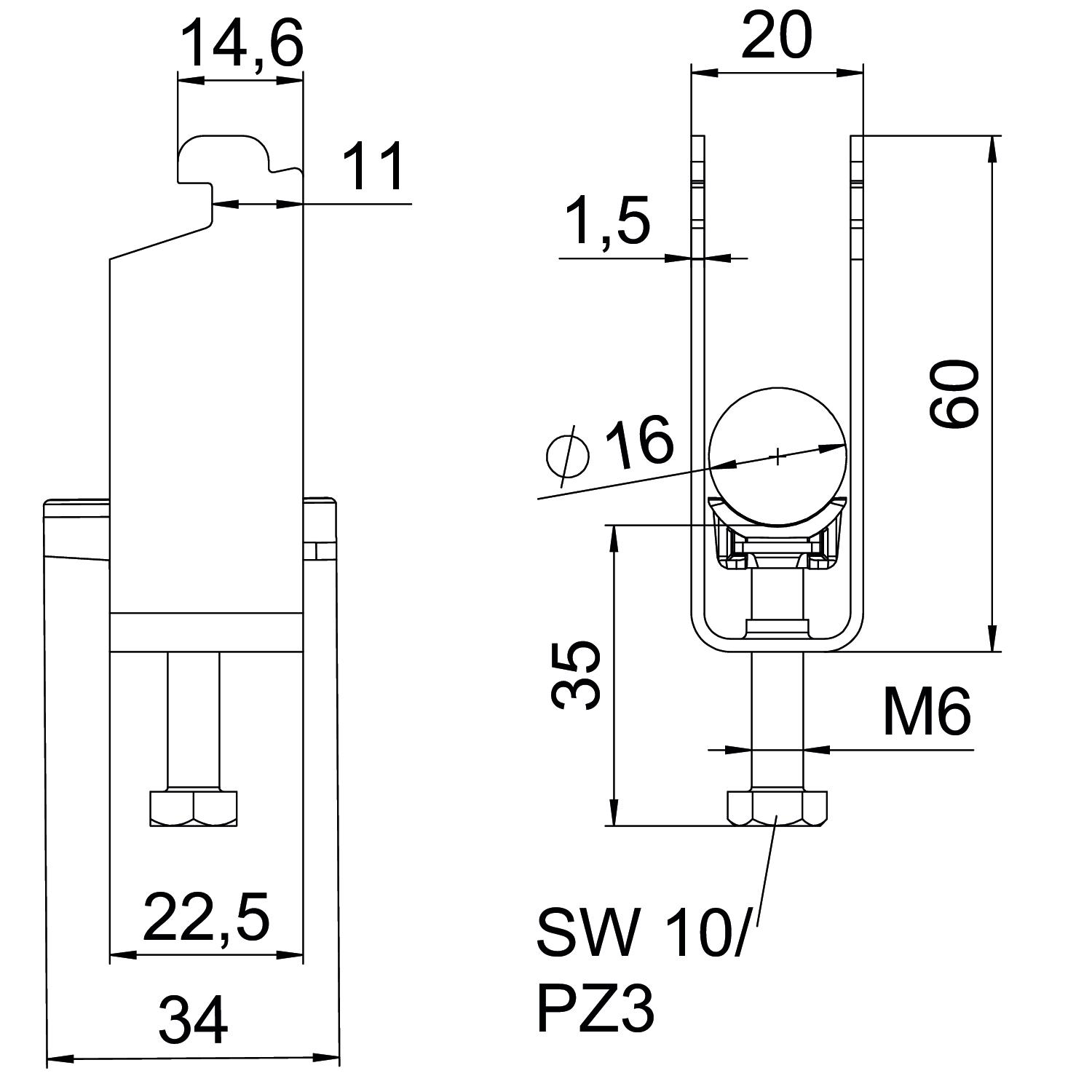

Clamping range D, max. 16 mm Clamping range D, min. 12 mm CO2 Footprint (GWP) Cradle-to-Gate 0,1189 kg CO₂e / 1 Piece Dimension 12-16mm Dimension A 22,5 mm Dimension B 20 mm Dimension C 34 mm Dimension G (mm) M6 Dimension H 60 mm Dimension L 47 mm Dimension t 1,5 mm For pipe diameter, max. 16 mm For pipe diameter, min. 12 mm for rail with slot width (with interval), max. 12 mm for rail with slot width (with interval), min. 11 mm Halogen-free yes Height 60 mm Length 22,5 mm Length of external dimensions 34 mm Material Steel Material addition Steel Material of trough Plastic Material quality of trough Polypropylene Max. Tightening torque 3 Nm Mounting type Profile rail Number of cables/pipes 2 Plate thickness 1,5 mm Slot width 10 mm Surface Hot-dip galvanised Surface addition hot galvanised Thread M6 Width 20 mm With counter-trough no With metal trough no With plastic trough yes - All types
- Downloads
-
Data sheet BS-N2-K-16 FT / 1187209 , 0.20MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity BS-N2-K-16 FT / 1187209 , 0.10MB , pdfUK Declaration of Conformity BS-N2-K-16 FT / 1187209 , 0.09MB , pdfMounting instructions Clamp clip N foot, plastic , 3.10MB , pdf
