Clamp clip 2056 F-foot, 2-fold, metal pressure sleeve, FT 16 | 22 | 3

Clamp clip 2056 F-foot, 2-fold, metal pressure sleeve, FT

Item no. 1187415 | EAN 4012196853557

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

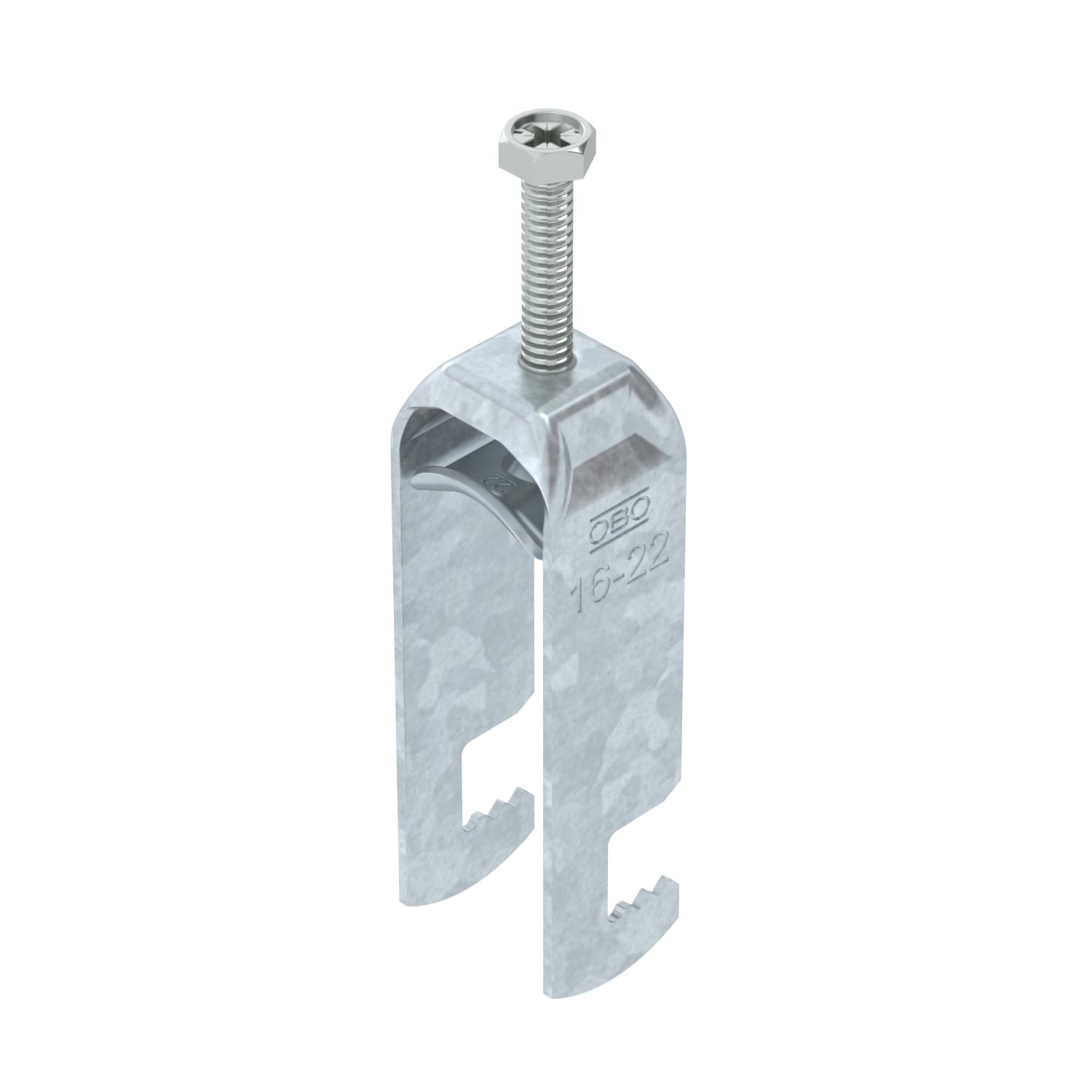

Clamp clip with F-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 2 single cables on flat bars. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	22 mm
Clamping range D, min.	16 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,1823 kg CO₂e / 1 Piece
Dimension	16-22mm

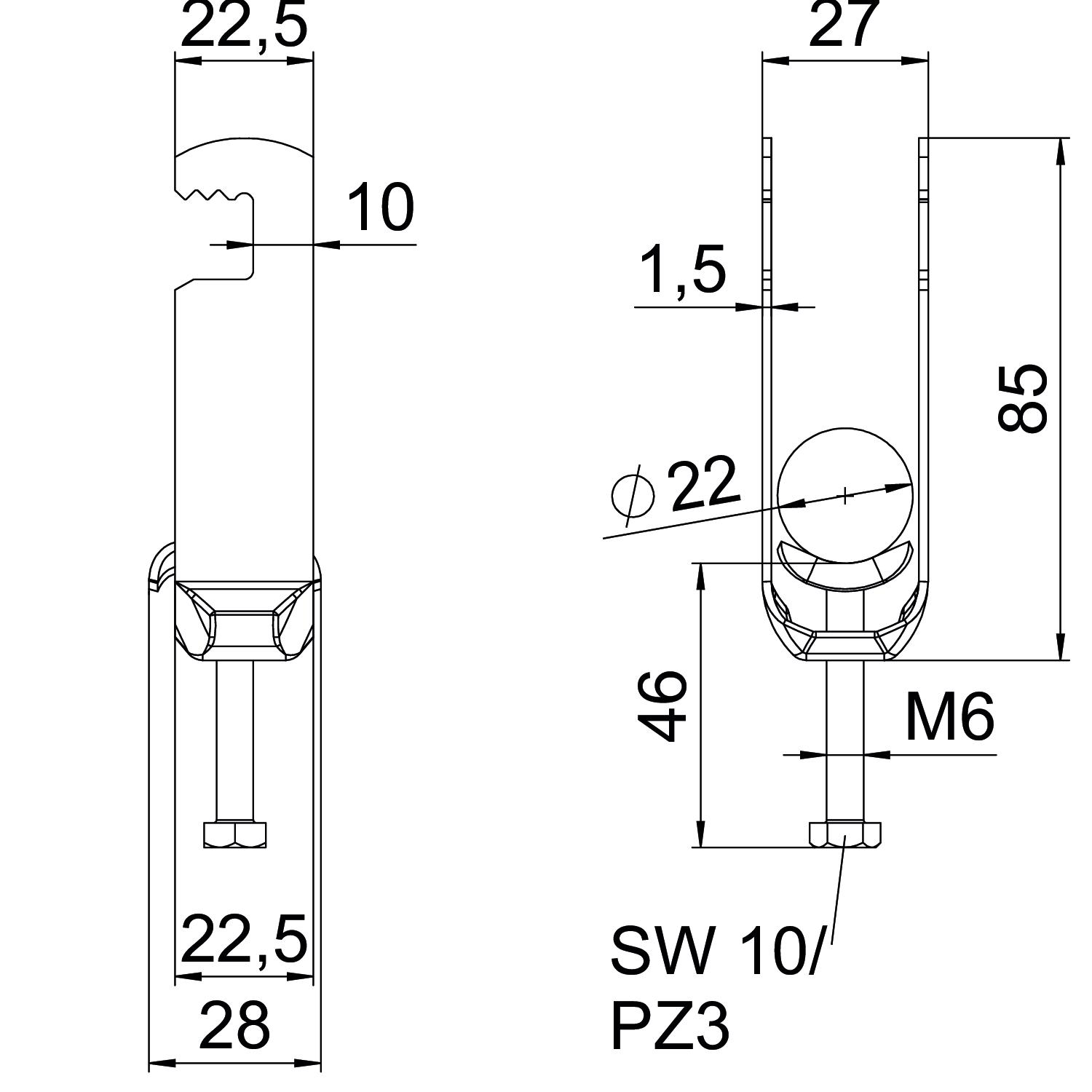

Dimension A	22,5 mm
Dimension B	27 mm
Dimension C	28 mm
Dimension G (mm)	M6
Dimension H	85 mm
Dimension L	46 mm
Dimension t	1,5 mm
For pipe diameter, max.	22 mm
For pipe diameter, min.	16 mm
Halogen-free	yes
Height	85 mm
Length	22,5 mm

Length of external dimensions	28 mm
Material	Steel
Material addition	Steel
Material of trough	Steel
Max. Tightening torque	3 Nm
Mounting type	Flat profile
Number of cables/pipes	2
Plate thickness	1,5 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M6
Width	27 mm
With counter-trough	no
With metal trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-F2-M-12 FT	8 mm	12 mm	3 Nm	1187403	piece	50 piece
BS-F2-M-16 FT	12 mm	16 mm	3 Nm	1187409	piece	50 piece
BS-F2-M-22 FT	16 mm	22 mm	3 Nm	1187415	piece	50 piece
BS-F2-M-28 FT	22 mm	28 mm	3 Nm	1187421	piece	50 piece
BS-F2-M-34 FT	28 mm	34 mm	3 Nm	1187427	piece	50 piece
BS-F2-M-40 FT	34 mm	40 mm	3 Nm	1187433	piece	50 piece
BS-F2-M-46 FT	40 mm	46 mm	5 Nm	1187439	piece	50 piece
BS-F2-M-52 FT	46 mm	52 mm	5 Nm	1187445	piece	50 piece
