0° socket, Multistandard, single

Item no. / Types	6120739 / STD-MS0 SWGR1

Number of units	1

Version for	Single 0°

Colour	Black-grey; RAL 7021

Product description

Product description

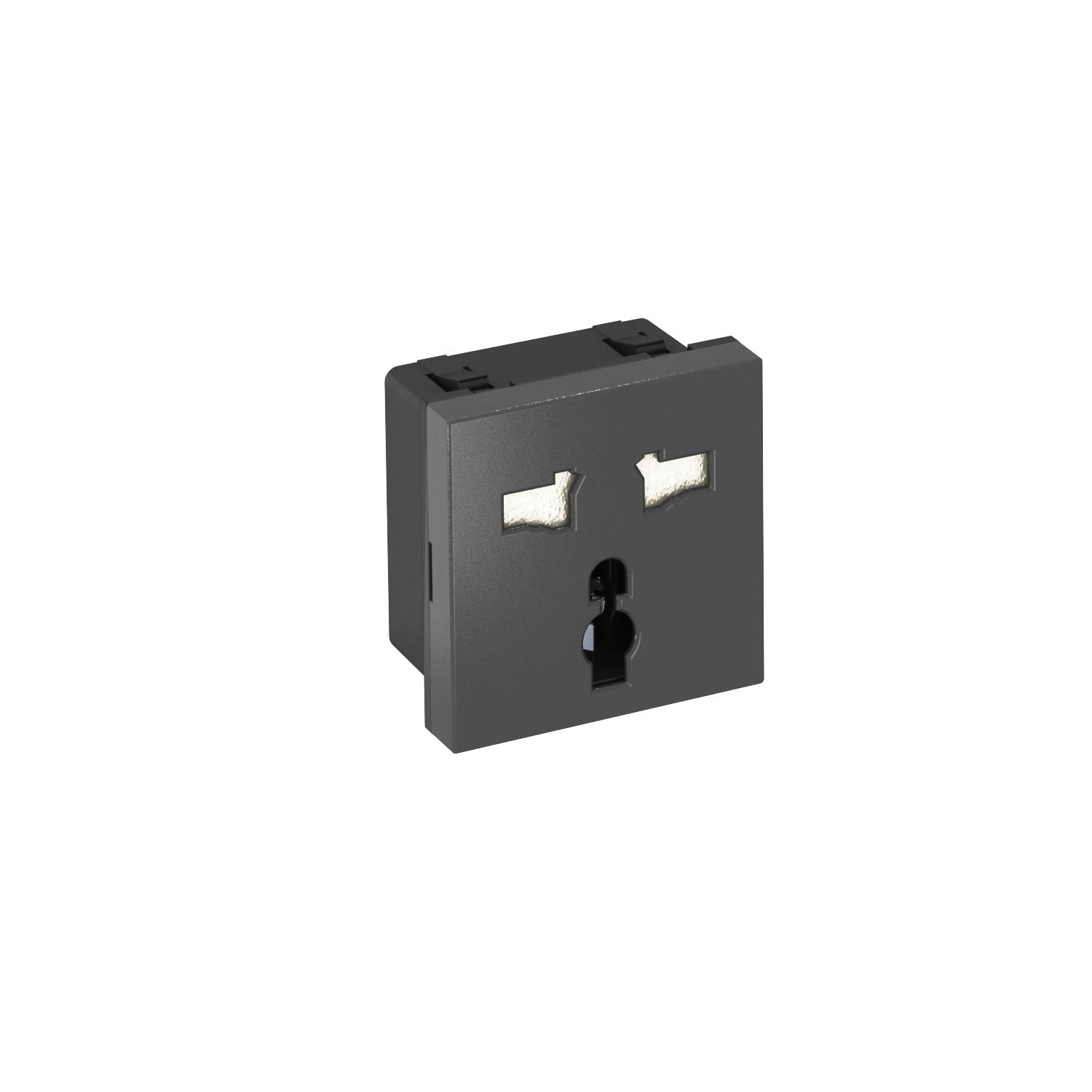

Socket, single 0°, multi-standard version, with increased touch protection, with screw terminals, 2-pin, 5/6/10/13 A, 250 V~.

Technical data

Closable	no
CO2 Footprint (GWP) Cradle-to-Gate	0,0101 kg CO₂e / 1 Piece
Colour	Black-grey; RAL 7021
Connection type	Screw terminal
Cover	Central plate

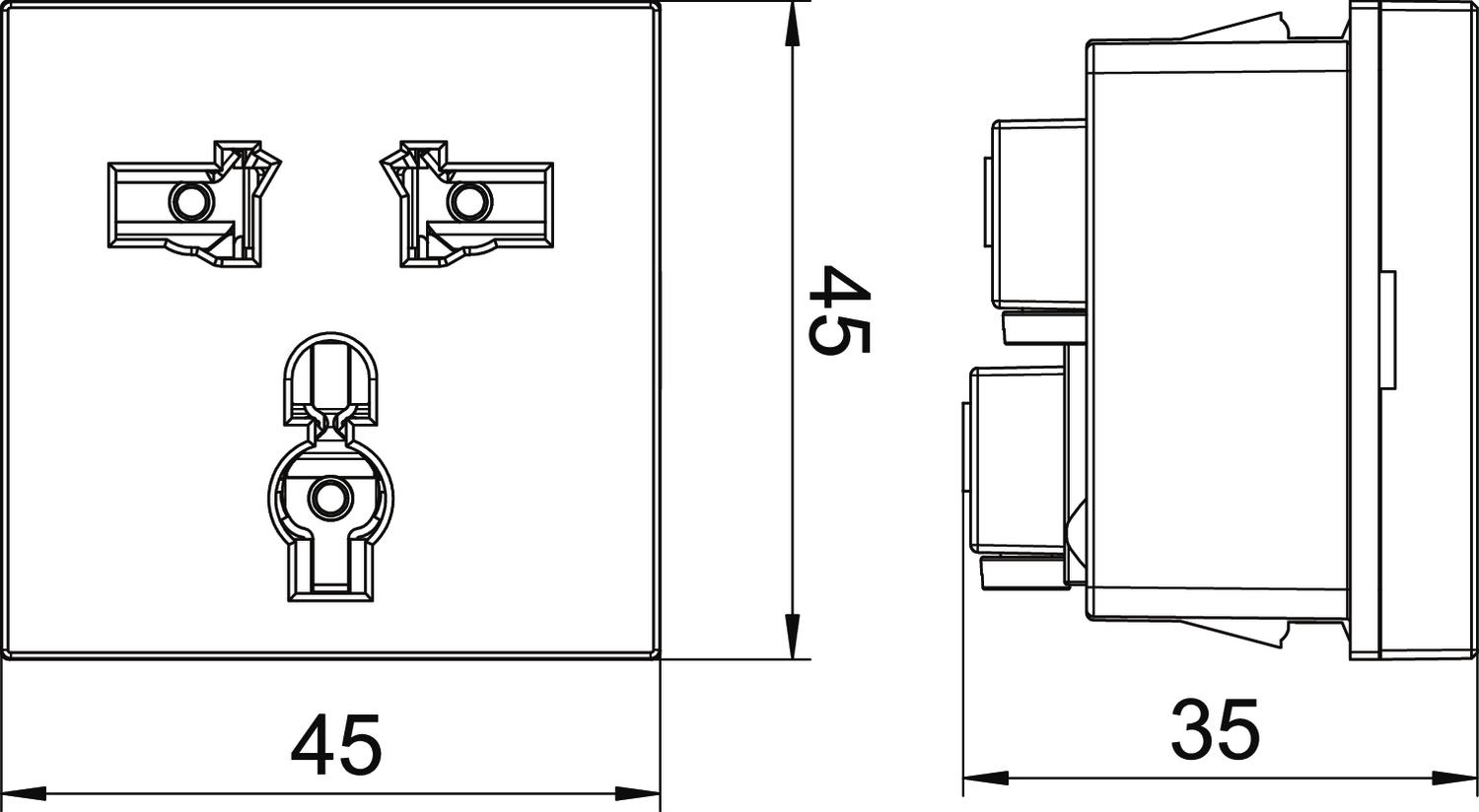

Depth	35 mm
Ejection mechanism	no
Error current protection	no
Fastening type	Lock
For more difficult conditions (according to VDE)	no
Halogen-free	no
Height	45 mm
Hinged cover	no
increased touch protection	yes
Labelling panel	no
Material	Polycarbonate
Mounting type	Device installation duct
Nominal voltage	250 V
Number of poles	2

Number of units	1
Operating temperature, max.	40 °C
Operating temperature, min.	-5 °C
Printed label/coding	Without printing
Protection rating	Other
Rotated central insert	no
Socket angle	0°
Special power supply	Without special power supply
Surface version	Not applicable
Surge protection	no
Transparent	no
Version for	Single 0°
Warning light	no
Width	45 mm
With fine-wire fuse	no
With functional lighting	no
With on/off switch	no
With orientation lighting	no
