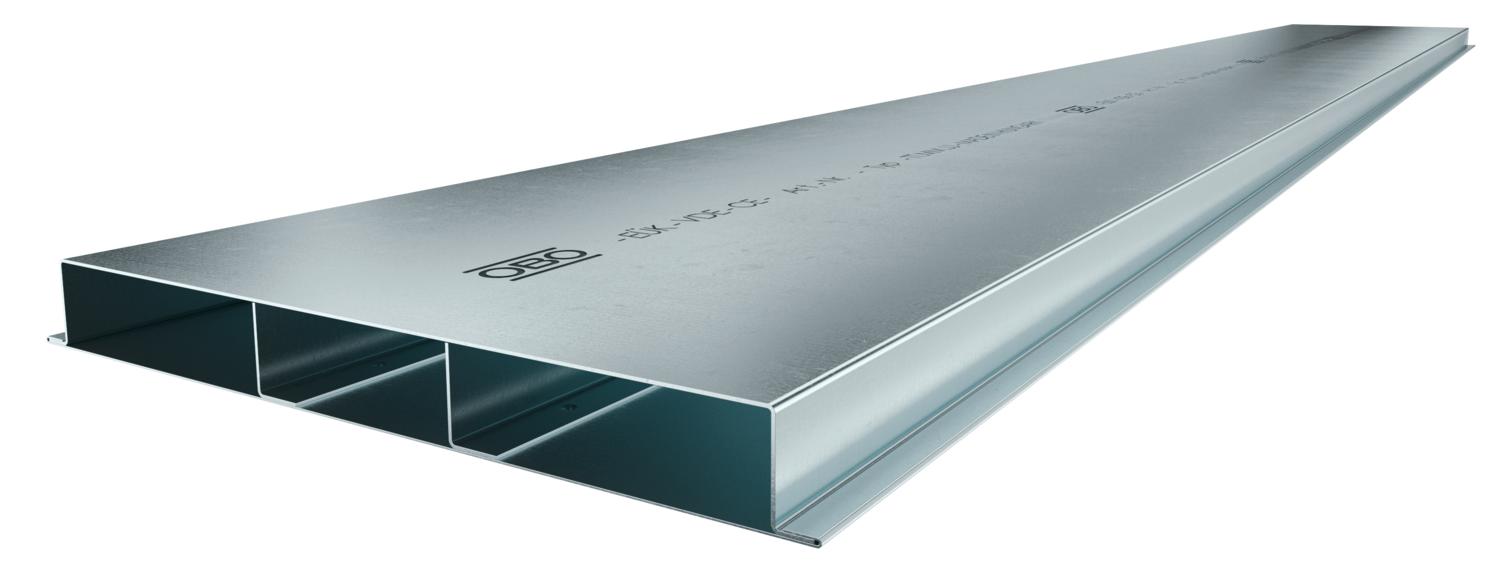

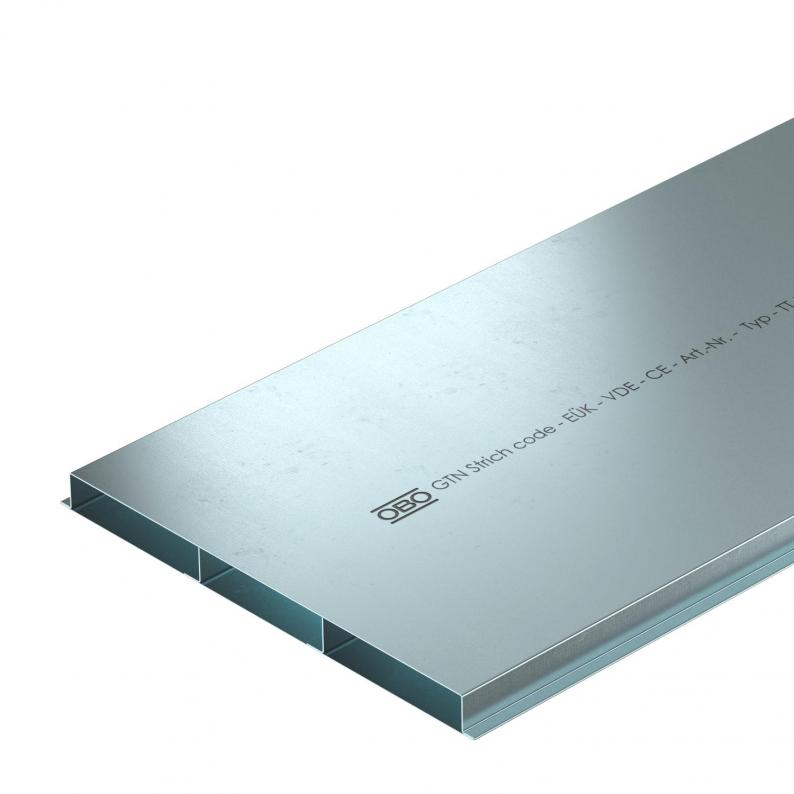

Underfloor installation duct, 3-compartment, duct height 28 mm
Type S3 35028 | Item no. 7400336 | EAN 4012195089384
Item no. / Type
7400336 / S3 35028
This item is a discontinued product!
Smallest selling unit: 2 m
2m
Description
Underfloor installation duct for laying cables under the floor.
Technical data
Dimensions
| Length | 2000 mm |
|---|---|
| Width | 350 mm |
| Height | 28 mm |

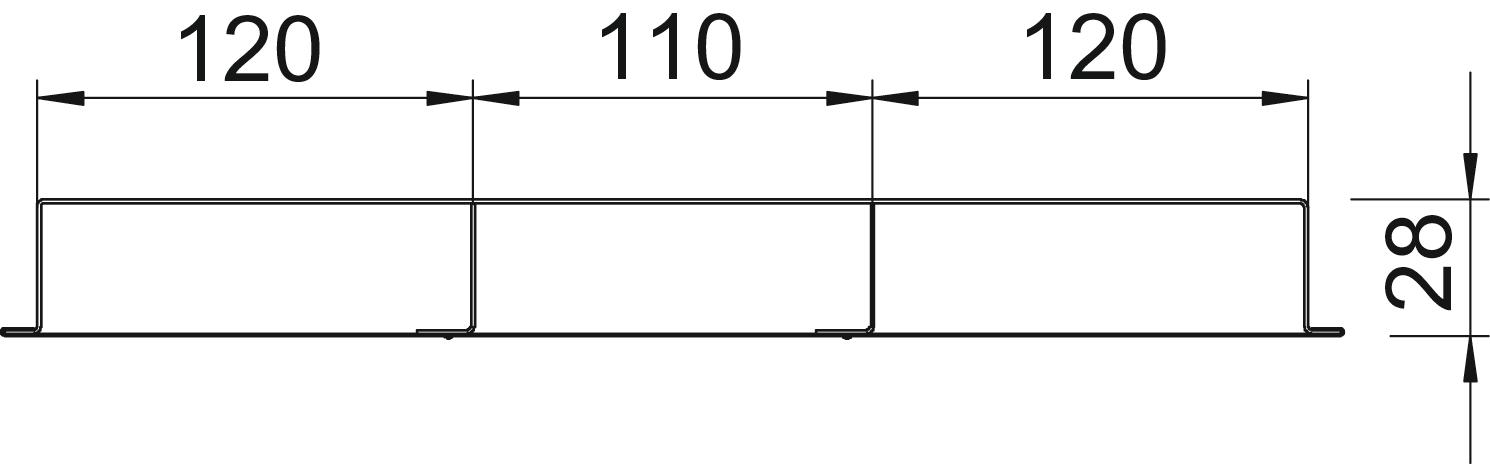

| Dimension b | 110 mm |
| Dimension a | 120 mm |
| Dimension h | 28 mm |
Technical data
| Usable cross-section | 8970 mm² |
|---|---|
| Number of compartments | 3 St. |
| Number of fixed partitions | 2 |
| Cross-section, draw a | 3068 mm² |
| Cross-section, draw b | 2834 mm² |
| Decouplable | no |
| Floor plate | yes |
| Application area | Screed-covered |
| Removable cover | no |
| Duct height, min. | 28 mm |
| Dimension | 2000x350x28 |
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 12,8296 kg CO₂e / 1 Meter |
