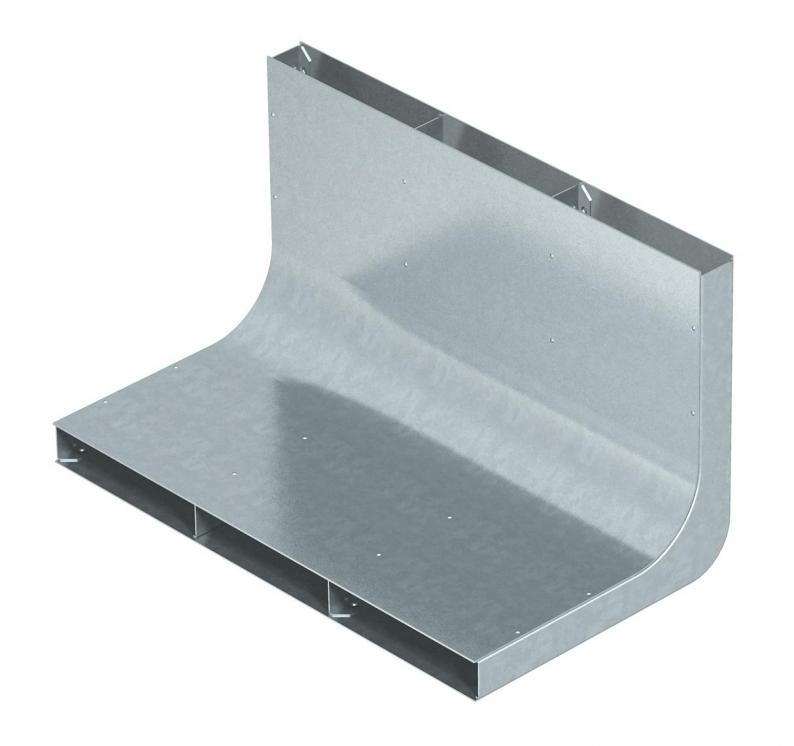

Vertical bend, three-compartment, height 28 mm
Type KV3 35028 | Item no. 7400656 | EAN 4012195090458
Item no. / Type
Width
Number of compartments
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description
For vertical direction changes of screed-covered underfloor installation ducts (wall connections, supplies).
An important precondition for correct underfloor installation is the screed structure.
In the case of a screed-covered system, it is important that the screed thickness of the duct is at least 35 mm, to avoid the formation of cracks (DIN 18560).
Screed height: 60 mm only for on-floor connection technology (Telitank), 70 mm or more for underfloor connection technology.
Technical data

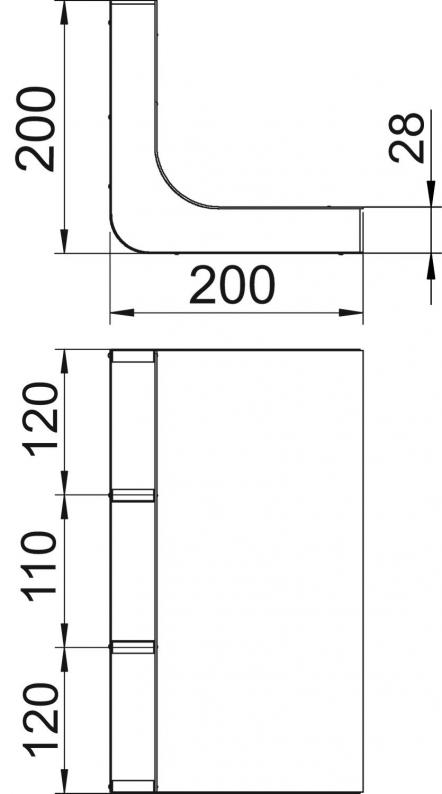

Dimensions
| Length | 200 mm |
|---|---|
| Width | 350 mm |
| Height | 28 mm |
| Dimension b | 110 mm |
| Dimension a | 120 mm |
| Dimension h | 28 mm |
Technical data
| Number of compartments | 3 St. |
|---|---|
| Number of fixed partitions | 2 |
| Cross-section, draw a | 3068 mm² |
| Cross-section, draw b | 2834 mm² |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 350 mm |
| Duct height, min. | 28 mm |
| Surface | Strip galvanized |
| Material | Steel |
