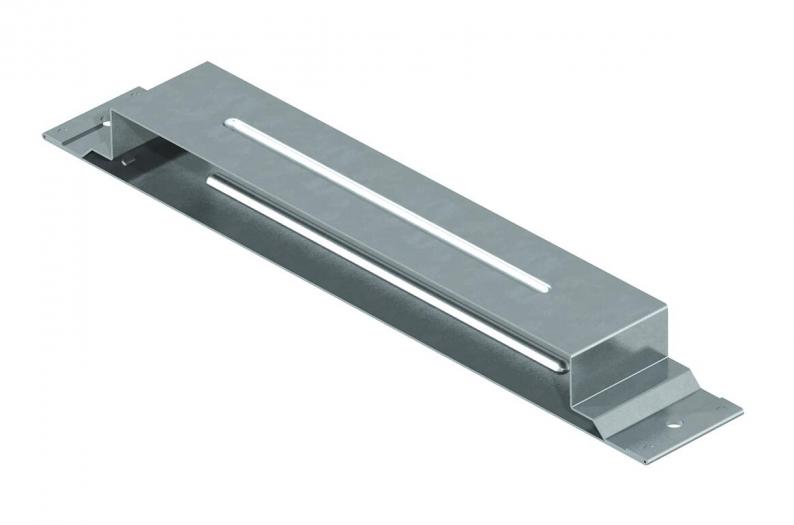

Connection shackle, height 28 mm
Type VL 35028E | Item no. 7400972 | EAN 4012195432968
Item no. / Type
Width
Duct height, min.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description
Duct connectors for conductive mounting of screed-covered underfloor installation duct.
Technical data

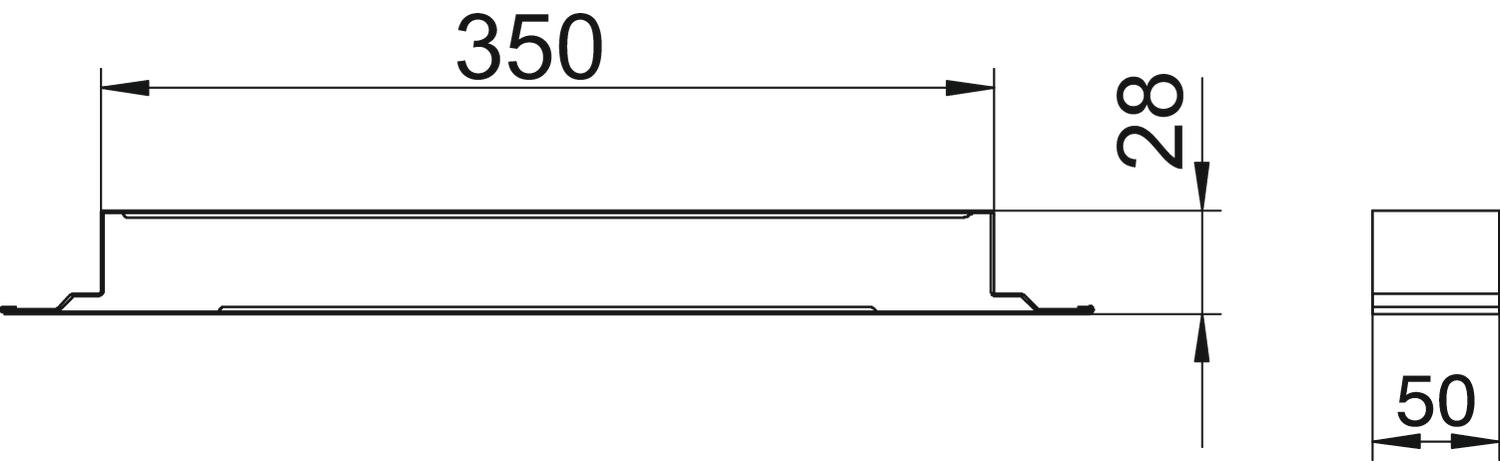

Dimensions
| Width | 350 mm |
|---|---|
| Height | 28 mm |
| Dimension a | 350 mm |
| Dimension h | 28 mm |
Technical data
| Seal installation option | no |
|---|---|
| Floor plate | yes |
| With equipotential bonding | yes |
| Suitable for expansion joint | yes |
| Version for | Strap |
| Duct height, min. | 28 mm |
| Dimension | 50x350x28 |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Duct height, min.
Item no.
VL 19028E
190
28
7400960
VL 25028E
250
28
7400966
VL 35028E
350
28
7400972
Width
VL 19028E
Item no.
7400960
Width
190
Duct height, min.
28
VL 25028E
Item no.
7400966
Width
250
Duct height, min.
28
VL 35028E
Item no.
7400972
Width
350
Duct height, min.
28
