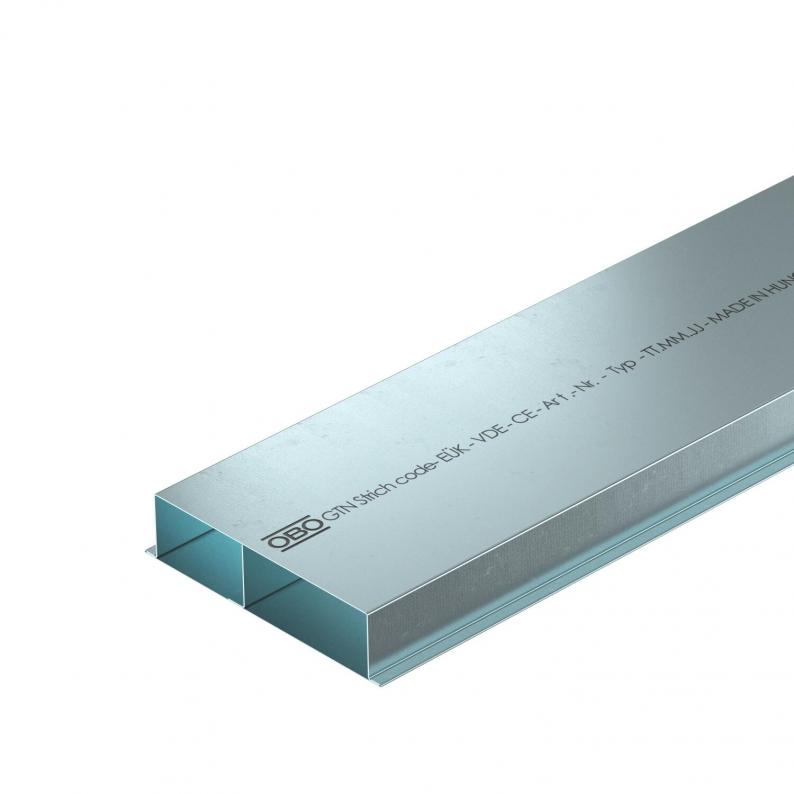

Underfloor installation duct, 2-compartment, trunking height 48 mm
Type S2 19048 | Item no. 7400308 | EAN 4012195089278
Item no. / Type
Length
Width
Number of compartments
This item is a discontinued product!
Smallest selling unit: 2 m
2m
Description
Underfloor installation duct for laying cables under the floor.
Technical data

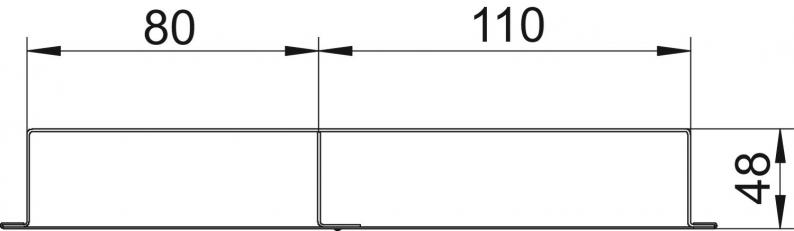

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 190 mm |
| Height | 48 mm |
| Dimension b | 110 mm |
| Dimension a | 80 mm |
| Dimension h | 48 mm |
Technical data
| Usable cross-section | 8556 mm² |
|---|---|
| Number of compartments | 2 St. |
| Number of fixed partitions | 1 |
| Cross-section, draw a | 3588 mm² |
| Cross-section, draw b | 4968 mm² |
| Decouplable | no |
| Floor plate | yes |
| Application area | Screed-covered |
| Removable cover | no |
| Duct height, min. | 48 mm |
| Dimension | 2000x190x48 |
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 8,6764 kg CO₂e / 1 Meter |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (3)
3D data downloads (2)
Tender specifications (2)
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 7400628
Vertical bend, two-compartment, height 48 mmType
KV2 19048
Smallest selling unit: 1 piece
1piece
Variants
Type
Length
Width
Number of compartments
Item no.
S2 19048
2000
190
2
7400308
S2 25048
2000
250
2
7400320
Width
S2 19048
Item no.
7400308
Length
2000
Width
190
Number of compartments
2
S2 25048
Item no.
7400320
Length
2000
Width
250
Number of compartments
2
