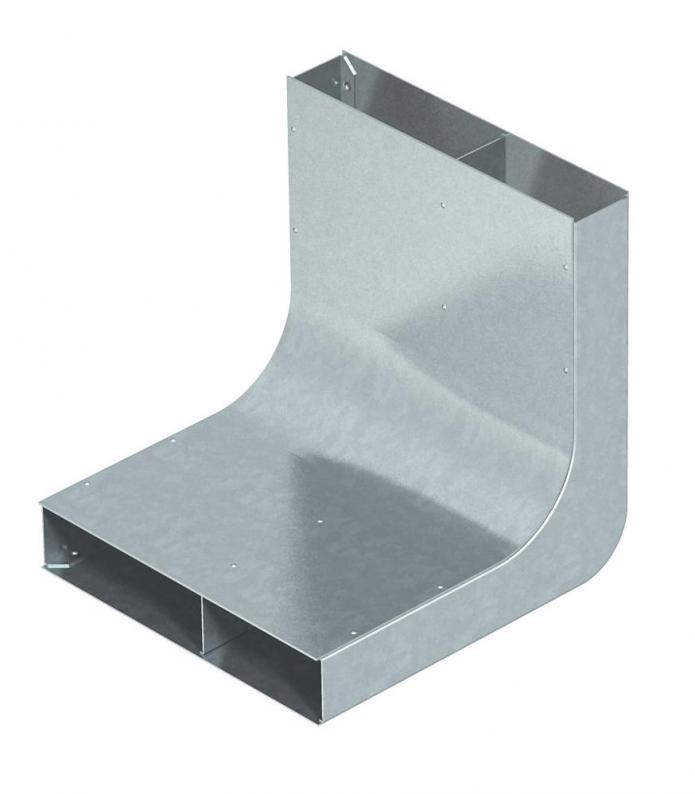

Vertical bend, two-compartment, height 48 mm
Type KV2 19048 | Item no. 7400628 | EAN 4012195090342
Item no. / Type
Width
Number of compartments
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description
For vertical direction changes of screed-covered underfloor installation ducts (wall connections, supplies).
Technical data

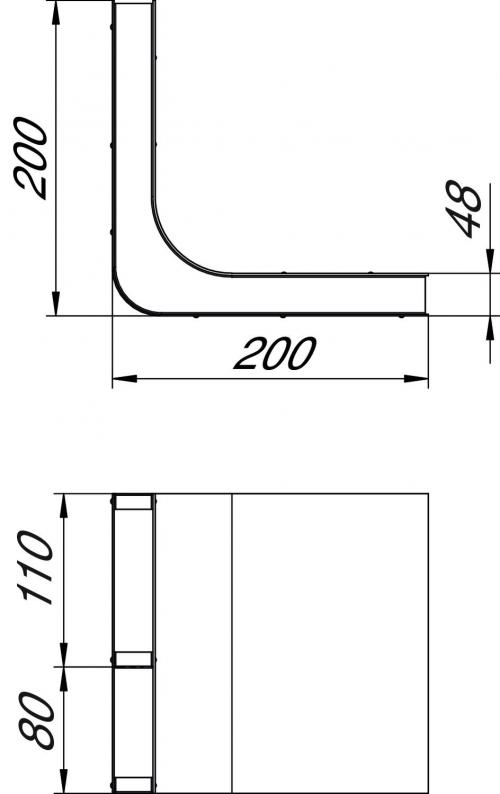

Dimensions
| Length | 200 mm |
|---|---|
| Width | 190 mm |
| Height | 48 mm |
| Dimension b | 110 mm |
| Dimension a | 80 mm |
| Dimension h | 48 mm |
Technical data
| Number of compartments | 2 St. |
|---|---|
| Number of fixed partitions | 1 |
| Cross-section, draw a | 3588 mm² |
| Cross-section, draw b | 4968 mm² |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 190 mm |
| Duct height, min. | 48 mm |
| Surface | Strip galvanized |
| Material | Steel |
