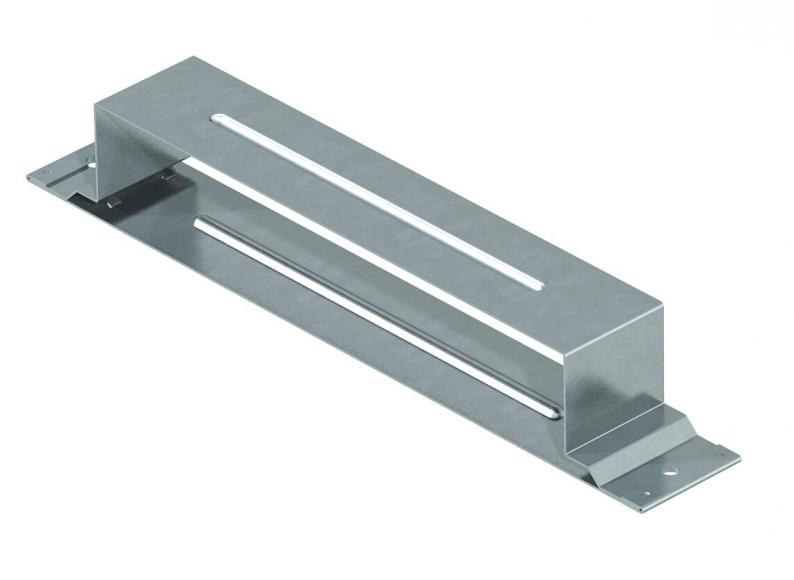

Connection shackle, height 48 mm
Type VL 19048E | Item no. 7400964 | EAN 4012195432890
Item no. / Type
Width
Duct height, min.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description
Duct connectors for conductive mounting of screed-covered underfloor installation duct.
Technical data

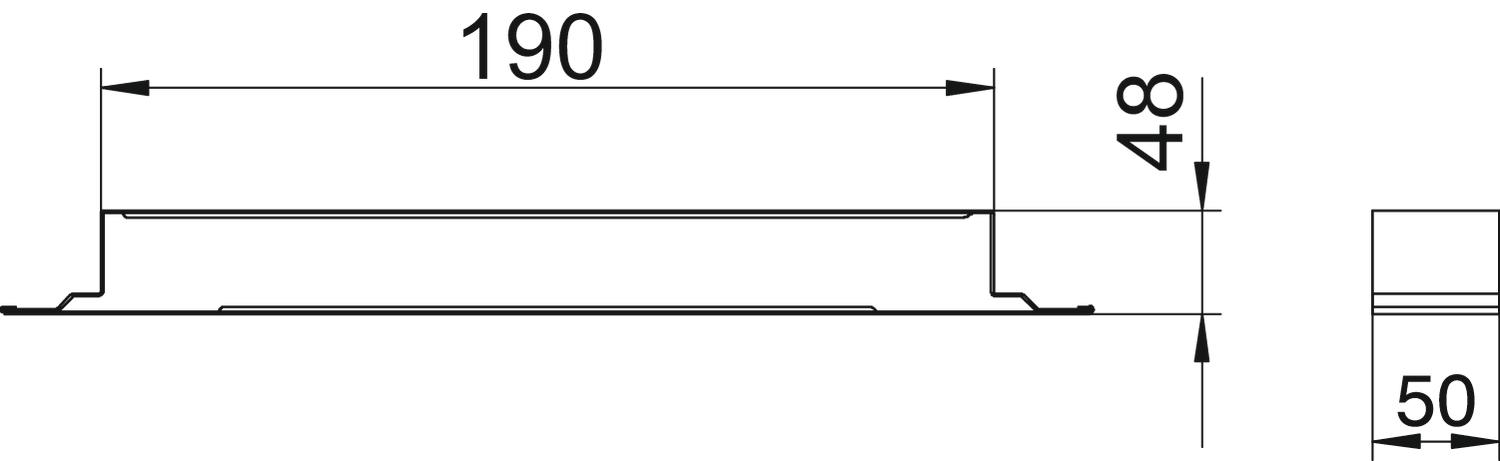

Dimensions
| Width | 190 mm |
|---|---|
| Height | 48 mm |
| Dimension a | 190 mm |
| Dimension h | 48 mm |
Technical data
| Seal installation option | no |
|---|---|
| Floor plate | yes |
| With equipotential bonding | yes |
| Suitable for expansion joint | yes |
| Version for | Strap |
| Duct height, min. | 48 mm |
| Dimension | 50x190x48 |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Duct height, min.
Item no.
VL 19048E
190
48
7400964
VL 35048E
350
48
7400976
Width
VL 19048E
Item no.
7400964
Width
190
Duct height, min.
48
VL 35048E
Item no.
7400976
Width
350
Duct height, min.
48
