Service pole, type ISST70140B
Type ISST70140BRW | Item no. 6290010 | EAN 4012195161202
Item no. / Type
Length
Colour
Fastening type
Tension
Material
Aluminium
Smallest selling unit: 1 piece
1piece
Description

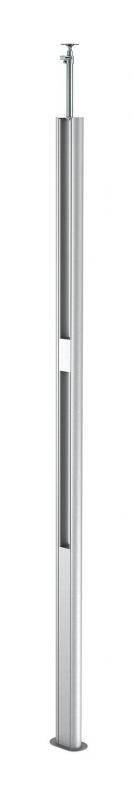

ISS twin aluminium service pole with a 76.5 mm system opening.
Set consists of:
1 single-compartment pole with clamping fastening
Total length: 3,315–3,480 mm
1 fastening option for lighting
1 ceiling fastening with clamping device
1 device installation profile
Length: 1,000 mm
1 aluminium cover
Length: 1,000 mm
1 ISSBP70140 floor plate
The area for device installation is suitable to accept front-locking
device installation sockets of the 71GD... series. The panel to fasten luminaires is attached at a height of 1,850 mm and its own height is 148 mm. It is possible to create various kinds of workplace or general room lighting using the standard wall brackets from lighting manufacturers.
The following accessories can be used, depending on the mounting situation.
Set consists of:
1 single-compartment pole with clamping fastening
Total length: 3,315–3,480 mm
1 fastening option for lighting
1 ceiling fastening with clamping device
1 device installation profile
Length: 1,000 mm
1 aluminium cover
Length: 1,000 mm
1 ISSBP70140 floor plate
The area for device installation is suitable to accept front-locking
device installation sockets of the 71GD... series. The panel to fasten luminaires is attached at a height of 1,850 mm and its own height is 148 mm. It is possible to create various kinds of workplace or general room lighting using the standard wall brackets from lighting manufacturers.
The following accessories can be used, depending on the mounting situation.
Technical data

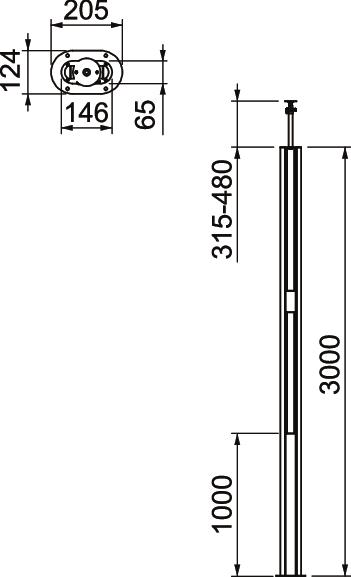

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 146 mm |
| Height | 65 mm |
| Pole height, max. | 3480 mm |
| Pole height, min. | 3315 mm |
Technical data
| Number of compartments | 1 St. |
|---|---|
| Halogen-free | yes |
| Pole shape | Oval |
| Adjustable | yes |
| Height compensation, max. | 480 mm |
| Height compensation, min. | 315 mm |
| Number of usable covers | 1 |
| Changes according to location | no |
| Ceiling mounting | yes |
| Floor mounting | yes |
| Cable entry | Top/bottom |
| Pre-wired | no |
| Continuous profile | no |
| Version for | Single-sided |
| Fastening type | Tension |
| Cover width | 76,5 mm |
| Dimension | 3000x146x65 |
| Material | Aluminium |
| Colour | Pure white; RAL 9010 |
| CO2 Footprint (GWP) Cradle-to-Gate | 101,2469 kg CO2e / 1 Piece |
