70140 floor plate
Type ISSBP70140RW | Item no. 6290120 | EAN 4012195161691
Item no. / Type
Length
Width
Height
Colour
Smallest selling unit: 1 piece
1piece
Description

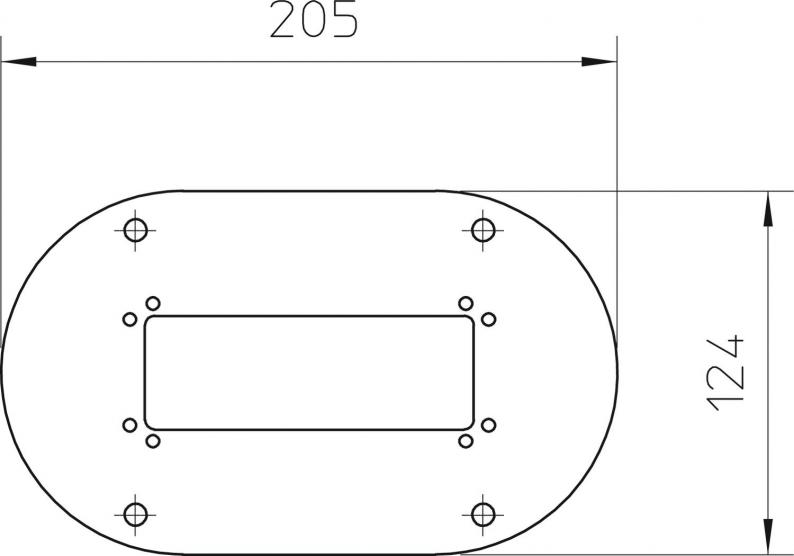

Floor plate with 30 mm visible edge and four fastening holes Ø 8.5 mm. The floor plate is suitable for mounting service poles of type ISST70140, ISSOG70140 and ISST70140B.
Technical data
Dimensions
| Length | 205 mm |
|---|---|
| Width | 124 mm |
| Height | 3 mm |
Technical data
| Halogen-free | yes |
|---|---|
| xxxxx. | no |
| Dimension | 205x124x3 |
| Surface | Strip galvanized / plastic coated |
| Material | Steel |
| Colour | Pure white; RAL 9010 |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,8276 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Accessories
System accessories
Article
Type
Item no.
Amount
Variants
Type
Length
Width
Height
Colour
Item no.
ISSBP70140RW
205
124
3
Pure white; RAL 9010
6290120
ISSBP70140WA
205
124
3
White aluminium; RAL 9006
6290124
Colour
ISSBP70140RW
Item no.
6290120
Length
205
Width
124
Height
3
Colour
Pure white; RAL 9010
ISSBP70140WA
Item no.
6290124
Length
205
Width
124
Height
3
Colour
White aluminium; RAL 9006
