Ceiling panel for ISST70140
Type WAG70140TRW | Item no. 6290200 | EAN 4012195162063
Item no. / Type
6290200 / WAG70140TRW
Smallest selling unit: 1 piece
1piece
Description

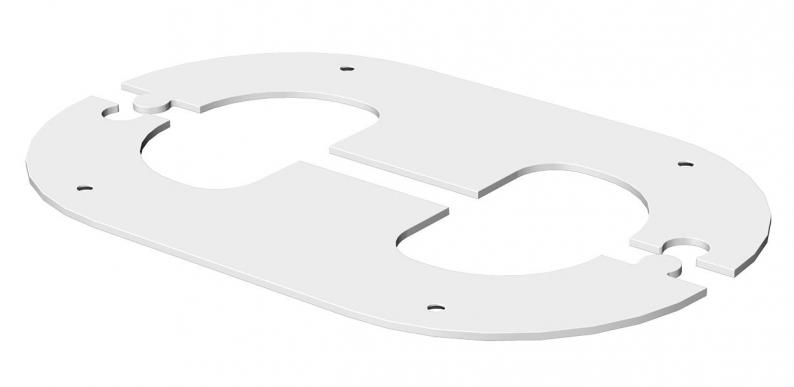

Ceiling rosette for tidy closure of the pole penetration in the ceiling. Suitable for service poles, type ISST70140 and ISST70140B.
Technical data

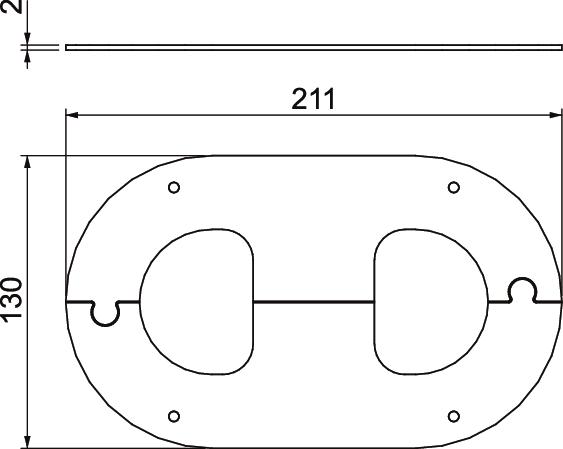

Dimensions
| Length | 211 mm |
|---|---|
| Width | 130 mm |
| Height | 2 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Type of accessory | Rosette |
| Dimension | 211x130x2 |
| Material | Steel |
| Colour | Pure white; RAL 9010 |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,6176 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
