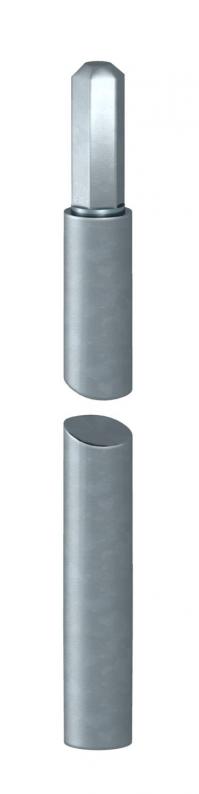

Earth rod OMEX, hot galvanised, 25 mm
Type 219 25 OMEX FT | Item no. 5000025 | EAN 4012195371359
Item no. / Type
5000025 / 219 25 OMEX FT
Material
Steel
Smallest selling unit: 5 piece
5piece
Description
• OMEX system
• With peg and bore for linking together
• With hardened hexagonal pins
• Min. zinc coating 60 µm
• Very good contacting properties with soft metal inlay in the bore hole
• Conforms to the requirements according to VDE 0185-305 (IEC 62305) and DIN EN 62561-2
• With peg and bore for linking together
• With hardened hexagonal pins
• Min. zinc coating 60 µm
• Very good contacting properties with soft metal inlay in the bore hole
• Conforms to the requirements according to VDE 0185-305 (IEC 62305) and DIN EN 62561-2
Technical data
Dimensions
| Length | 1500 mm |
|---|---|
| Dimension D | 25 mm |
Technical data
| Profile type | Round D=25 mm |
|---|---|
| External diameter | 25 mm |
| Short-circuit current (50 HZ)(1 s;≤300°C) | 12,3 kA |
| Lightning current carrying capacity | H/100 kA |
| Dimension | 1,5m |
| Surface | Hot-dip galvanised |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 15,9491 kg CO₂e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (3)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
2710 25 FT
5001226
Smallest selling unit: 5 piece
5piece
2730 25 FT
5001412
Smallest selling unit: 5 piece
5piece
Item no. 3042251
Driving head for ST, BP and OMEX earth rodsType
1820 25
Smallest selling unit: 1 piece
1piece
Item no. 5001226
Connection clip for earthing rod to round cables Rd 8−10Type
2710 25 FT
Smallest selling unit: 5 piece
5piece
