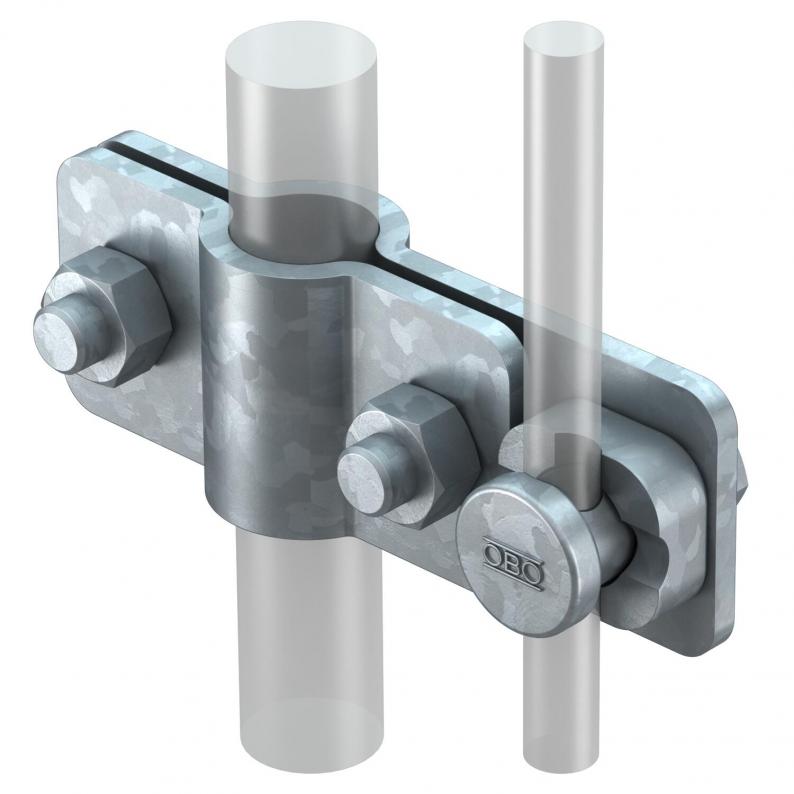

Connection clip for earthing rod to round cables Rd 8−10
Type 2710 25 FT | Item no. 5001226 | EAN 4012195372431
Item no. / Type
for earth rods
Smallest selling unit: 5 piece
5piece
Description
• ST, BP, OMEX and LightEarth system
• On round conductor Rd 8-10
• Incl. connector, type 5001 DIN
• On round conductor Rd 8-10
• Incl. connector, type 5001 DIN
Technical data
Technical data
| Intermediate plate | no |
|---|---|
| Earthing connection diameter | 25 mm |
| Suitable for round conductor diameters, max. | 10 mm |
| Suitable for round conductor diameters, min. | 8 mm |
| Type | Connection clip |
| for earth rods | 25 mm |
| Fit | Rd 8-10 mm |
| Dimension | 25mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Clamping range, max. | 10 mm |
| Clamping range, min. | 8 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0614 kg CO2e / 1 Piece |
Dimensions
| Dimension A | 89 mm |
|---|---|
| Dimension B | 119 mm |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
