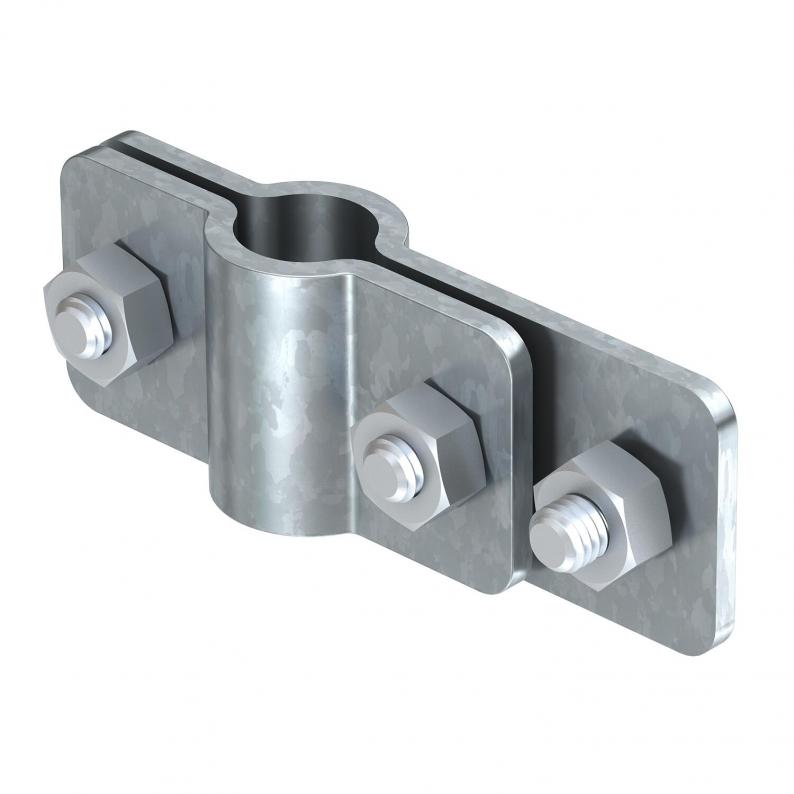

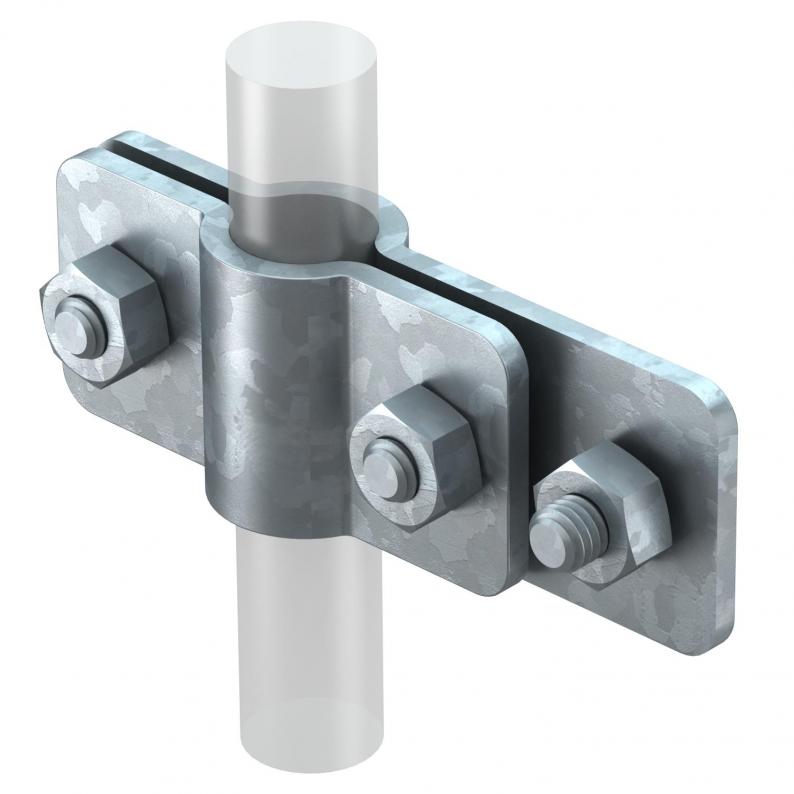

Connection clamp for earth rod on flat conductor FT

Type 2730 25 FT | Item no. 5001412 | EAN 4012195372615

Item no. / Type

for earth rods

Smallest selling unit: 5 piece

Description

• ST, BP, OMEX and LightEarth systems
• On flat conductors
• Including hex-head screw for attaching flat conductors

Intermediate plate	no
Earthing connection diameter	25 mm
Type	Connection clip
Short-circuit current (50 HZ)(1 s;≤300°C)	8,5 kA
for earth rods	25 mm
Dimension	25mm
Surface	Hot-dip galvanised
Material	Steel
CO2 Footprint (GWP) Cradle-to-Gate	0,8374 kg CO2e / 1 Piece

Dimension A	89 mm
Dimension B	119 mm
