Flat conductor, galvanised steel
Type 5052 DIN 30X3.5
|Item no. 5019345
|EAN 4012195680475
Item no. / Type
Width
Height
Smallest selling unit: 30 m
30m
m
Description
• Can be used as a conductor and earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Complies with the requirements of VDE 0185-305 (IEC 62305)
• Zinc coating: ≥ 500 g/m² (approx. 70 µm in mean value)
• For lightning protection, earthing systems and ring equipotential bonding
• Complies with the requirements of VDE 0185-305 (IEC 62305)
• Zinc coating: ≥ 500 g/m² (approx. 70 µm in mean value)
• For lightning protection, earthing systems and ring equipotential bonding
Technical data
Dimensions
| Width | 30 mm |
|---|---|
| Height | 3,5 mm |
| Dimension B | 30 mm |
| Dimension H | 3,5 mm |
Technical data
| Normal ring (ca. kg) | 25 |
|---|---|
| Cross-section | 105 mm² |
| Nomal ring (approx. m) | 30 |
| Dimension | 30x3,5mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Length tolerance ± | 5 % |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
252 8-10 FT
5312310
Smallest selling unit: 25 piece
25piece
piece
252 8-10X16 FT
5312345
Smallest selling unit: 25 piece
25piece
piece

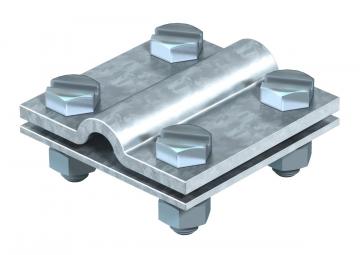

252 8-10XFL30 FT
5312655
Smallest selling unit: 25 piece
25piece
piece
255 30
5314518
Smallest selling unit: 20 piece
20piece
piece
Item no. 5312310
Cross-connector with intermediate plate for Rd 8−10 mm FTType
252 8-10 FT
Smallest selling unit: 25 piece
25piece
piece
Item no. 5312345
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 FTType
252 8-10X16 FT
Smallest selling unit: 25 piece
25piece
piece
Variants
Type
Width
Height
Item no.
5052 DIN 20X2.5
20
2,5
5019340
5052 DIN 25X3
25
3
5019342
5052 DIN 30X3
30
3
5019344
5052 DIN 30X3.5
30
3,5
5019345
5052 DIN 30X3.5
30
3,5
5019347
5052 DIN 30X4
30
4
5019350
5052 DIN 40X4
40
4
5019355
5052 DIN 40X5
40
5
5019360
