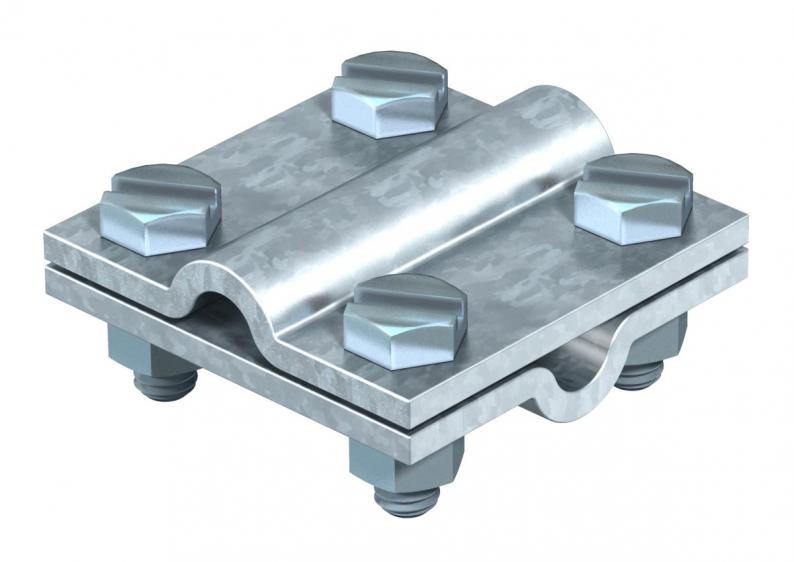

Cross-connector Rd 8−10 mm
Type 253 8X8 | Item no. 5312604 | EAN 4012195418337
Item no. / Type
Fit
Surface
Hot-dip galvanised
Smallest selling unit: 25 piece
25piece
Description
• Meets the requirements of VDE 0185-305-3 (IEC/EN 62305-3)
• Fit: Rd 8-10 x Rd 8-10
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8 (F)
• Fit: Rd 8-10 x Rd 8-10
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8 (F)
Technical data
Technical data
| Intermediate plate | no |
|---|---|
| Type of fastening screw | Hexagonal bolt |
| Type of connector | Cross-connectors |
| Suitable for connection | Round conductor Rd 8–10 / Rd 8–10 |
| Lightning current carrying capacity | H/100 kA |
| Fit | Rd 8-10 mm |
| Dimension | 8-10mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5112 kg CO2e / 1 Piece |

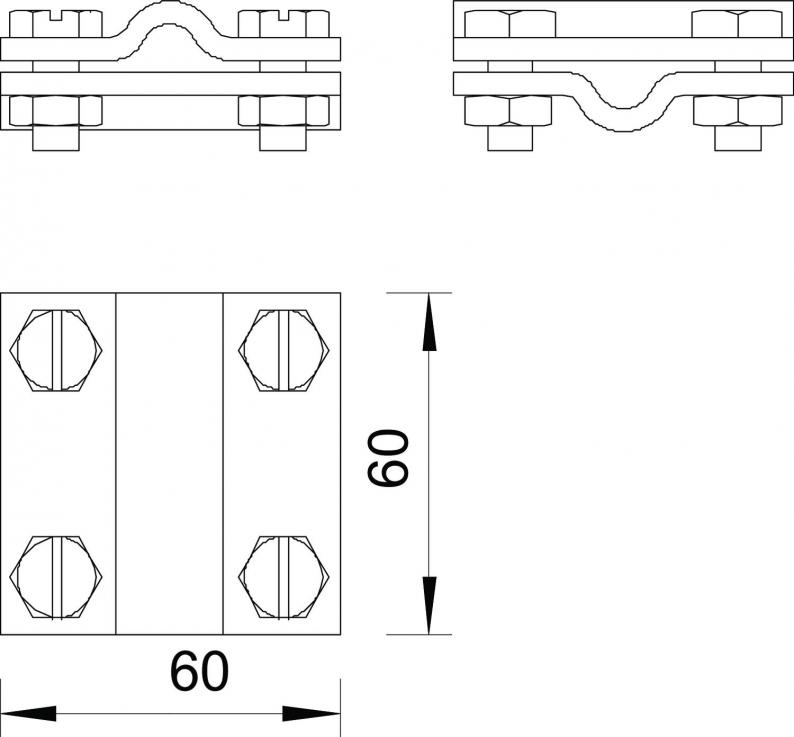

Dimensions
| Dimension A | 60 mm |
|---|---|
| Dimension B | 60 mm |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (3)
Tender specifications (2)
Variants
Type
Fit
Surface
Item no.
253 S3 FT
Rd 8-10
Hot-dip galvanised
5312592
253 8X8
Rd 8-10
Hot-dip galvanised
5312604
253 S3 FT
Item no.
5312592
Fit
Rd 8-10
Surface
Hot-dip galvanised
253 8X8
Item no.
5312604
Fit
Rd 8-10
Surface
Hot-dip galvanised
