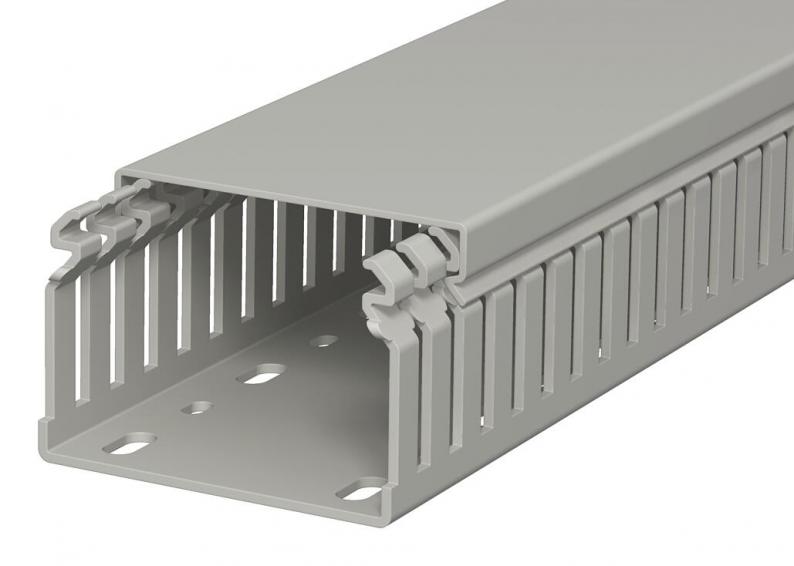

Wiring trunking, type LKV 50075
Type LKV 50075
|Item no. 6178316
|EAN 4012196010073
Item no. / Type
6178316 / LKV 50075
Fastening type
Base perforation
Colour
Stone grey; RAL 7030
Smallest selling unit: 24 m
24m
m
Description
Wiring duct according to DIN EN 50085-2-3, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a DIN duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.
Technical data

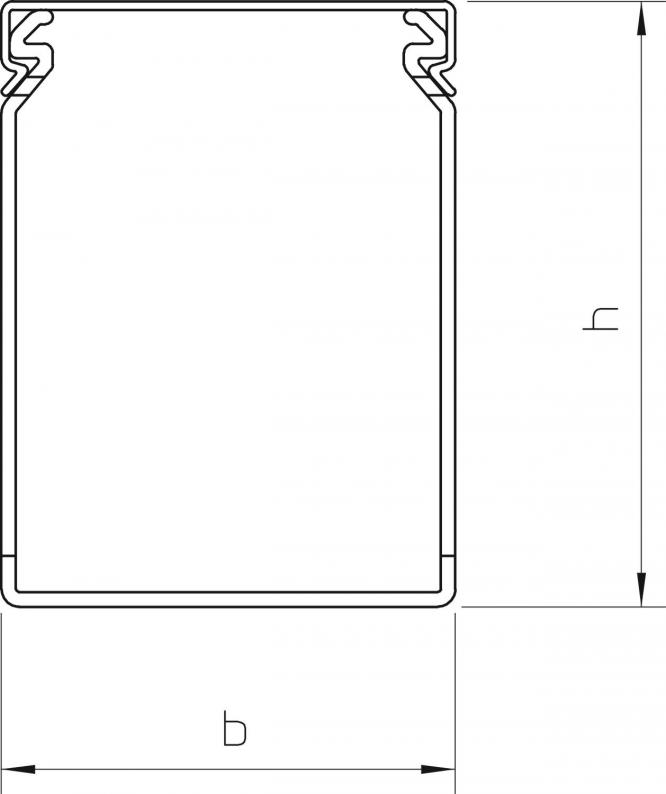

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 75 mm |
| Height | 50 mm |
Technical data
| Usable cross-section | 31,6 cm² |
|---|---|
| Diameter | 0 mm |
| Halogen-free | no |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Flexible | no |
| With cover | yes |
| Slot spacing | 12,5 mm |
| Slot width | 5 mm |
| Fastening type | Base perforation |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 50x75x2000 |
| Material | Polyvinylchloride |
| Colour | Stone grey; RAL 7030 |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,5839 kg CO2e / 1 Meter |
