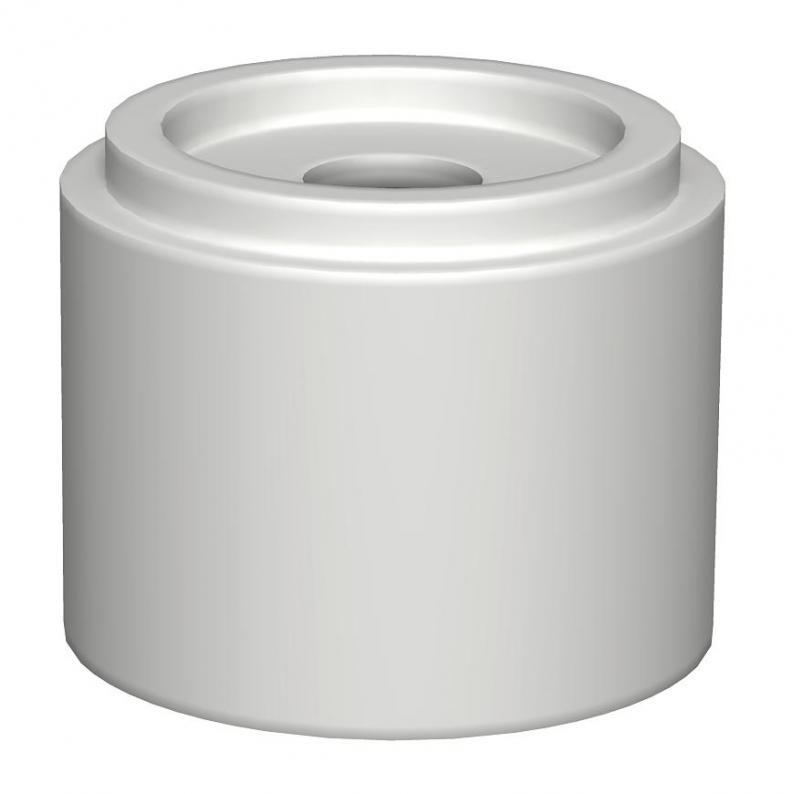

Spacer
Type AH2
|Item no. 6178542
|EAN 4012196014996
Item no. / Type
Dimension a
Colour
Grey
Smallest selling unit: 100 piece
100piece
piece
Description
Stackable spacer for height compensation between the different component heights.
Height 20 mm, Ø 24 mm
Height 20 mm, Ø 24 mm
Technical data
Technical data
| Diameter | 24 mm |
|---|---|
| Halogen-free | no |
| Hardened | no |
| Inner diameter | 6,5 mm |
| With toothing | no |
| External diameter | 24 mm |
| Dimension | H 20mm |
| Material | Polyvinylchloride |
| Colour | Grey |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0201 kg CO2e / 1 Piece |
Dimensions
| Dimension a | 20 mm |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)
Variants
Type
Dimension a
Colour
Item no.
AH1
12
Grey
6178540
AH2
20
Grey
6178542
Dimension a
AH1
Item no.
6178540
Dimension a
12
Colour
Grey
AH2
Item no.
6178542
Dimension a
20
Colour
Grey
