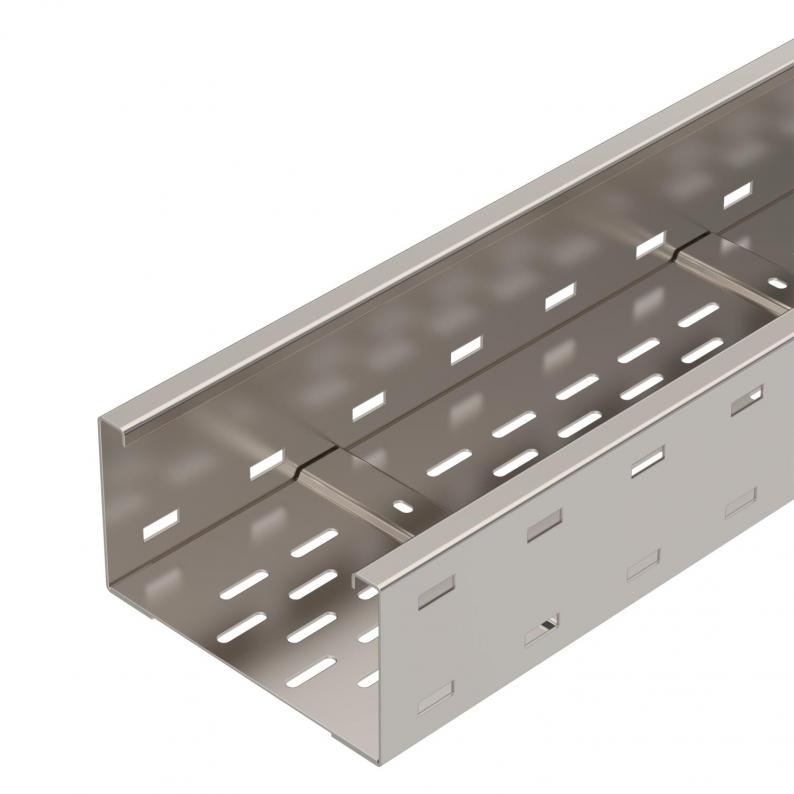

Wide span cable tray WKSG 110 A2

Wide span cable tray WKSG 110 A2

Type WKSG 120 A2 | Item no. 6098161 | EAN 4012195683506

Show all variants
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no

Smallest selling unit: 6 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Wide span cable tray system, perforated, with a side height of 110 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Straight connectors of type WRVL 110 should be ordered separately and in the appropriate quantity.

  • Magnetic shield insulation
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wide span cable tray, side height, 110 mm
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length6000 mm
Width200 mm
Height110 mm
Dimension L6000 mm
Dimension B200 mm

Technical data

Maintain electrical functionsno
Side perforationyes
Connector versionWithout connectors
Wide-span versionyes
Usable cross-section202 cm²
Rustproof steel, pickledno
Plate thickness2 mm
Mounting perforation in baseyes
Usable cross-section20200 mm²
Dimension110 X 200
Dimension110x200x6000
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Usable length6000 mm
Type of connector, cable support systemScrewed
CO2 Footprint (GWP) Cradle-to-Gate35,9073 kg CO2e / 1 Meter

Loads

Support spacing 3.0 m2,5 kN/m
Support spacing 3.5 m2,01 kN/m
Support spacing 4.0 m1,6 kN/m
Support spacing 4.5 m1,32 kN/m
Support spacing 5.0 m1,1 kN/m
Support spacing 6.0 m0,75 kN/m
Support spacing 8.0 m0,2 kN/m
Support spacing 7.0 m0,45 kN/m
Load diagram, wide span cable tray, type WKSG 110

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (5)
Instructions and Aid (1)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories

Item no. 6091229

Straight connector A2
Type
WRVL 110 A2

Smallest selling unit: 2 piece

Type
WDRL 1116 20 A2

Smallest selling unit: 3 m

Item no. 6062173

Barrier strip 85 A2
Type
TSG 85 A2

Smallest selling unit: 3 m

Variants

Width
WKSG 120 A2
Item no.
6098161
Length
6000
Width
200
Maintain electrical functions
no
Plate thickness
2

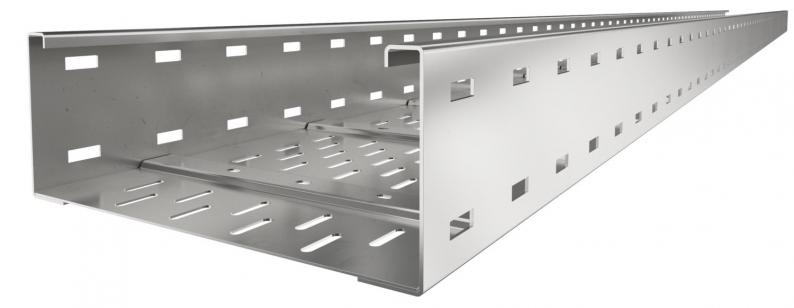

WKSG 130 A2
Item no.
6098165
Length
6000
Width
300
Maintain electrical functions
no
Plate thickness
2
WKSG 140 A2
Item no.
6098169
Length
6000
Width
400
Maintain electrical functions
no
Plate thickness
2
WKSG 150 A2
Item no.
6098173
Length
6000
Width
500
Maintain electrical functions
no
Plate thickness
2
WKSG 160 A2
Item no.
6098177
Length
6000
Width
600
Maintain electrical functions
no
Plate thickness
2
