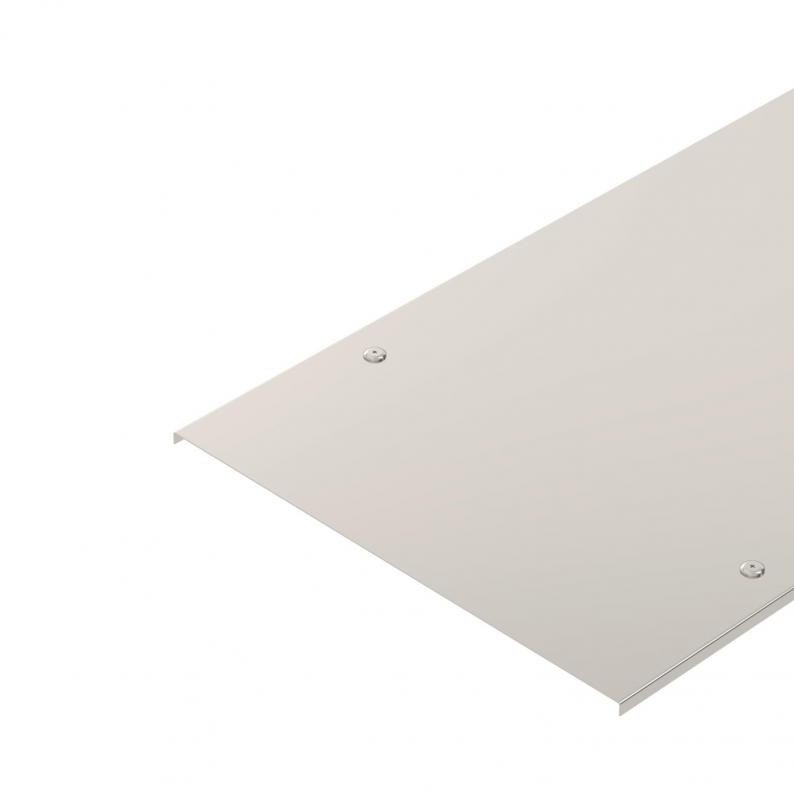

Cover with turn buckle A2

Cover with turn buckle A2

Type WDRL 1116 20 A2 | Item no. 6227360 | EAN 4012195751267

Show all variants
Item no. / Type
Length
Width
Plate thickness

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsVariants

Description

Cover for wide span trays and ladders with the side height 110 and 160 mm.
Take appropriate constructive protection measures if there are high wind speeds.

Transverse bead from 500 mm width.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wide span cable tray, side height, 110 mm
  • Wide span cable tray, side height, 160 mm
  • Wide span cable ladder, side height 110 mm
  • Wide span cable ladder, side height 160 mm
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3000 mm
Width200 mm
Height13 mm
Dimension L3000 mm
Dimension B200 mm
Dimension H15 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Plate thickness1,5 mm
Number of turn buckles6 St.
Suitable for mesh cable trayno
Suitable for cable ladderyes
Suitable for cable trayyes
Fastening typeSash lock
Dimension200x3000
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
CO2 Footprint (GWP) Cradle-to-Gate9,9391 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (3)
Tender specifications (2)

Variants

Width
WDRL 1116 20 A2
Item no.
6227360
Length
3000
Width
200
Plate thickness
1,5
WDRL 1116 30 A2
Item no.
6227362
Length
3000
Width
300
Plate thickness
1,5
WDRL 1116 40 A2
Item no.
6227364
Length
3000
Width
400
Plate thickness
1,5
WDRL 1116 50 A2
Item no.
6227366
Length
3000
Width
500
Plate thickness
1,5
WDRL 1116 60 A2
Item no.
6227368
Length
3000
Width
600
Plate thickness
1,5
