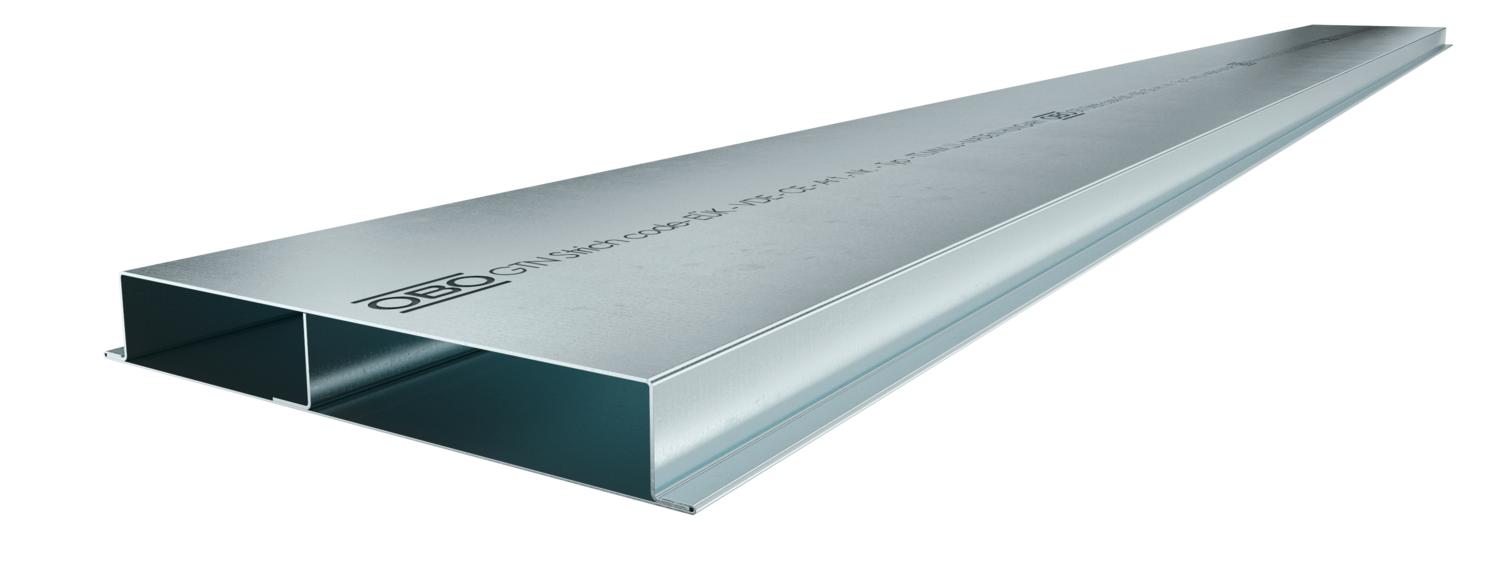

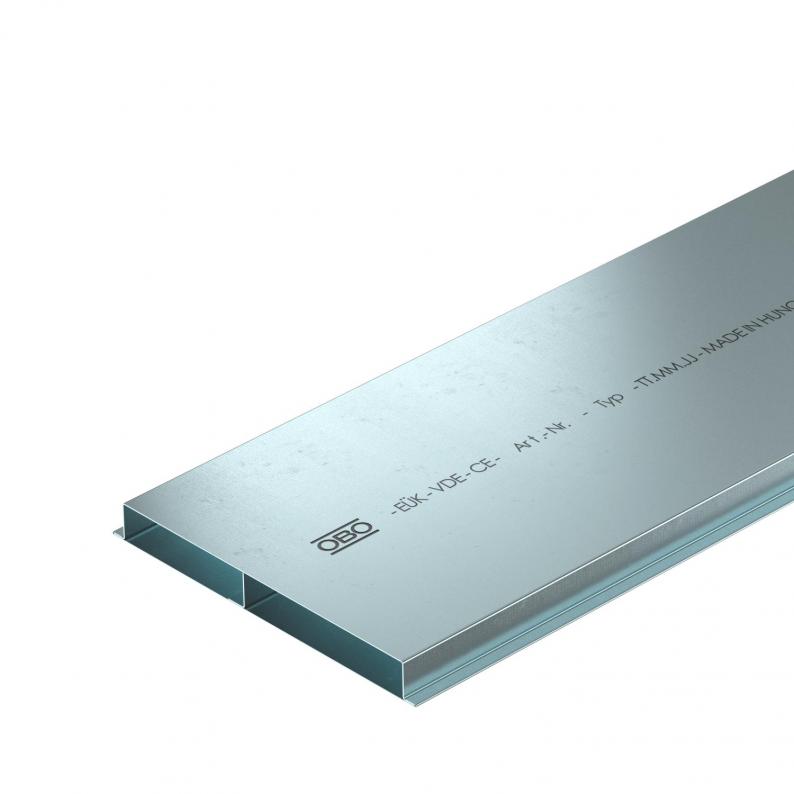

Underfloor installation duct, 2-compartment, trunking height 28 mm
Type S2 25028 | Item no. 7400312 | EAN 4012195089285
Item no. / Type
7400312 / S2 25028
This item is a discontinued product!
Smallest selling unit: 2 m
2m
Description
Underfloor installation duct for laying cables under the floor.
Technical data
Dimensions
| Length | 2000 mm |
|---|---|
| Width | 250 mm |
| Height | 28 mm |

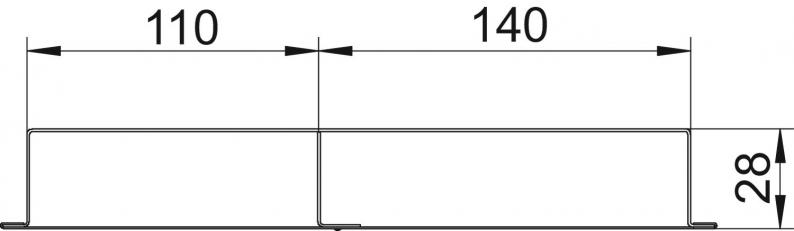

| Dimension b | 140 mm |
| Dimension a | 110 mm |
| Dimension h | 28 mm |
Technical data
| Usable cross-section | 6396 mm² |
|---|---|
| Number of compartments | 2 St. |
| Number of fixed partitions | 1 |
| Cross-section, draw a | 2808 mm² |
| Cross-section, draw b | 3588 mm² |
| Decouplable | no |
| Floor plate | yes |
| Application area | Screed-covered |
| Removable cover | no |
| Dimension | 2000x250x28 |
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 9,304 kg CO₂e / 1 Meter |
