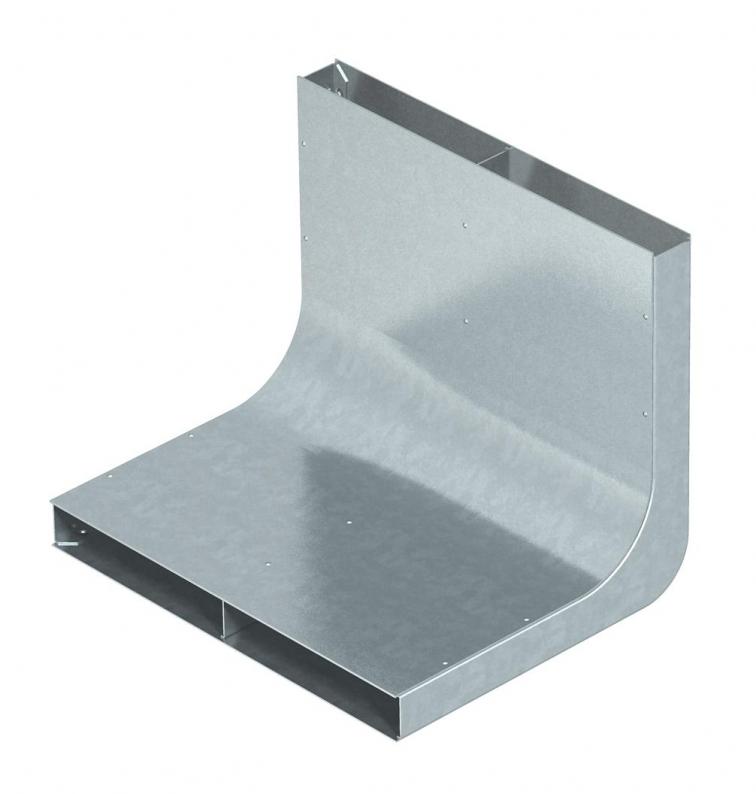

Vertical bend, two-compartment, height 28 mm
Type KV2 25028 | Item no. 7400632 | EAN 4012195090359
Item no. / Type
Width
Number of compartments
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description
For vertical direction changes of screed-covered underfloor installation ducts (wall connections, supplies).
Technical data

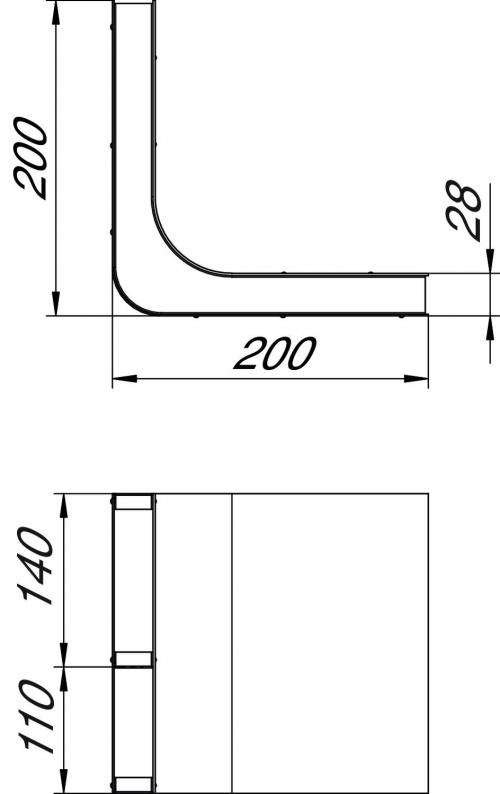

Dimensions
| Length | 200 mm |
|---|---|
| Width | 250 mm |
| Height | 28 mm |
| Dimension b | 140 mm |
| Dimension a | 110 mm |
| Dimension h | 28 mm |
Technical data
| Number of compartments | 2 St. |
|---|---|
| Number of fixed partitions | 1 |
| Cross-section, draw a | 2808 mm² |
| Cross-section, draw b | 3588 mm² |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 250 mm |
| Duct height, min. | 28 mm |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Number of compartments
Item no.
KV2 19028
190
2
7400620
KV2 25028
250
2
7400632
Width
KV2 19028
Item no.
7400620
Width
190
Number of compartments
2
KV2 25028
Item no.
7400632
Width
250
Number of compartments
2
