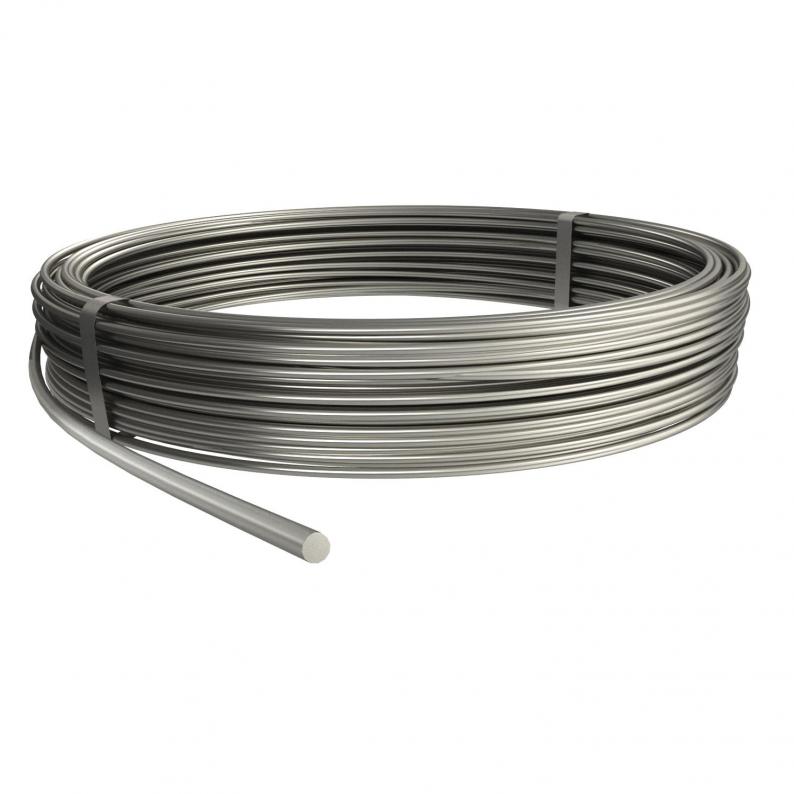

Round conductor, stainless steel A2
Type RD 10-V2A | Item no. 5021227 | EAN 4012195801375
Item no. / Type
Diameter
Normal ring (ca. kg)
Cross-section
Nomal ring (approx. m)
Material
Smallest selling unit: 50 m
50m
Description
• Can be used as a conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• RD 10-V4A for applications in the earth
• According to the foundation earth electrode standard DIN 18014, V4A is required in the earth
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• RD 10-V4A for applications in the earth
• According to the foundation earth electrode standard DIN 18014, V4A is required in the earth
Technical data
Technical data
| Diameter | 10 mm |
|---|---|
| Normal ring (ca. kg) | 32 |
| High voltage-resistant, insulated version | no |
| Number of individual wires | 1 |
| Material property | Miscellaneous |
| Material jacket | Without |
| Cross-section | 78 mm² |
| Nomal ring (approx. m) | 50 |
| Dimension | 10mm |
| Material | Stainless steel 1.4301 |
| Length tolerance ± | 5 % |

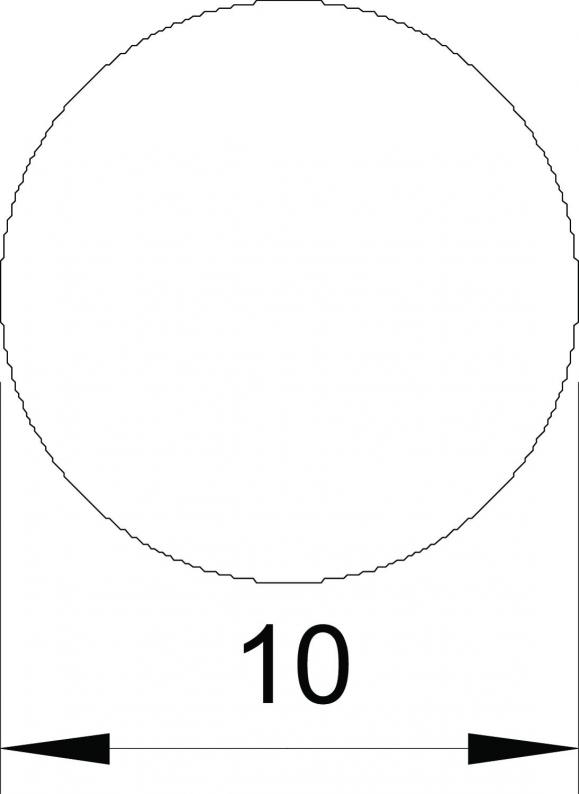

Dimensions
| Dimension D | 10 mm |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
ProtectionBall
5018014
Smallest selling unit: 25 piece
25piece
177 20 VA M6
5207339
Smallest selling unit: 20 piece
20piece
252 8-10 V4A
5312318
Smallest selling unit: 10 piece
10piece
252 8-10x16 V4A
5312346
Smallest selling unit: 10 piece
10piece
253 8-10 V4A
5312582
Smallest selling unit: 25 piece
25piece
Item no. 5018014
Protective cap for connection lugs, reflectiveType
ProtectionBall
Smallest selling unit: 25 piece
25piece
Item no. 5207339
Cable bracket for Rd 8 mm, through-way Ø 5 mmType
177 20 VA M6
Smallest selling unit: 20 piece
20piece
Variants
Type
Diameter
Normal ring (ca. kg)
Cross-section
Nomal ring (approx. m)
Material
Item no.
RD 10-V2A
10
32
78
50
Stainless steel 1.4301
5021227
RD 8-V2A
8
50
50
125
Stainless steel 1.4301
5021235
RD 10-V2A
10
50
78
80
Stainless steel 1.4301
5021239
RD 10-V4A 20
10
12
78
20
Stainless steel 1.4571/1.4404
5021640
RD 10-V4A
10
32
78
50
Stainless steel 1.4571/1.4404
5021642
RD 8-V4A
8
50
50
125
Stainless steel 1.4571/1.4404
5021644
RD 10-V4A
10
50
78
80
Stainless steel 1.4571/1.4404
5021647
Diameter
Normal ring
(ca. kg)
Cross-section
Nomal ring
(approx. m)
Material
RD 10-V2A
Item no.
5021227
Diameter
10
Normal ring (ca. kg)
32
Cross-section
78
Nomal ring (approx. m)
50
Material
Stainless steel 1.4301
RD 8-V2A
Item no.
5021235
Diameter
8
Normal ring (ca. kg)
50
Cross-section
50
Nomal ring (approx. m)
125
Material
Stainless steel 1.4301
RD 10-V2A
Item no.
5021239
Diameter
10
Normal ring (ca. kg)
50
Cross-section
78
Nomal ring (approx. m)
80
Material
Stainless steel 1.4301
RD 10-V4A 20
Item no.
5021640
Diameter
10
Normal ring (ca. kg)
12
Cross-section
78
Nomal ring (approx. m)
20
Material
Stainless steel 1.4571/1.4404
RD 10-V4A
Item no.
5021642
Diameter
10
Normal ring (ca. kg)
32
Cross-section
78
Nomal ring (approx. m)
50
Material
Stainless steel 1.4571/1.4404
RD 8-V4A
Item no.
5021644
Diameter
8
Normal ring (ca. kg)
50
Cross-section
50
Nomal ring (approx. m)
125
Material
Stainless steel 1.4571/1.4404
RD 10-V4A
Item no.
5021647
Diameter
10
Normal ring (ca. kg)
50
Cross-section
78
Nomal ring (approx. m)
80
Material
Stainless steel 1.4571/1.4404
