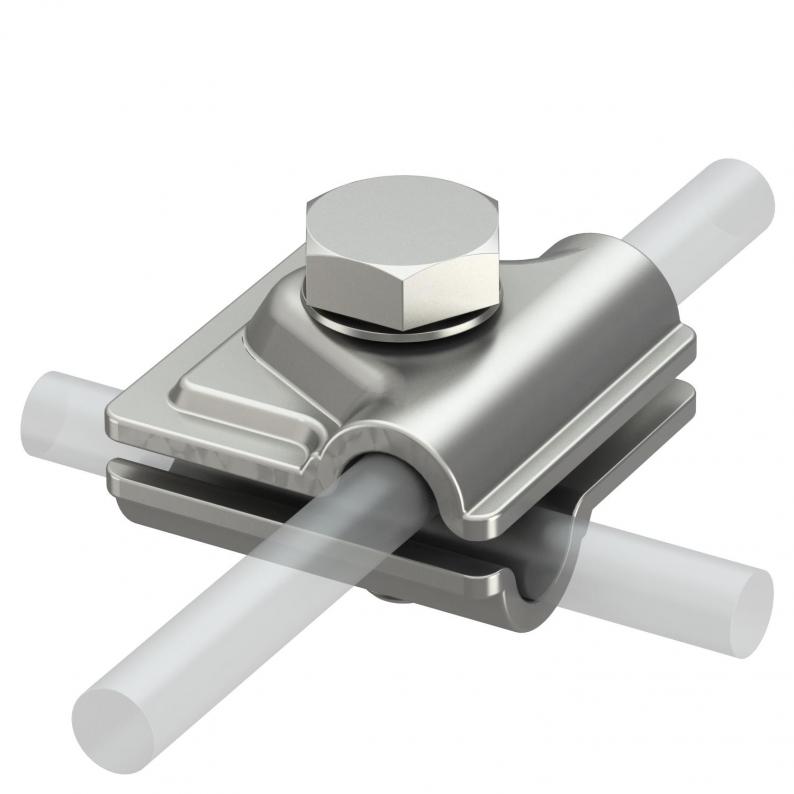

Vario quick connector A4
Type 249 8-10 V4A
|Item no. 5311404
|EAN 4012196466283
Item no. / Type
5311404 / 249 8-10 V4A
Smallest selling unit: 10 piece
10piece
piece
Description
• For T, cross-over and parallel connections
• Complete component made of A4
• Quick mounting using an M10 x 30 bolt, made from rustproof stainless steel
• Meets the requirements of VDE 0185-305 (IEC 62305)
• Complete component made of A4
• Quick mounting using an M10 x 30 bolt, made from rustproof stainless steel
• Meets the requirements of VDE 0185-305 (IEC 62305)
Technical data
Dimensions
| Length | 40 mm |
|---|---|
| Dimension A | 40 mm |
Technical data
| Intermediate plate | no |
|---|---|
| Type of fastening screw | Hexagonal bolt |
| Type of connector | Multipurpose connection clamp |
| Suitable for connection | Round conductor Rd 8–10 / Rd 8–10 |
| TBS application | Connection system |
| Connection | Round conductor |
| Short-circuit current (50 HZ)(1 s;≤300°C) | 1,4 kA |
| Lightning current carrying capacity | H/100 kA |
| Round conductor diameter, conductor 1, min. | 8 mm |
| Round conductor diameter, conductor 1, max. | 10 mm |
| Round conductor diameter, conductor 2, min. | 8 mm |
| Round conductor diameter, conductor 2, max. | 10 mm |
| Fit | Rd 8-10 mm |
| Dimension | 40x40mm |
| Material | Stainless steel 1.4571/1.4404 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6844 kg CO2e / 1 Piece |
