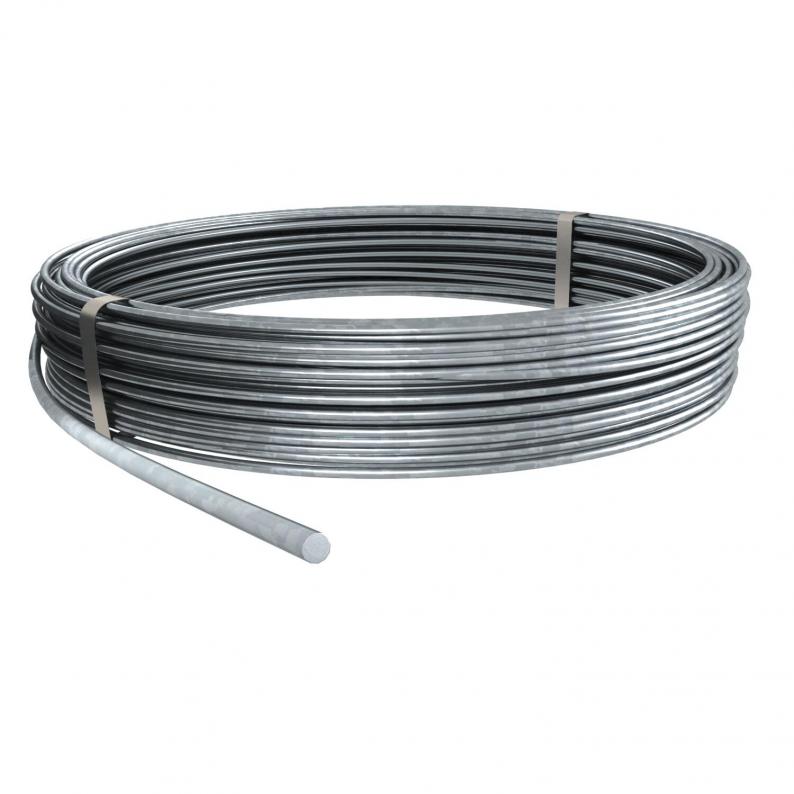

Round conductor, galvanised steel

Type RD 8-FT | Item no. 5021081 | EAN 4012195381556

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

5021081 / RD 8-FT

Normal ring (ca. kg)

Nomal ring (approx. m)

125

Material

Steel

Smallest selling unit: 125 m

Description Technical data Downloads Accessories Variants

Description

• Can be used as a conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• RD 10 can also be used in the earth
• Zinc coating: ≥ 350 g/m² (approx. 50 µm as mean value)

Technical data

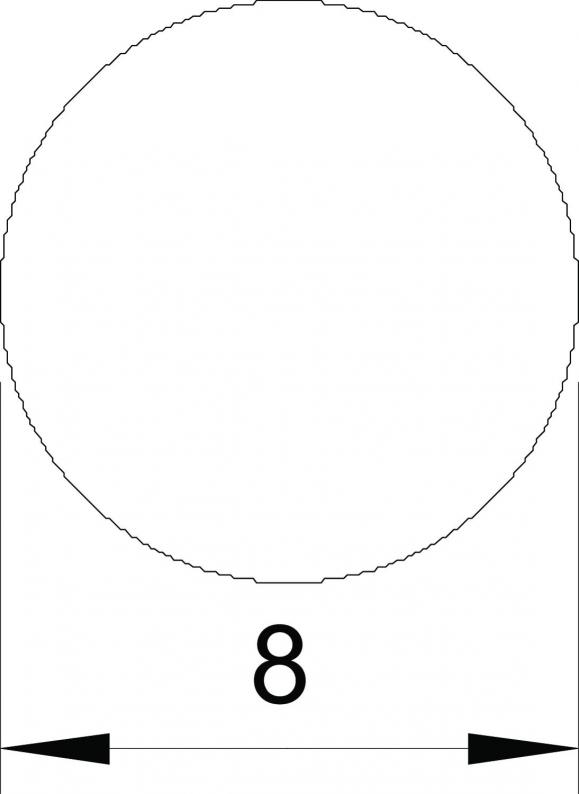

Diameter	8 mm
Normal ring (ca. kg)	50
High voltage-resistant, insulated version	no
Number of individual wires	1
Material property	Miscellaneous
Material jacket	Without
Cross-section	50 mm²
Nomal ring (approx. m)	125
Dimension	8mm
Surface	Hot-dip galvanised
Material	Steel
Length tolerance ±	5 %
