Mounting support ‒ MT4 DBAP2
Type MT4 DBAP2 | Item no. 7428233 | EAN 4012195427728
Item no. / Type
7428233 / MT4 DBAP2
Smallest selling unit: 1 piece
1piece
Description

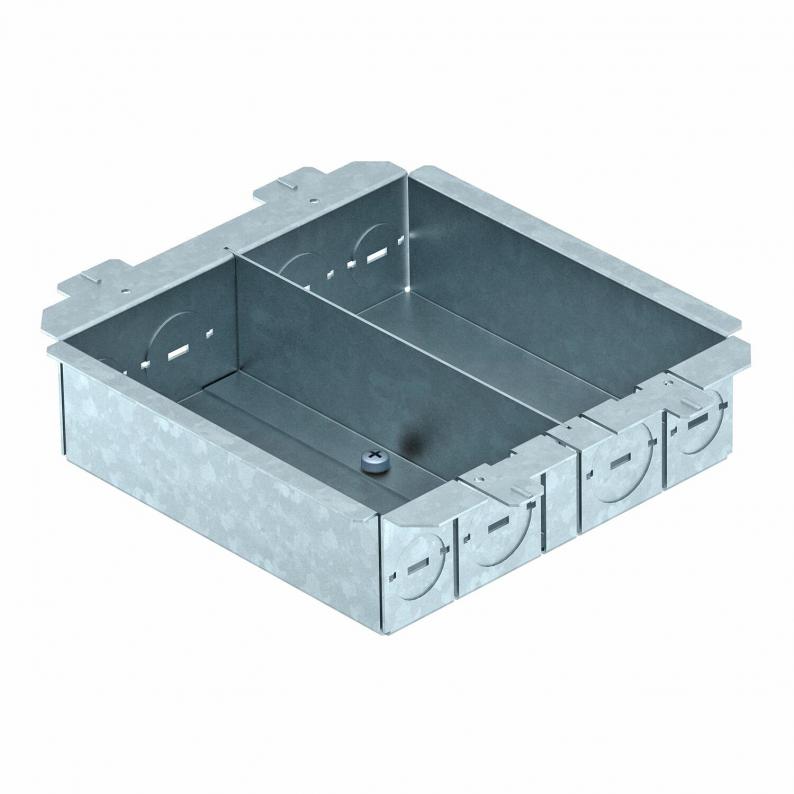

Closed mounting support to accept 2 APMT2 cover plates. The mounting support is fastened below the GES4DB service outlet. Each with 4 knock-out openings M20 and M25 for the mounting of flexible installation hoses.
Technical data
Technical data
| No. of entries | 8 |
|---|---|
| Labelling panel | no |
| Device type | Miscellaneous |
| Number of installable devices | 4 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Installation technology | Miscellaneous |
| Heavy-duty version | no |

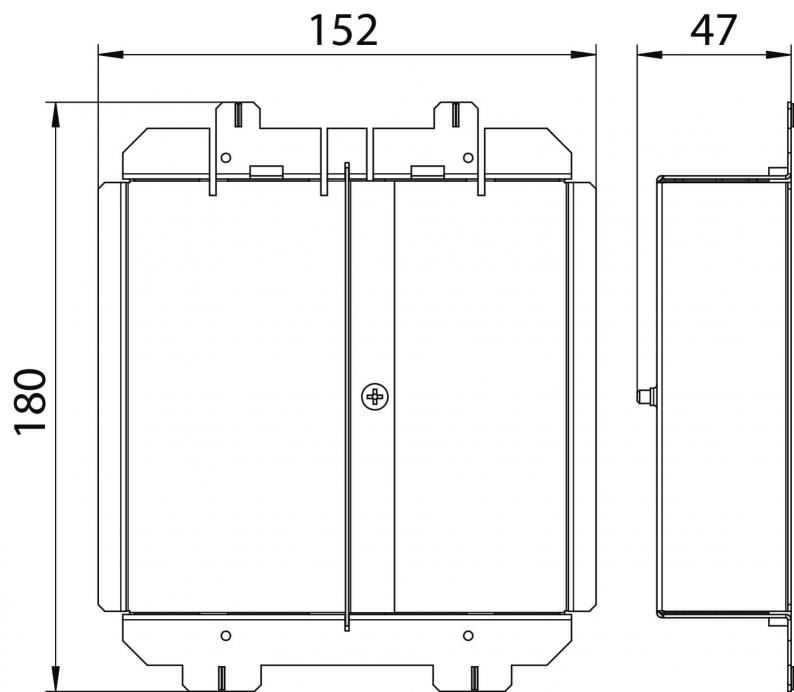

| Dimension | 180x137x41 |
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,6162 kg CO2e / 1 Piece |
