Mounting plate A2
Type MP UNI A2 | Item no. 7085133 | EAN 4012195166320
Item no. / Type
7085133 / MP UNI A2
Smallest selling unit: 1 piece
1piece
Description

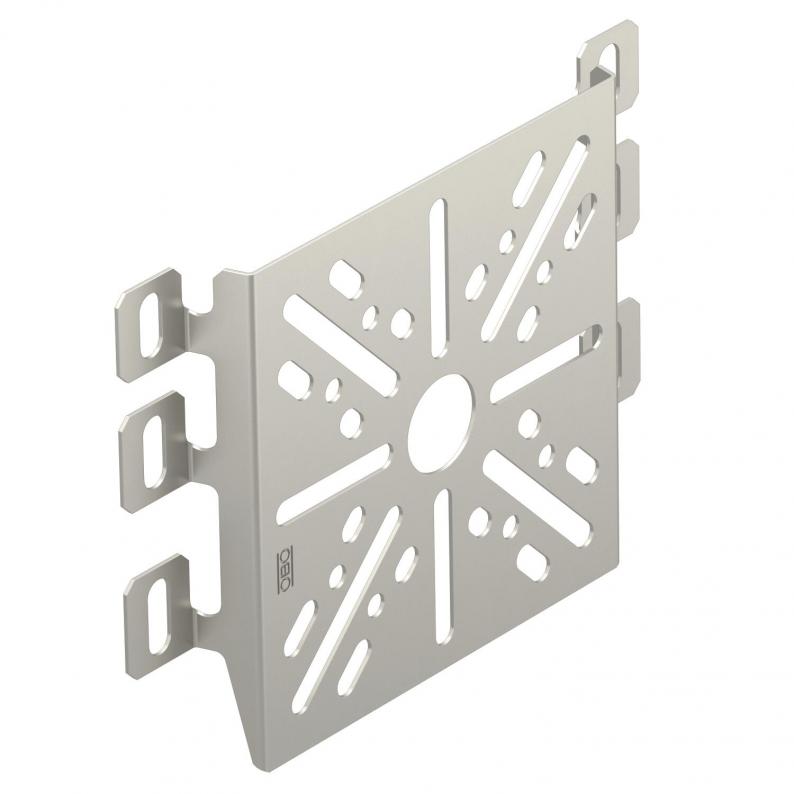

Mounting plate, for fastening on the side rail of cable support systems.
Fastening on the side rail of the mesh cable tray is carried out without bolts by bending the lugs. Fastening on the side rail of cable trays or cable ladders is carried out with two truss-head bolts. Type B9/T junction boxes can be mounted very easily by inserting the bolt plug supplied into the centre hole on the mounting plate.
Please order the bolt, type FRSB 6 x 12, separately.
Technical data

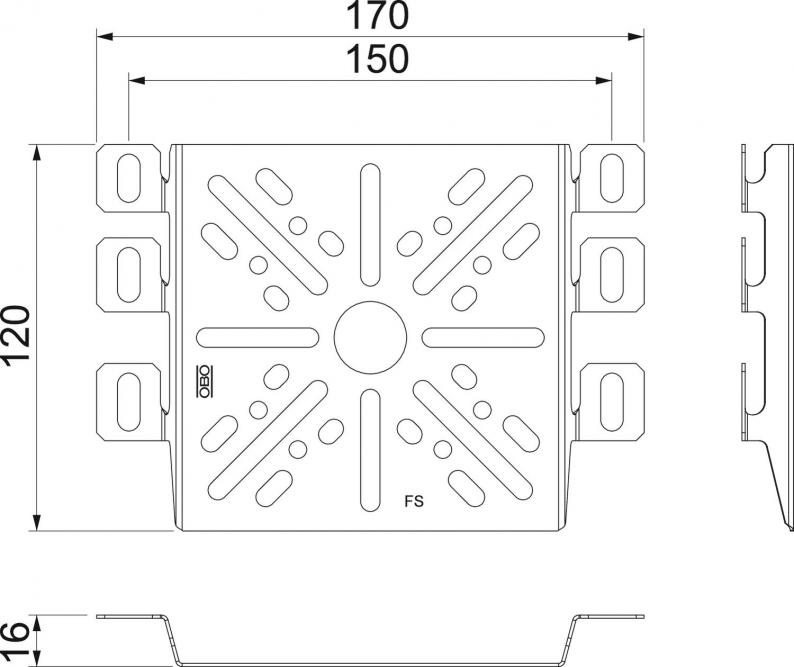

Dimensions
| Width | 170 mm |
|---|---|
| Height | 120 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Plate thickness | 1 mm |
| Fastening type | Screw fastening |
| Version for | Horizontal |
| Dimension | 170x120 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0388 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
