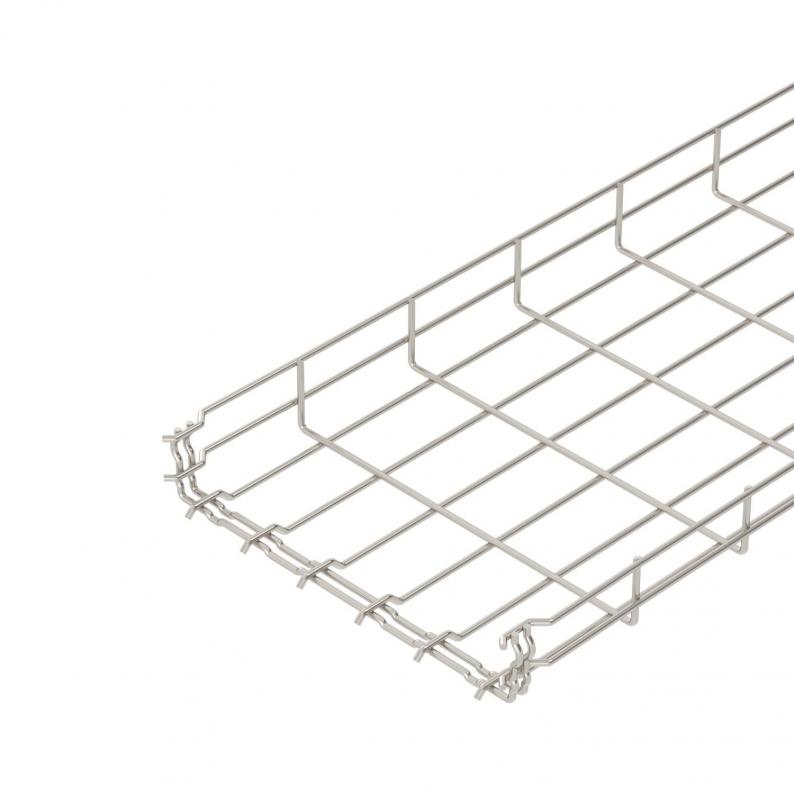

Mesh cable tray GR-Magic® 55 A4

Type GRM 55 300 A4 | Item no. 6001093 | EAN 4012195166078

Data sheet (PDF)

RoHS Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

6001093 / GRM 55 300 A4

Maintain electrical functions

yes

Smallest selling unit: 3 m

Description Technical data Downloads Accessories Variants

Description

Mesh cable tray with shaped connector of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm (exception: GRM 55/50 = 20 x 100 mm).

Technical data

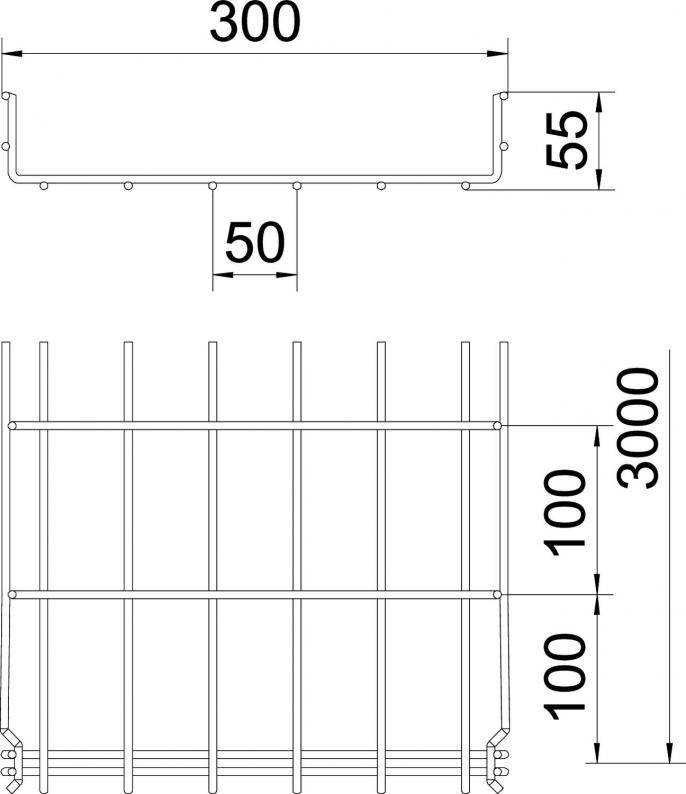

Dimensions

Length	3000 mm
Width	300 mm
Height	55 mm
Dimension B	300 mm
Dimension H	58 mm

Technical data

Maintain electrical functions	yes
Connector version	Integrated connector
Wide-span version	no
Usable cross-section	129 cm²
Rustproof steel, pickled	yes
Usable cross-section	12900 mm²
Integrated partition	Without
Screwless connector	yes
Profile shape	U-shaped
Wire diameter	4,8 mm
Dimension	55x300x3000
Surface	Bright, treated
Material	Stainless steel 1.4401
Colour	stainless steel
Fire protection	Maintenance of electrical function of cable-specific support structure
Load test type according to IEC 61537	Type II
Type of connector, cable support system	Click fastening
CO2 Footprint (GWP) Cradle-to-Gate	9,7685 kg CO2e / 1 Meter
